Cateye PADRONE - Page 3

2
3
4
Appendix
SET
1
3
SENSOR ZONE
SENSOR ZONE
Max.
70 cm
(27”)

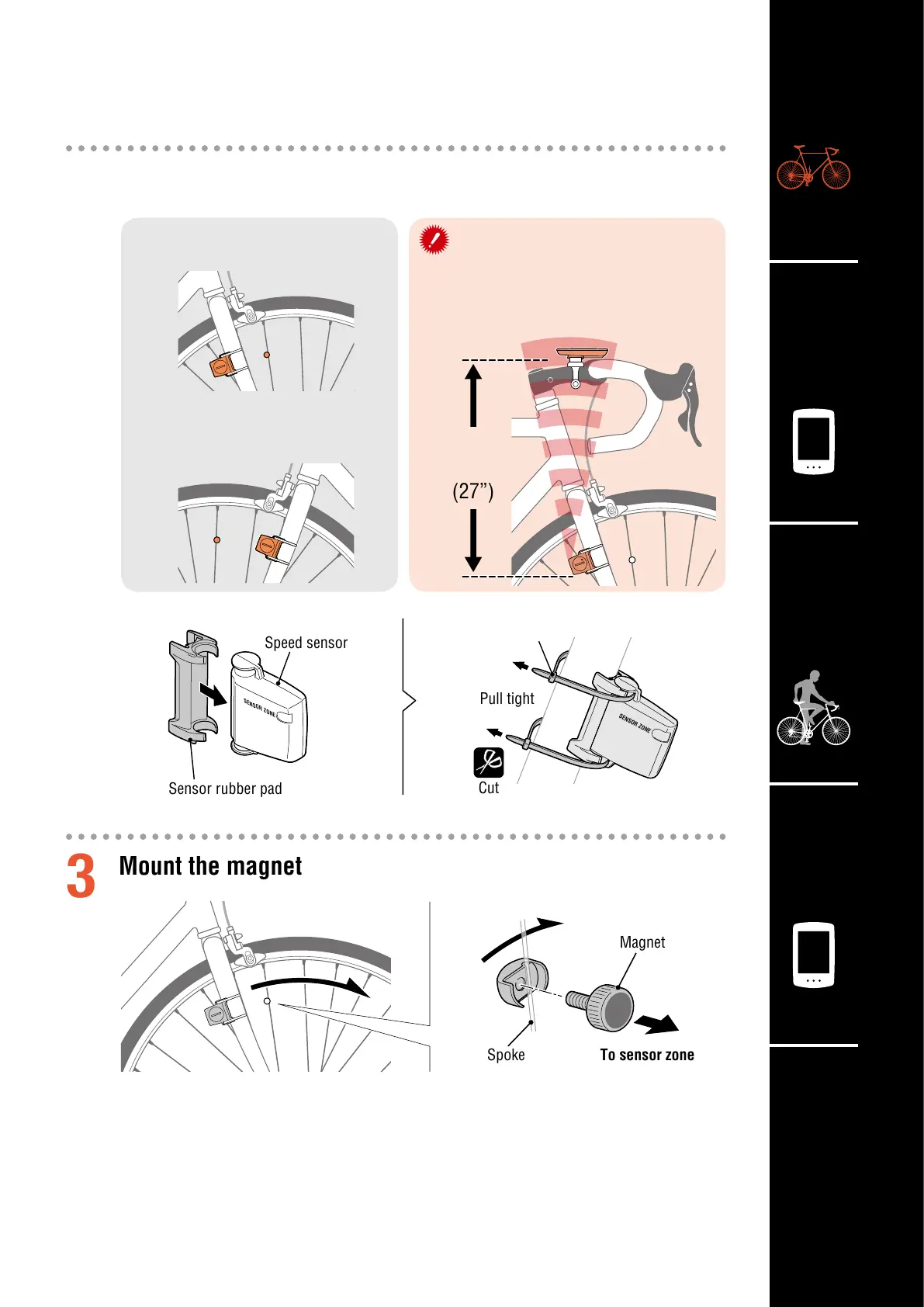

Mounting the computer
2
Mount the speed sensor
Mount the speed sensor in a posi-
tion where the distance from the
computer to the speed sensor is
within the signal range.
3
Mount the magnet
Speed sensor
Cut
Sensor rubber pad
Pull tight
•
Mounting on left front fork
•
Mounting on right front fork
To sensor zoneSpoke
Magnet
Nylon tie
