7) 20A fuse for the auxiliary power supply (solar
regulator), which is directly connected to the
leisure (B2) battery.
3) 10A fuse to give power to the heating/boiler.
6) 30A fuse to give power to 12V AES or 3-way
function fridge. The 3-way function fridge
switches automatically off when the engine is
off.
2) 10A fuse to give power to the water pump.
5) 20A fuse to give power to the lights group “B”.
1) 5A fuse to give power to the awning light.
4) 20A fuse to give power to the lights group “A”.
AUX
B
1
3 5 7 9
2
4 6 8
-B2 +B2 +B1
1 2 3 4
1 2
1
9
8
16
19
17
11
18
14
15
13
222120
12
10
1 A6
1 B6

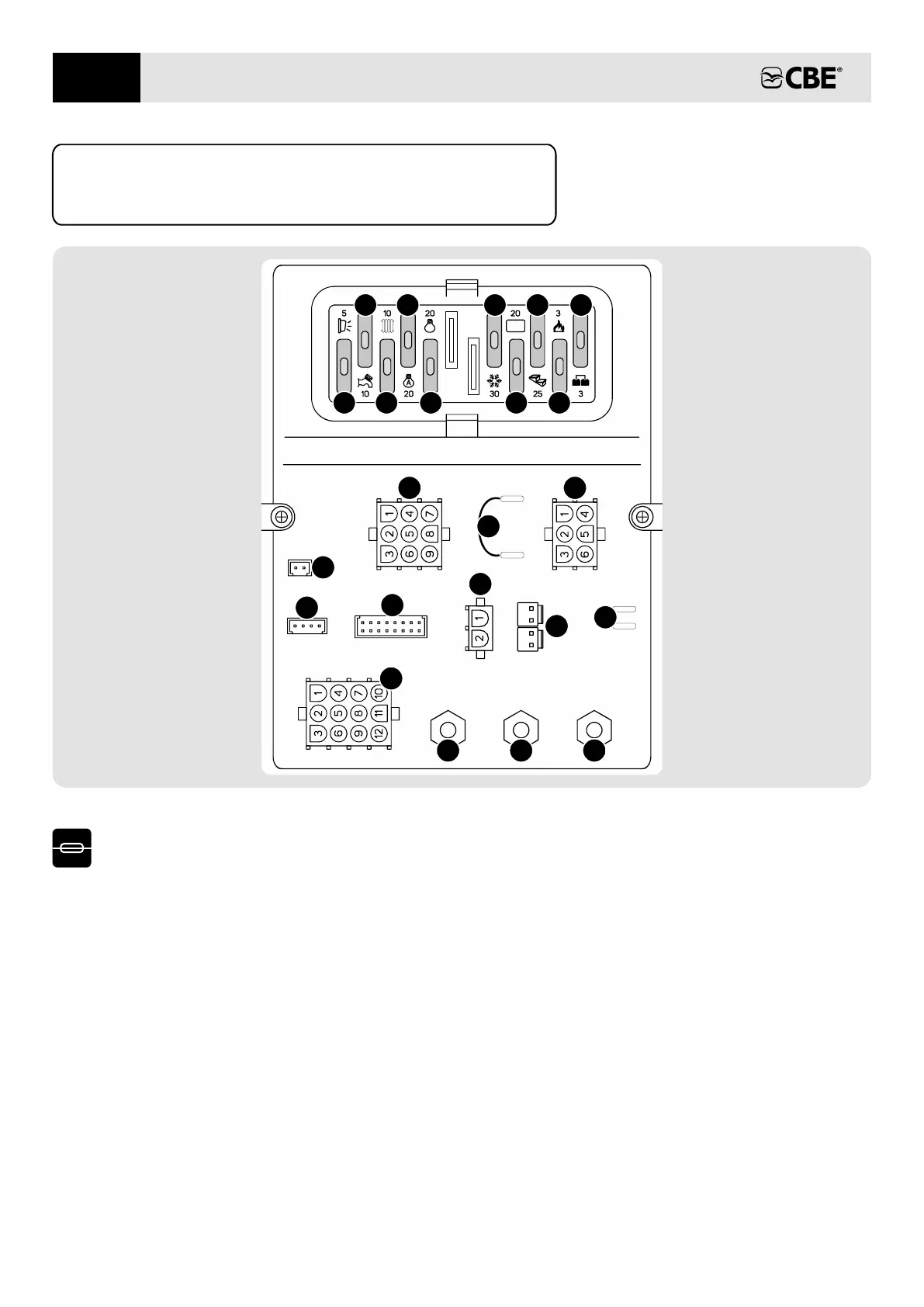

DISTRIBUTION BOX “DS300-ST”
PROTECTION FUSES
11) AES fridge connection; It is a bridge, which
excludes the 3 way function fridge and is used
to connect the AES fridge directly to the B2.
10) 3A fuse for OUT D+ simulated exit protection.
8) 25A fuse for the electrical step power supply,
connected directly to the leisure (B2) battery.
9) 3A fuse for the gas power supply (fridge,
kitchen, boiler valve, etc.), connected directly
to the leisure (B2) battery.
12)
etc.)
Simulated output D+ alternator to control the
electrical step, AES refrigerator, electrical
draining valve, coming-back of the electrical
antenna.
EN
20
