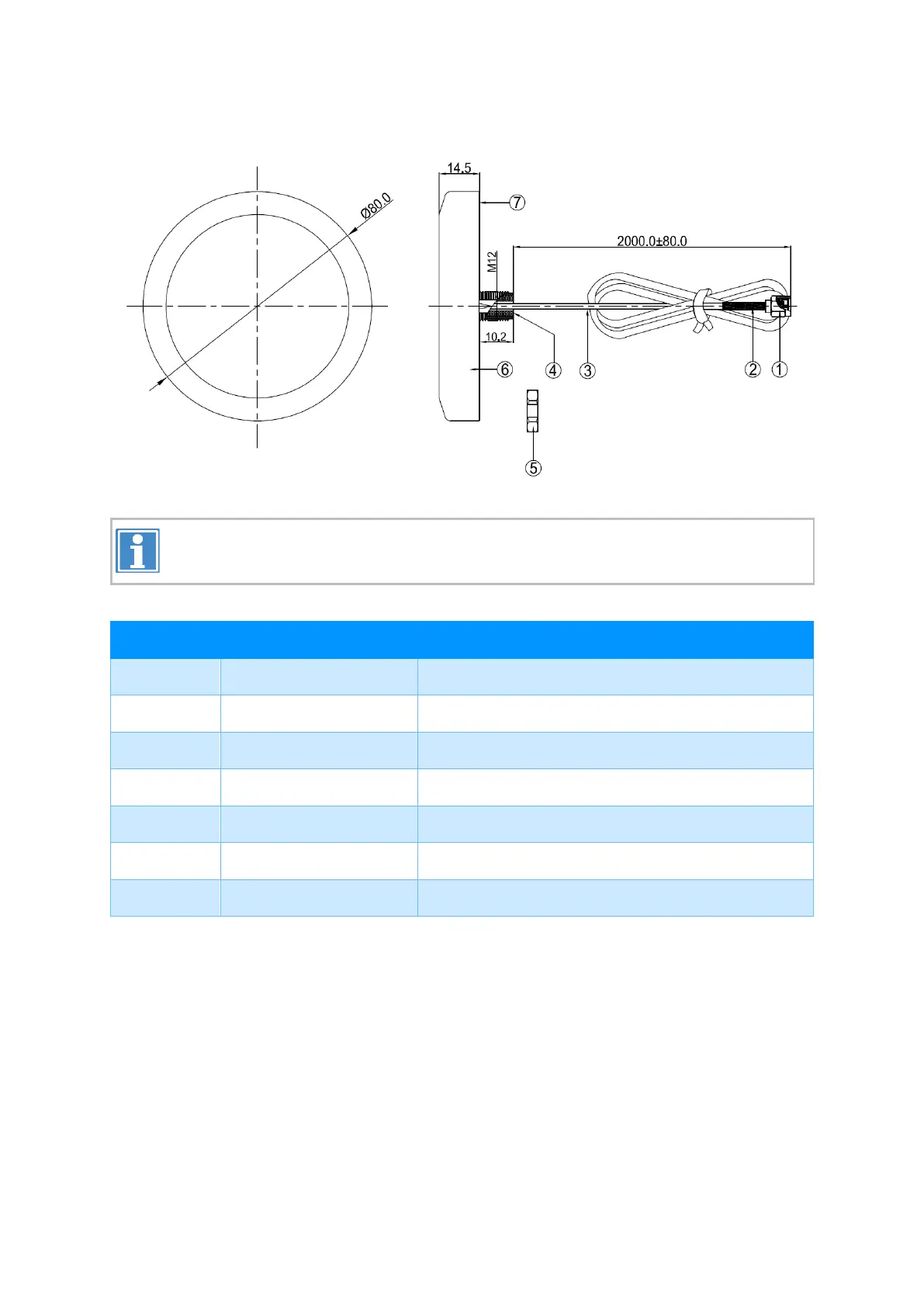

3.2.1 Dimensions LTE Dome Antenna (optional)
NOTICE: Antenna must be installed outside the machine housing for optimum signal reception.
No.
Part name
Description
1
SMA male
CU Au plated
2
Hot shrink tube
L 25.0 mm / ⌀ 3.0 mm black
3
Cable
RG174 black low loss
4
Plastic plug
Plastic plug black
5
Nut
Cu Au plated
6
Antenna cap
⌀ 80.0*14.0 mm black
7
PC black paster
⌀ 79.6*0.2 mm
