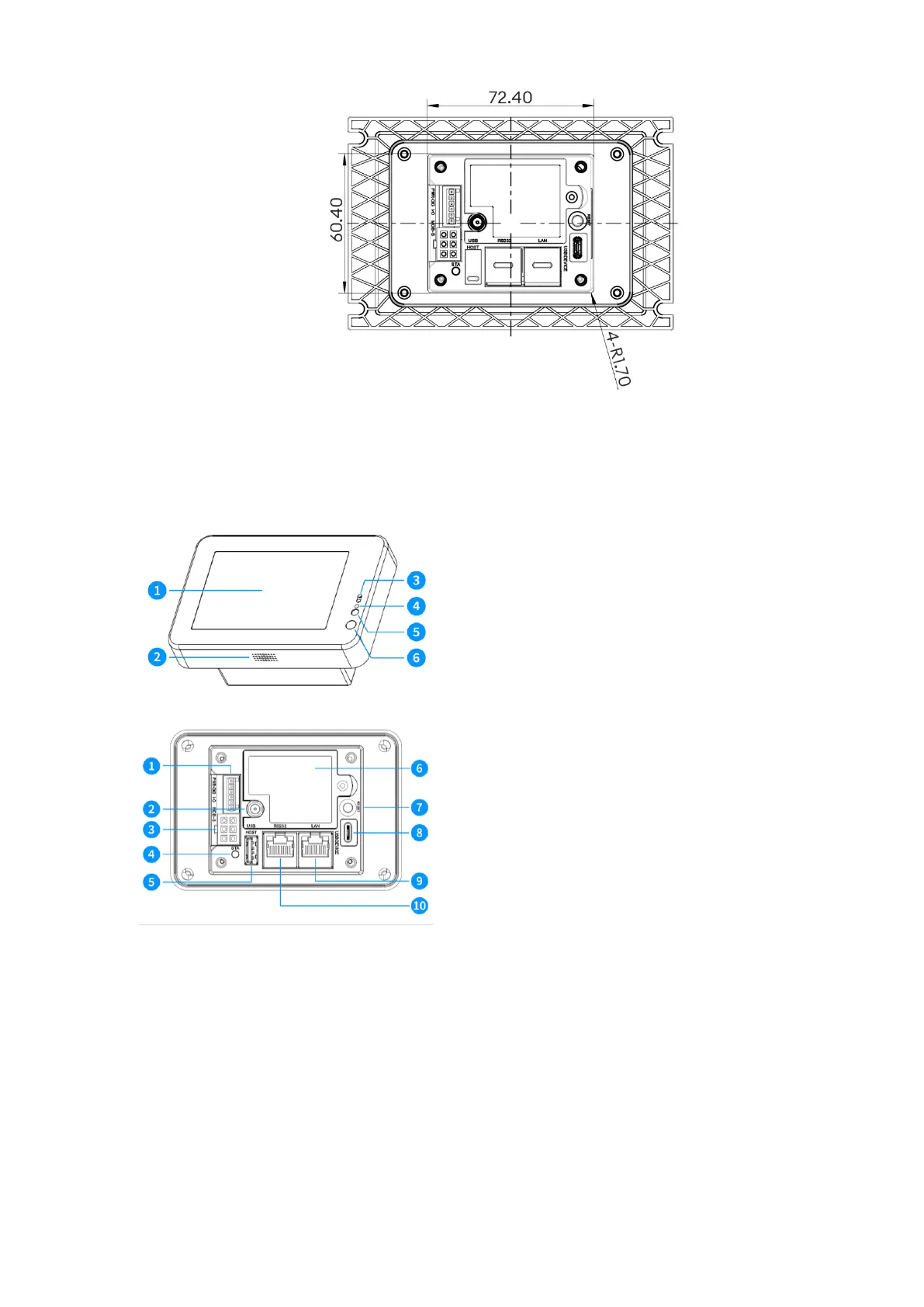

2.2 Components
Note: all components are the same for both CCV Edge IM15 and CCV Frame IM15.
1. LCD touch-screen and NFC reader
2. Speaker
3. Proximity sensor
4. Front LED status indicator
1. Digital I/O port and power connector
2. 4G antenna connector (LTE variants)
3. MDB port
4. Device status LED
5. USB-A port
6. Rear-cover
7. Reset button
8. USB-C port
9. RS-232 (RJ-45) port
10. LAN (RJ-45) port
