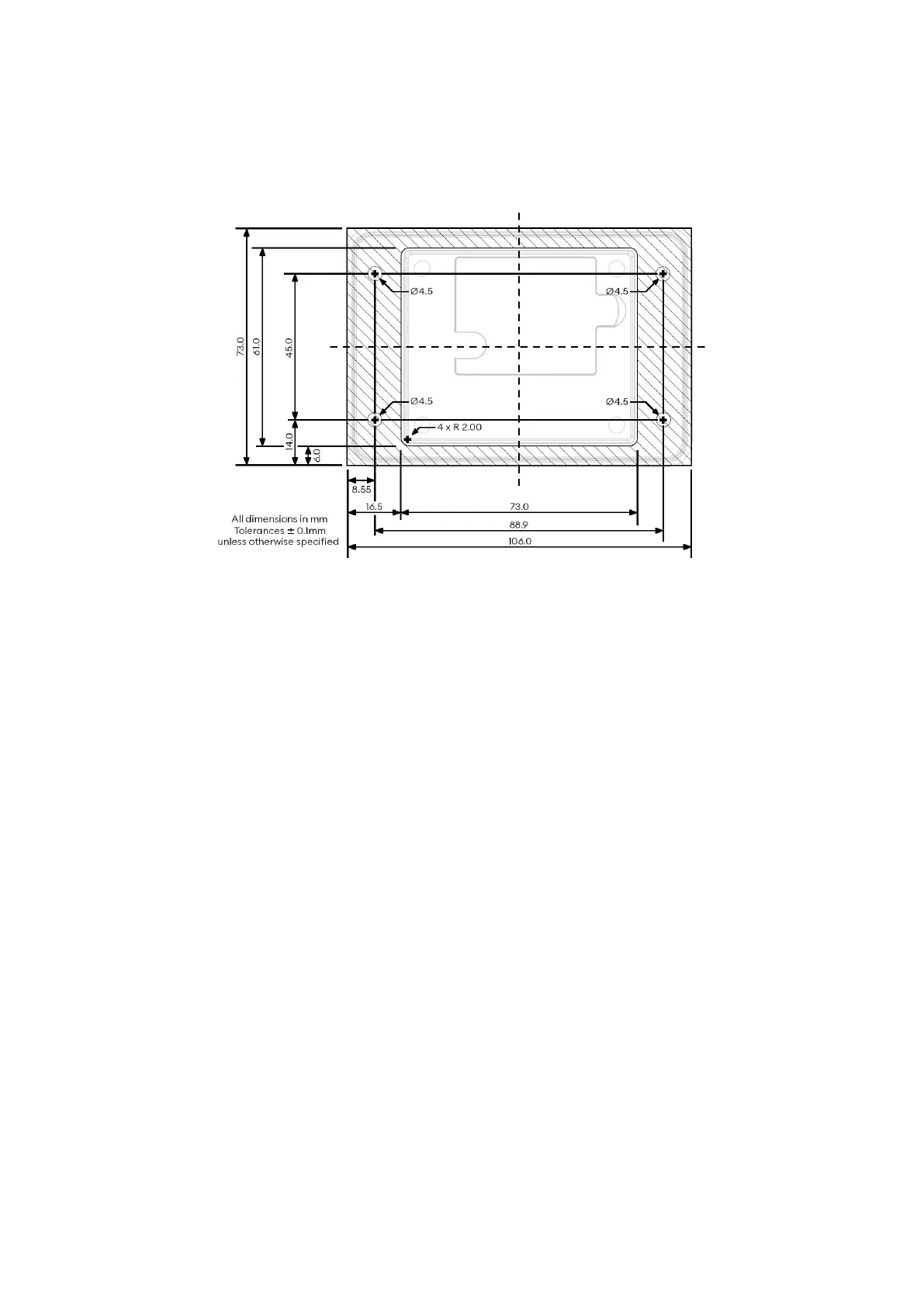

5.3 EVA EPS CDM cut-out (landscape or portrait)
The product is compatible with the EVA EPS CDM (Compact Door Module) cut-out, as defined by the EVA
(European Vending & Coffee Service Association) EPS (Electronic Payment Specification) standard for
assembly in landscape or portrait orientation.
5.4 EVA EPS SDM cut-out
While it is also possible to install the CCV Edge IM15 using an EVA EPS SDM (Standard Door Module) cut-out,
CCV does not provide an adapter frame for the product. Please consult the EVA standard documentation for
required dimensions for such adapter plate.
The CCV Frame IM15 cannot be installed in the EVA EPS SDM cut-out.
