6.3 LAN

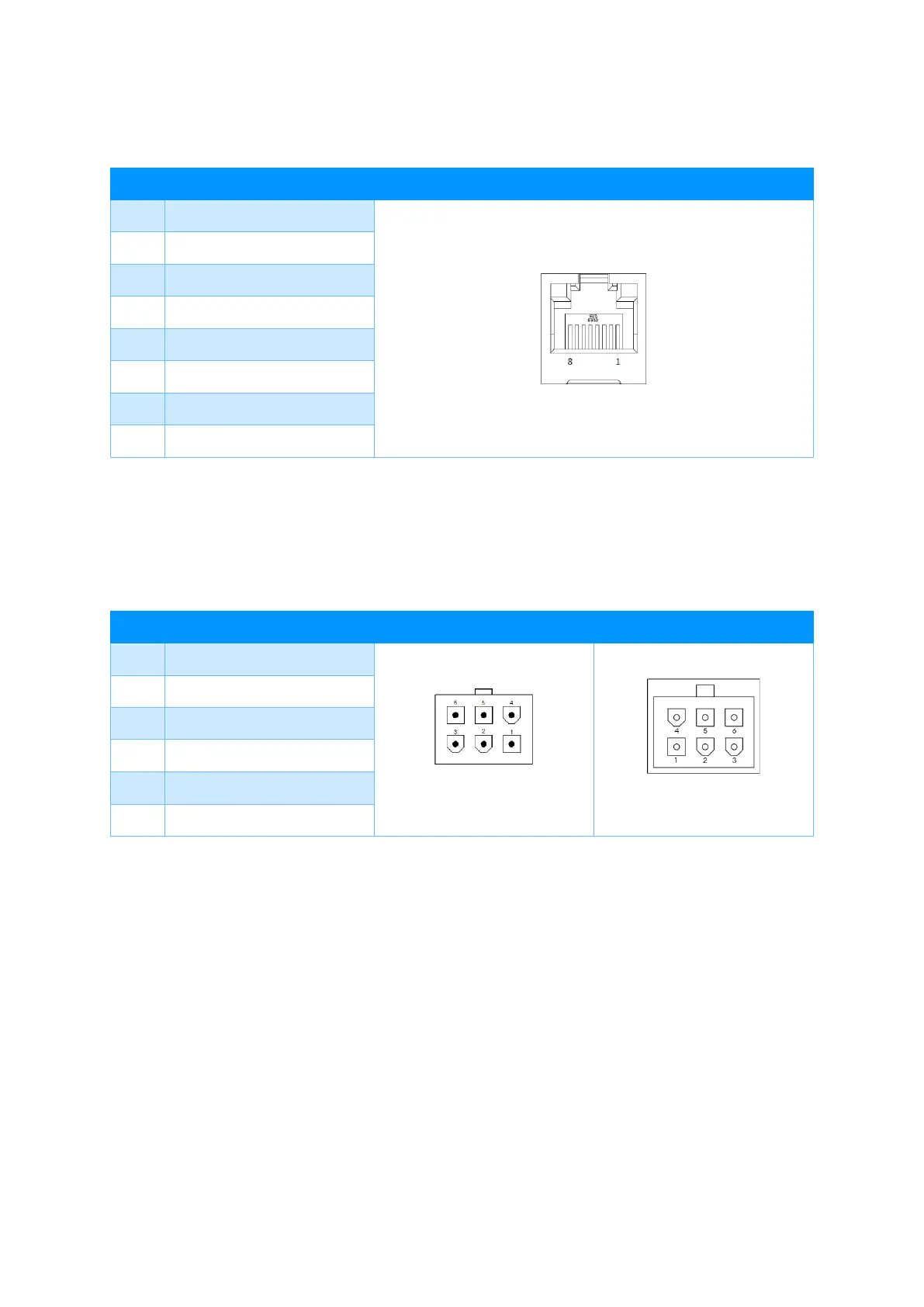

The product has an Ethernet 10/100 Base-T port for LAN connectivity:
Pin
Signal
Connector
1
TX+
2
TX-
3
RX+
4
NC
5
NC
6
RX-
7
NC
8
NC
6.4 MDB
Multidrop Bus (MDB) is a communication protocol commonly used in the vending machines.
The product has a MDB port that can communicate to a vending machine controller as well as accept an input
voltage of 9V to 42V.
Pin
Signal
Connector
1
MDB PWR IN
Connector on device
Connector on cable
2
MDB PWR GND
3
MDB-Wake Up
4
MDB-Master Receive
5
MDB-Master Transmit
6
MDB-Com Common
