A22K
High Security Access Control 2-Door Module

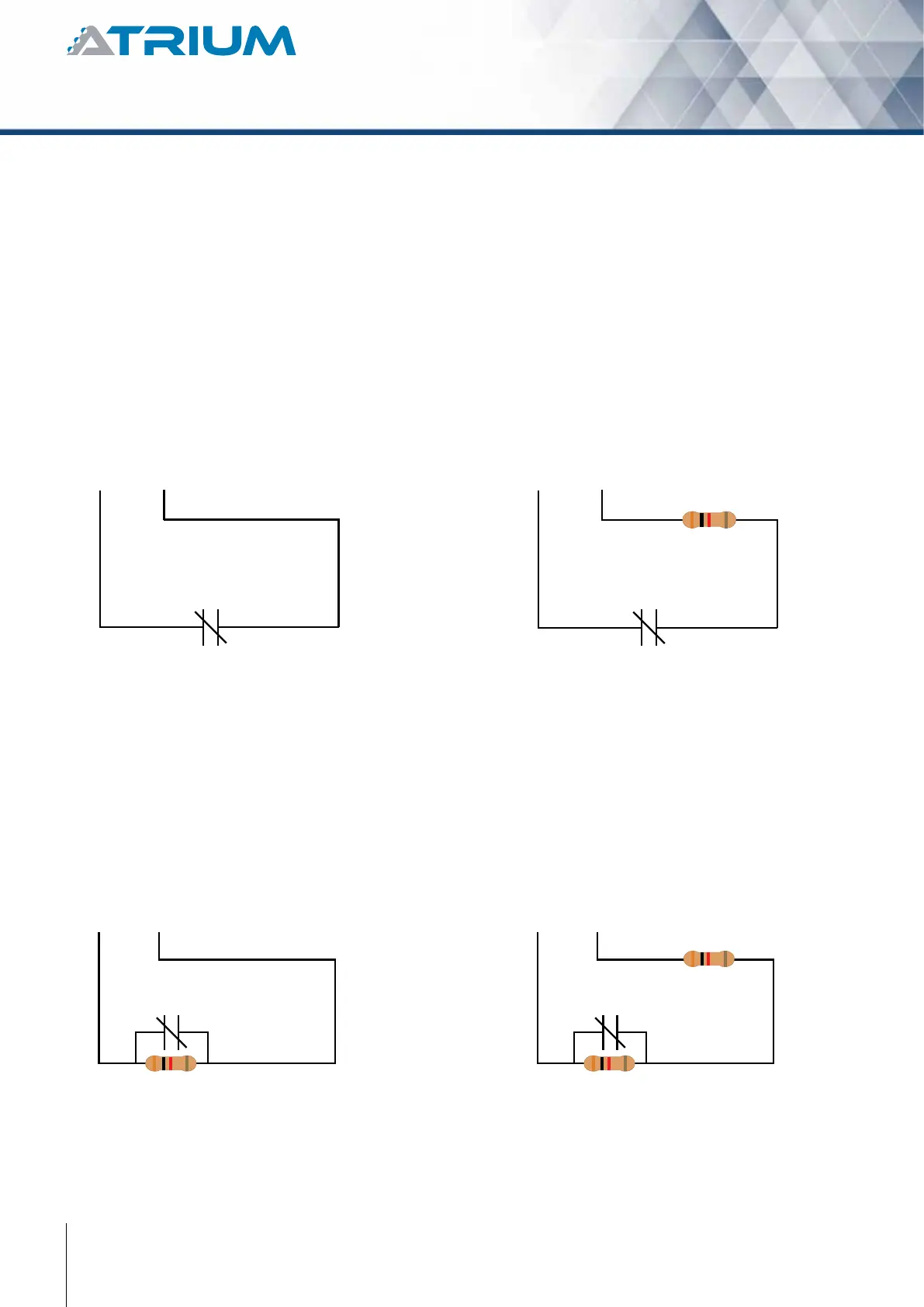

Single (1 Detection Device per Input)
When using this method, only one device is detected by the input. Normally open or normally closed
devices can be used. Normally closed circuit shown below.
Here are the dierent options for a single input conguration:
Single
Input 1
GNDC1
1K
Input 1
GNDC1
Input 1
GNDC1
1K
EOL
1K
EOL
1K
Input 1
GNDC1
SHORT CIRCUIT supervision: No
WIRE CUT supervision: No
SHORT CIRCUIT supervision: No
WIRE CUT supervision: Yes
SHORT CIRCUIT supervision: Yes
WIRE CUT supervision: No
SHORT CIRCUIT supervision: Yes
WIRE CUT supervision: Yes
