A22K
High Security Access Control 2-Door Module
Doubled (2 Detection Devices per Input)

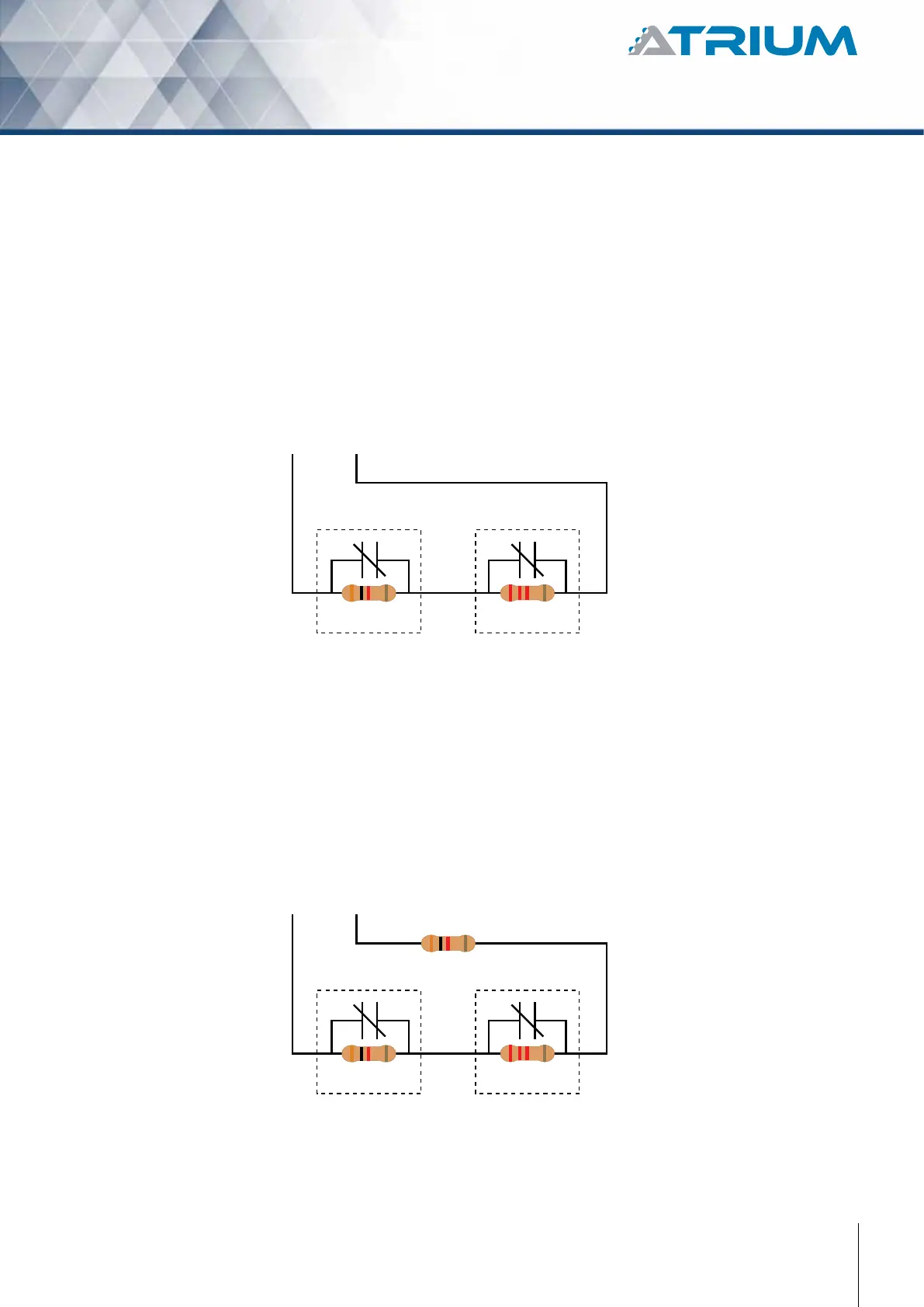

When using this method, two devices are detected by the input. Normally open or normally
closed devices can be used. Normally closed circuit shown below.
Here are the dierent options for a double input conguration:


1K 2.2K
Input 1
GNDC1
Input 7
1K 2.2K
Input 1
GNDC1
Input 7
1K
EOL
SHORT CIRCUIT supervision: No
WIRE CUT supervision: Yes
SHORT CIRCUIT supervision: Yes
WIRE CUT supervision: Yes
