Cebora PLASMA PROF 162 - 5.3 Fuse Board (8) Code 5.602.025

CEBORA S.p.A. 27
3.302.002 03/08/00
5.3 - Fuse board (8) code 5.602.025.

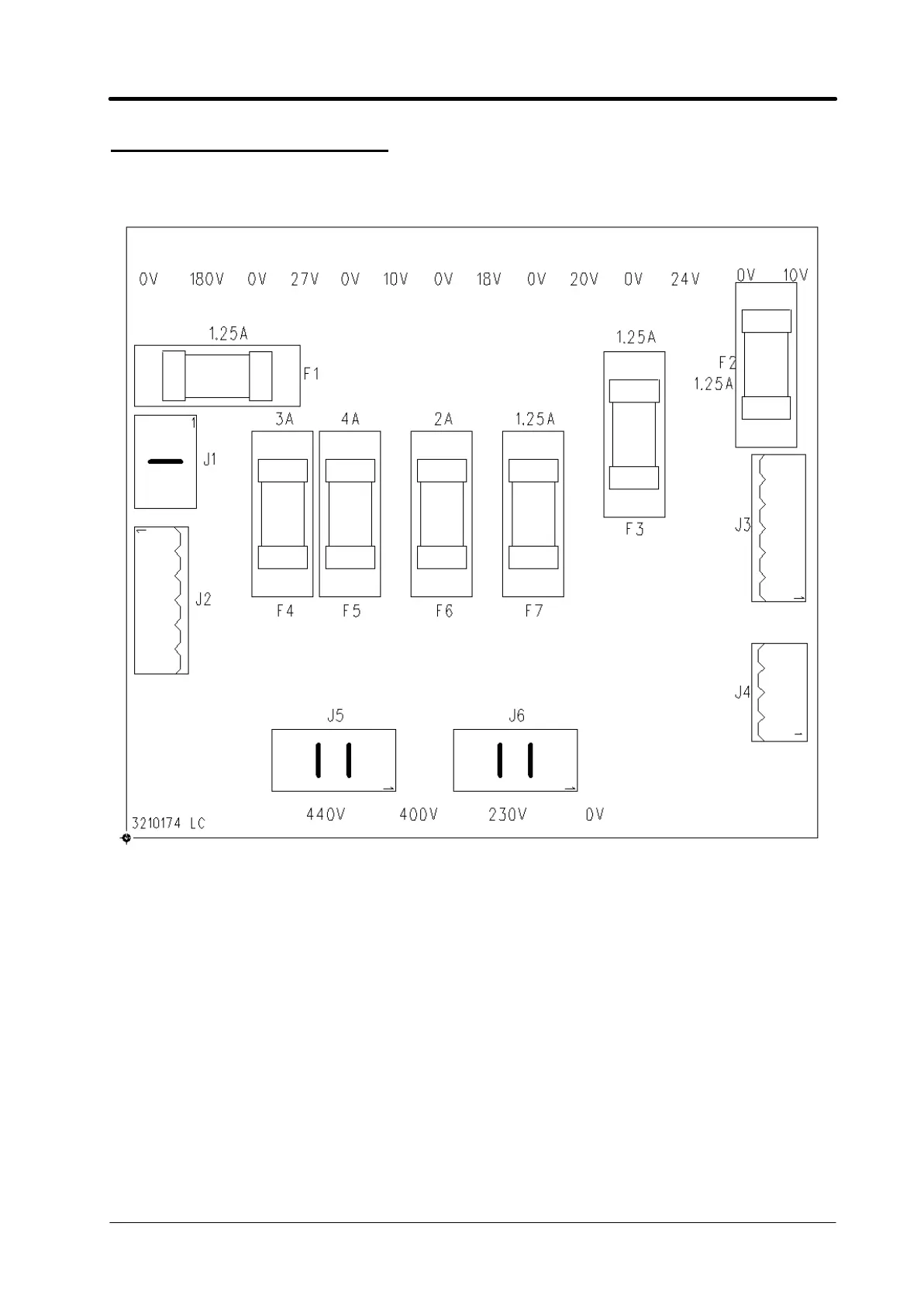

5.3.1 - Topographical drawing.
5.3.2 - Connector and fuse table.
Connector Terminals Fuse Value Function
J1 A – B F1 1,25 A 180 VAC capacitor pre-charge output (40).
J2 1 – 2 F6 2 A 18 VAC driver board power supply output (9).
J2 5 – 6 F7 1.25 A 20 VAC IGBT driver board power supply output on board (9).
J3 1 – 2 F3 1.25 A 24 VAC output torch board power supply (68).
J3 5 – 6 F2 1.25 A 10 VAC HF board power supply output (15).
J4 1 – 2 F4 3 A 10 VAC control board power supply output (62).
J4 3 – 4 F5 4 A 27 VAC AC auxiliary power supply output.
J5 A - - 400 VAC service transformer power supply phase input.
J5 B - - 440 VAC service transformer power supply phase input.
J6 A - - 230 VAC service transformer power supply phase input.
J6 B - - 0 VAC service transformer power supply phase input.
