Cebora PLASMA PROF 162 - 5.7 HF Board (15) Code 5.602.024

CEBORA S.p.A. 31
3.302.002 03/08/00
5.7 - HF Board (15) code 5.602.024.

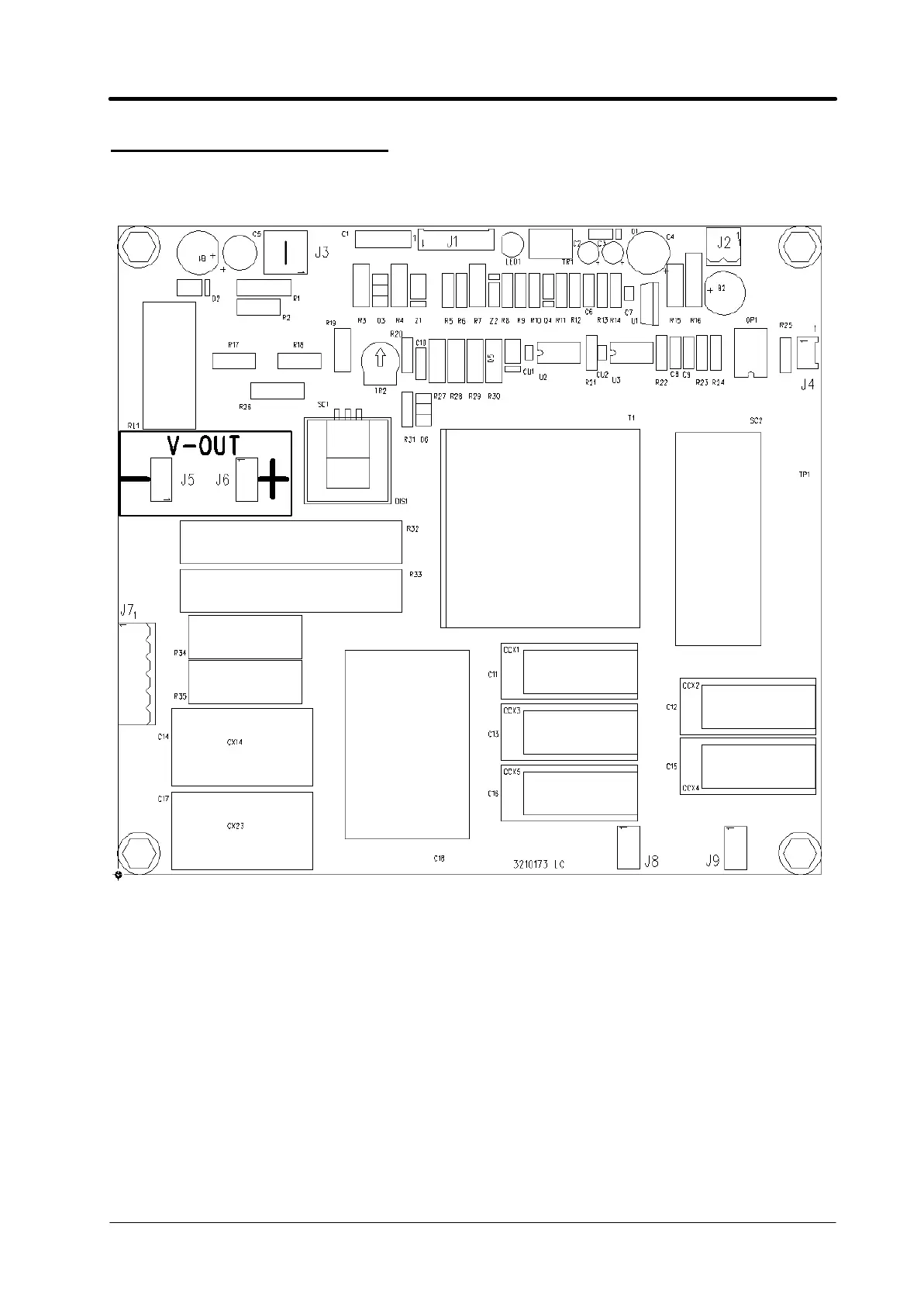

5.7.1 - Topographical drawing.
5.7.2 - Connector table.
Connector Terminals Function
J1 1 – 2 "hazardous voltage" output.
J1 5 – 6 PWM “electrode finished” output.
J2 1 – 2 HF board power supply input (15).
J3 A - B internal HF cut-out input.
J4 1 – 2 "electrode finished" digital reference input.
J5 - output voltage output, electrode potential.
J6 - output voltage output, earth potential + power source (n.u.).
J7 1 output voltage input, nozzle potential.
J7 4 output voltage input, electrode potential.
J7 1 output voltage input, earth potential + power source.
J8-J9 - HF transformer primary circuit output (69).
