CEBORA S.p.A. 33
3.302.002 03/08/00
5.9 - Operator panel board (64) code 5.602.028.

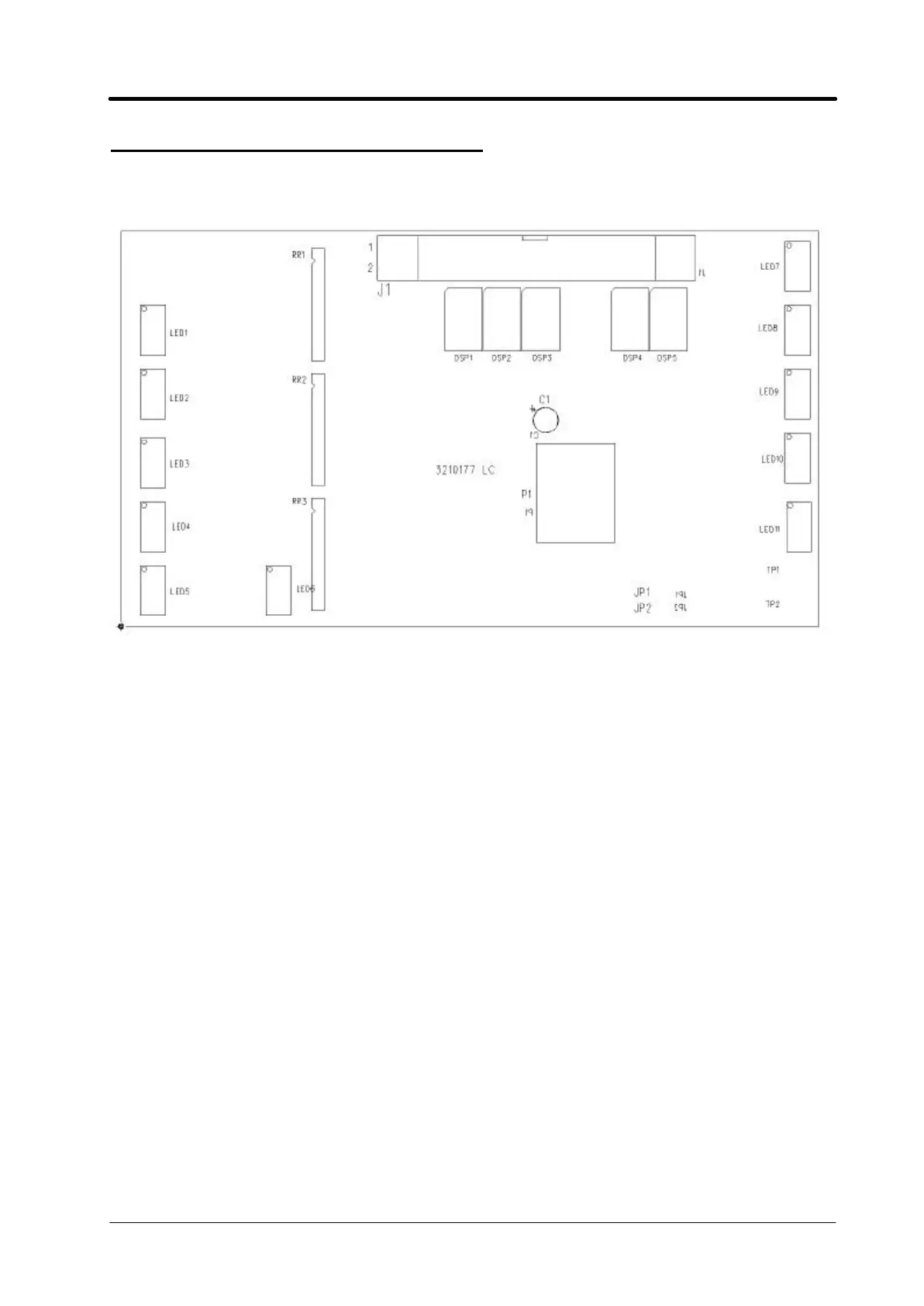

5.9.1 - Topographical drawing.
5.9.2 - Connector table.
Connector Terminals Function
J1 1 - 34 inputs/outputs from control board (62).
