5.6 - Driver board (9) code 5.602.023/A.

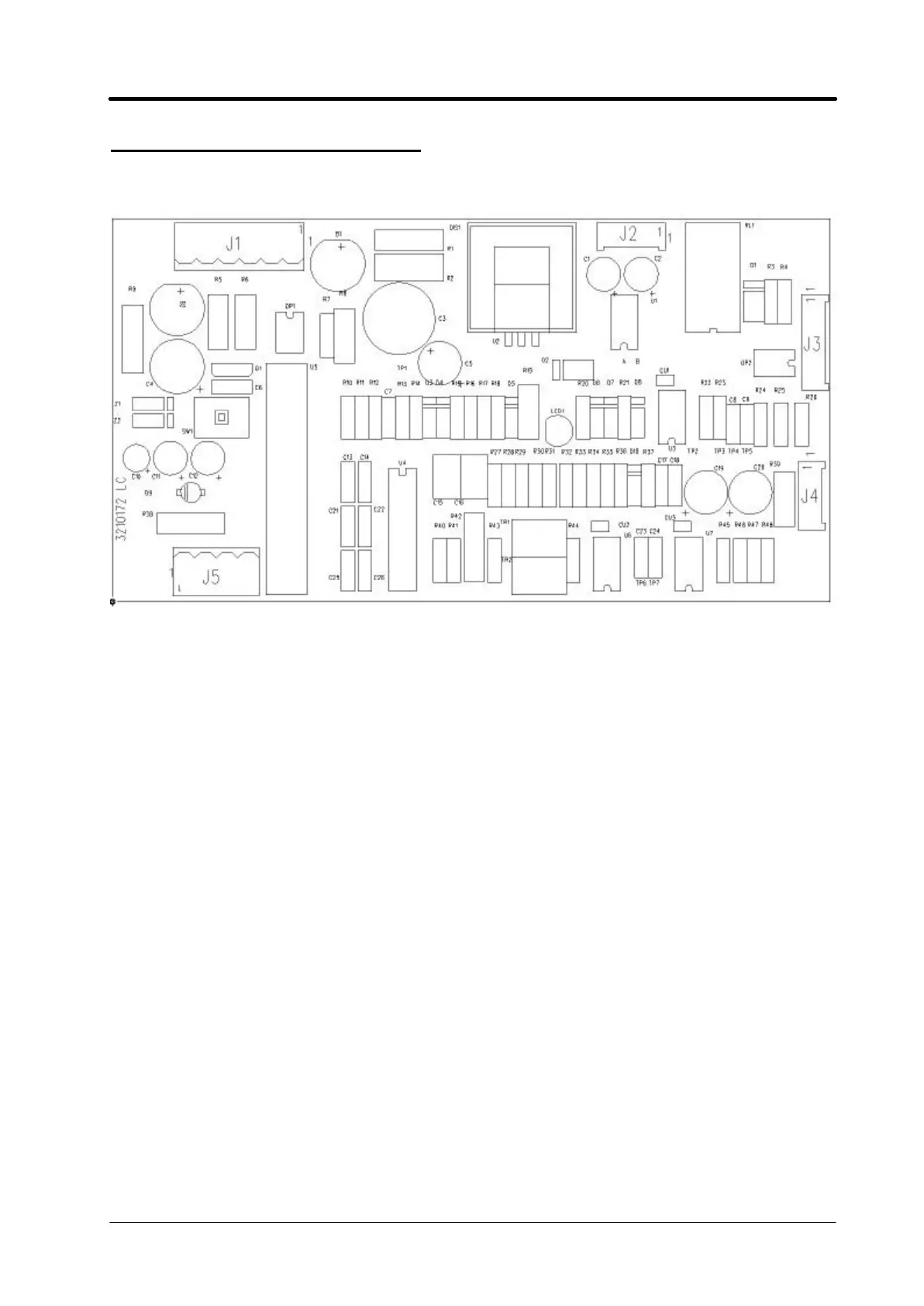

5.6.1 - Topographical drawing.
5.6.2 - Connector table.
Connector Terminals Function
J1 1 – 2 18 VAC driver board power supply input (9).
J1 5 – 6 20 VAC IGBT driver power supply input.
J2 1-3-4 block output from driver board (9).
J3 1 – 2 current set-point PWM input.
J3 1 – 3 IGBT driver command input.
J3 5 – 6 block output from driver board (9).
J4 1-2-3-4 current reaction input from transducer (71).
J5 3 - 4 IGBT command output (72).
