Cebora PLASMA PROF 162 - 5.8 Torch Board (68) Code 5.602.022;A

CEBORA S.p.A. 32
3.302.002 03/08/00
5.8 - Torch board (68) code 5.602.022/A

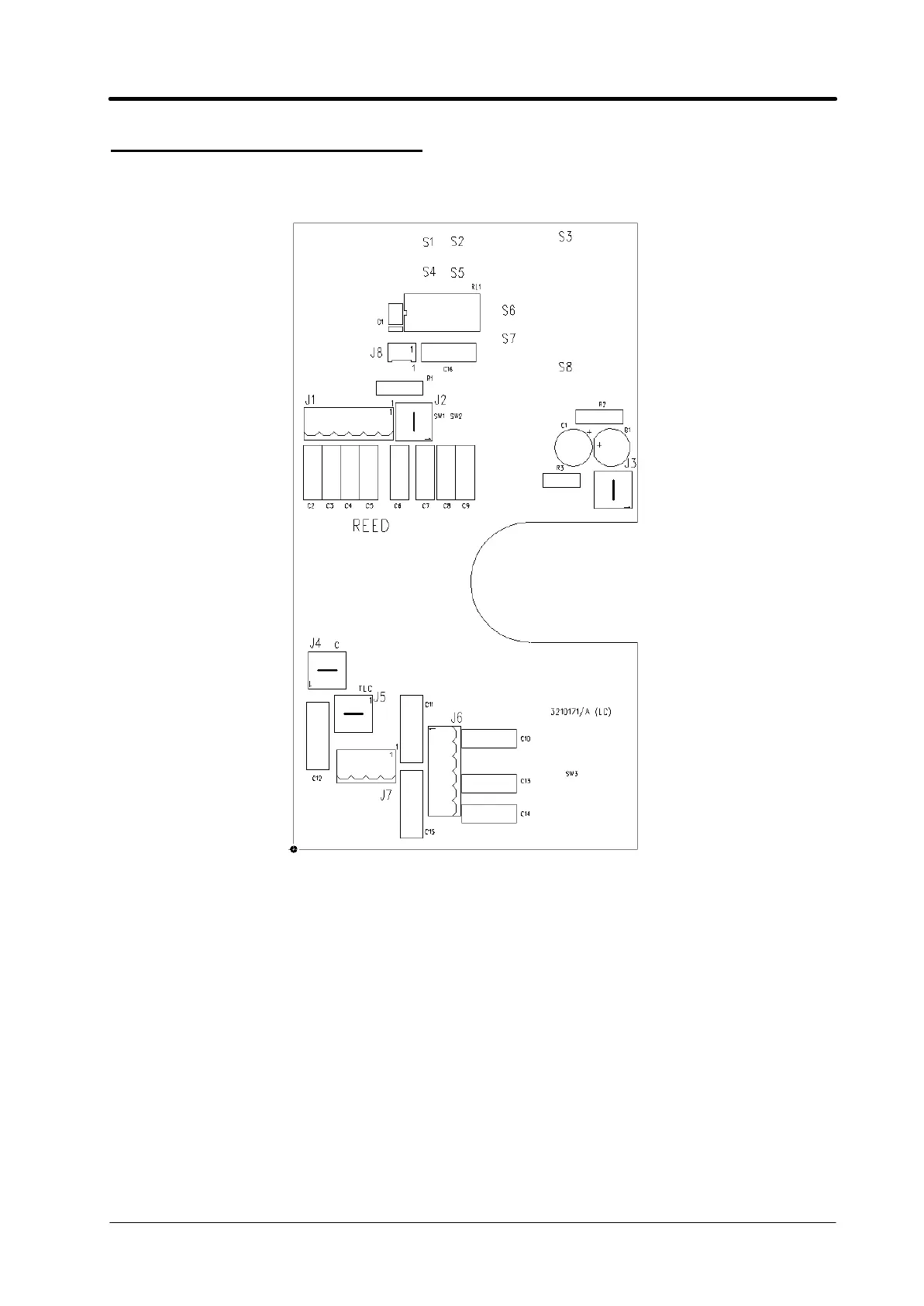

5.8.1 - Topographical drawing.
5.8.2 - Connector table.
Connector Terminals Function
J1 2-3-4-5 torch recognition input.
J2 A - B start input from torch button.
J3 A – B torch board power supply input (68).
J4 AB nozzle power source voltage output.
J5 AB input voltage from power source, nozzle potential.
J6 1 output voltage output, nozzle potential for HF board (15).
J6 4 output voltage output, electrode potential for HF board (15).
J6 6 output voltage output, earth potential + power source for HF board (15).
J7 1 output voltage input, electrode potential.
J7 4 output voltage input, earth potential + power source.
J8 A - B start input from remote control.
S1-S2-S4-S5 torch recognition outputs (shielded cable).
S7-S8 start command output ( shielded cable).
