System Installation
NOTE

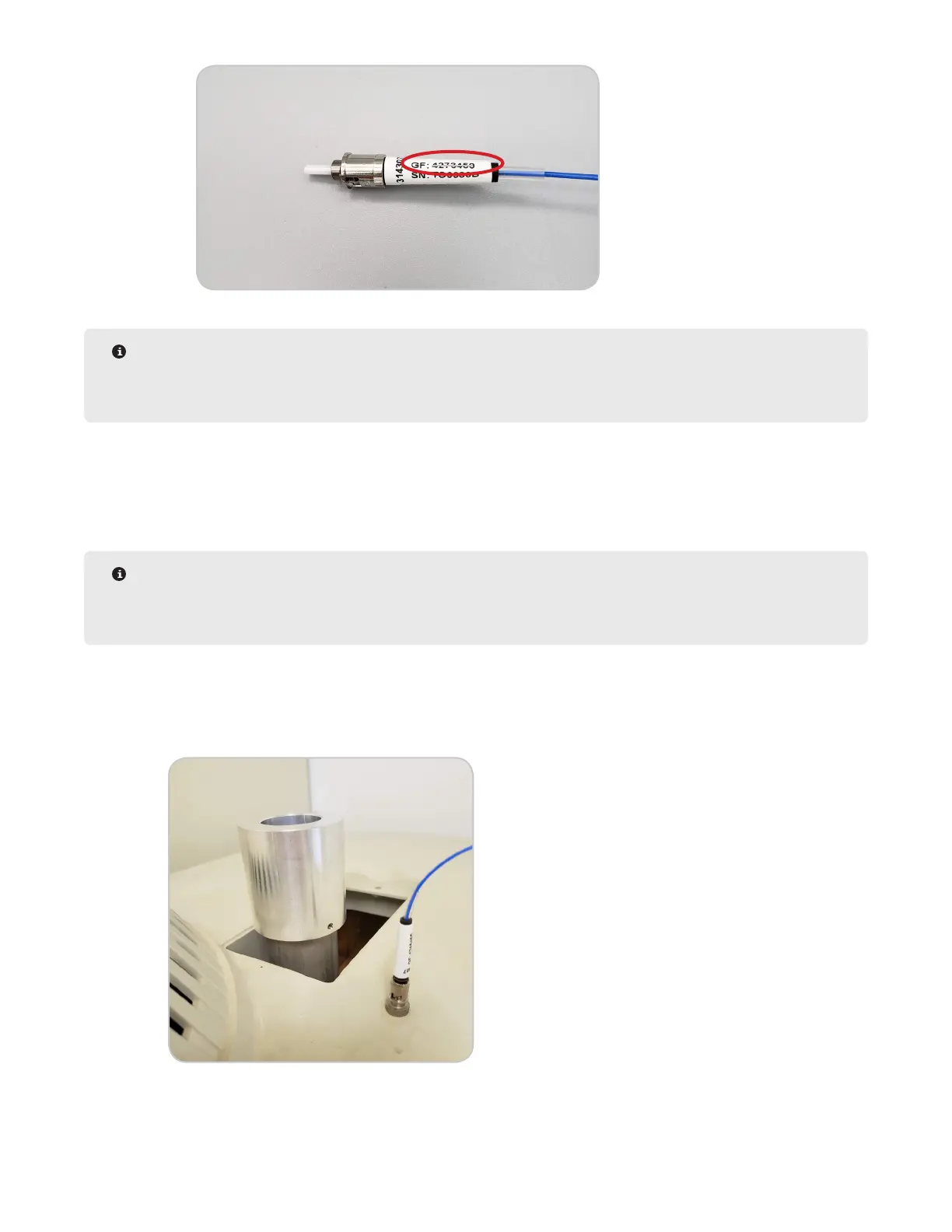

Always ensure that the number on the probe and the number in the software are the same. If a new probe
is installed, then a new GF number will need to be saved.
9.2.6. Once the number is properly entered, select “hide” to close the keyboard.
9.2.7. Save the GF number by selecting the Save icon located at the top right corner of the screen.
9.2.8. The current ber optic temperature reading is located above the GF. Verify the temperature reading
at room temperature.
NOTE
If “---” appears as the temperature, then the MARS 6 does not recognize the Fiber Optic Probe. The probe
is either not installed or is not working properly.
9.2.9. The probe can be inserted into a beaker of warm water for temperature verication.
9.2.10. Press the Home icon in the lower left corner of the screen to return to the Home page.
10. Install the I/O Port Extension.
10.1. Press the I/O Port extension on top of the current I/O port.
10.2. Install the thumb screw to hold the port in position.
11. System Setup is complete.
