Use and maintenance manual
Machine description
It is used to balance the wheels of cars, vans, 4-WD, motorcycles and scooters. The wheels must weigh less than 75
kg. and, when fitted on the balancing machine, must not interfere with any fixed part of the machine, excluding
the shaft and support adaptor. The machine is supplied with equipment enabling the vast majority of car wheels
available on the market to be fitted. Other wheels with special dimensions, geometry and centring require special
adaptors supplied on request (consult the attached sheet “ORIGINAL ADAPTORS”). The machine can operate
only on flat non resilient floor.
Do not mount anything other than motorbike, car or truck tyres on the wheel balancer.
Thanks to the new and exclusive VDD (Virtual Direct Drive)
system, reliable unbalance measurements can be made in a
short time, almost half the time of the cycle used with respect to other balancers in this range.
2.1 TECHNICAL SPECIFICATIONS
The following data refers to the balancer in its standard
configuration.
Single-phase power supply 115 / 230 V 50/60 Hz
Protection class IP 54
Rated power 0,15 kW
Balancing speed 100 min
-1
Cycle time for wheel 4.7 s (5 3/4”x14”) 15 kg
Measurement uncertainty 1 g
Average noise < 70 dB (A)
Rim width setting range 1.5” ÷ 20” or 40 ÷ 510 mm
Diameter setting range 10” ÷ 30” or 265 ÷ 765 mm
Maximum wheel weight < 75 kg
Machine weight 110 kg
2. Machine description

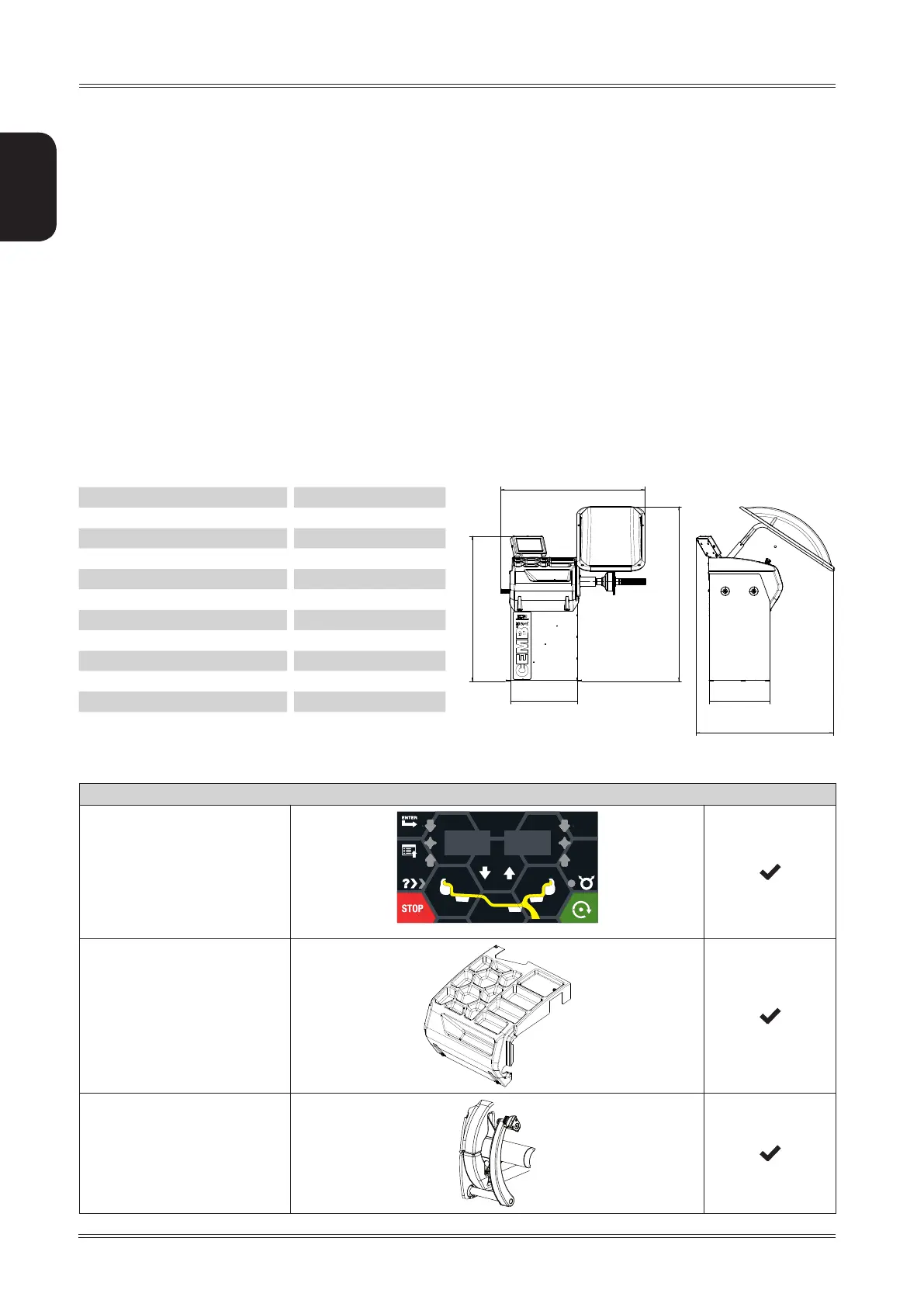

2.2 DIMENSIONS
2.3 COMPONENTS
TOUCH CONTROL PANEL
WEIGHT-TOOL HOLDER
AUTOMATIC GAUGE
