PRODUCT IDENTIFICATIONSECTION 3
3. Product Identication

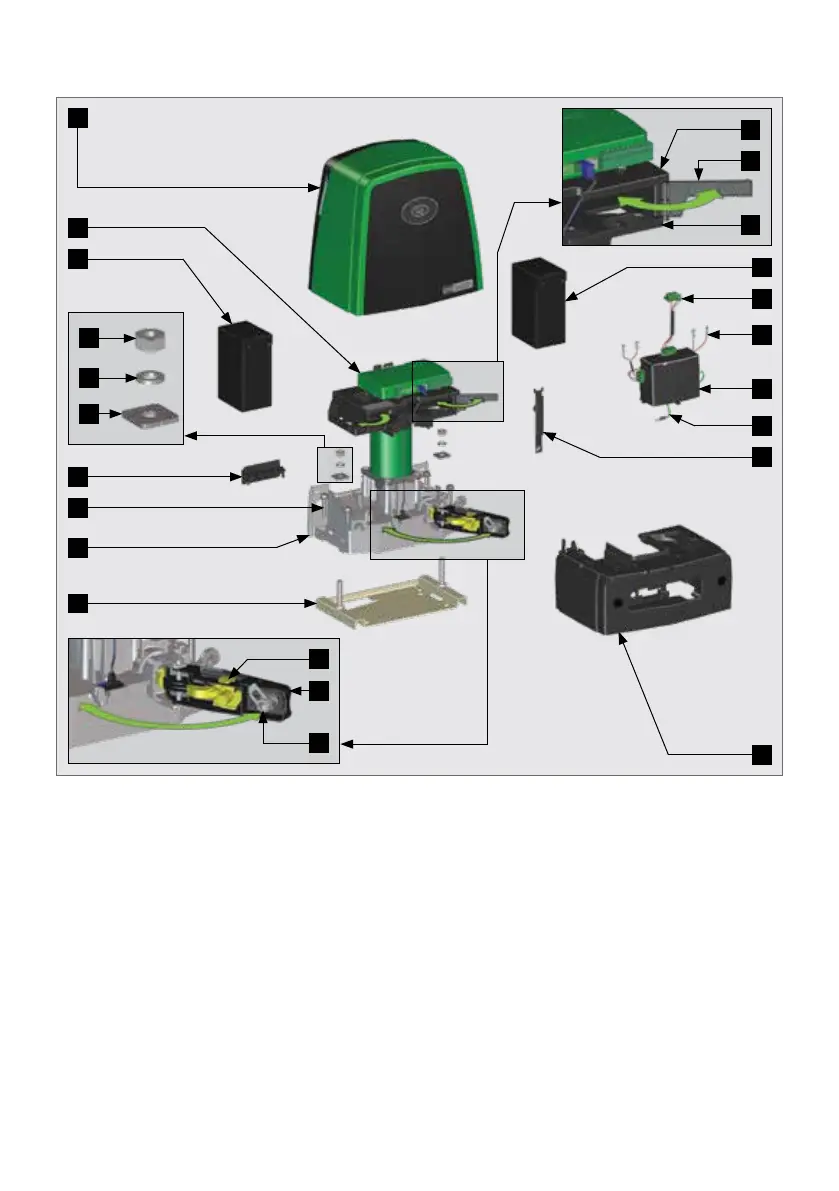

FIGURE 2. PRODUCT IDENTIFICATION
1
2
3
7
8
9
10
12
11
13
15
16
17
18
19
3
22
21
20
6
5
4
14
1. D10 SMART/ D10 Turbo SMART /
D20 SMART Cover
2. DX Control Card
3. 7.2Ah 12V Battery
1
4. M10 Nut
5. Spring Washer
6. Gearbox Mounting Washer
7. Cable Shield
8. Hex Height Adjustment Bolt (x4)
9. Die-cast Aluminium Gearbox
10. Foundation Plate
11. Override Cam
12. Release Handle
13. Camlock
14. Gearbox Trim
15. Cable Trunking
16. Earth Harness
17.
Switch-mode Charger 27.4V 1.8A
18. Battery Harness
19. Power Supply Harness
20. Top Battery Stabiliser
21. Accessory Retaining Door
22. Accessory Tray
1. Batteries are not supplied with the D10 SMART / D10 Turbo SMART / D20 SMART.
