OPERATOR INSTALLATIONSECTION 7
7.10. Re-assembling the D10 SMART / D10 Turbo SMART /
D20 SMART
7.10.1. Placing the Gearbox Trim and Charger back into Position
Ensure that the Manual Override Lever is in the open position, and slide the Gearbox
Trim into position. Whilst doing this, route the Earth harnesses through. A click from both
sides will be heard if the tray is tted correctly.
Ensure that the Camlock is in the "locked" position and that the Manual Override
Lever is open to the 90° position.

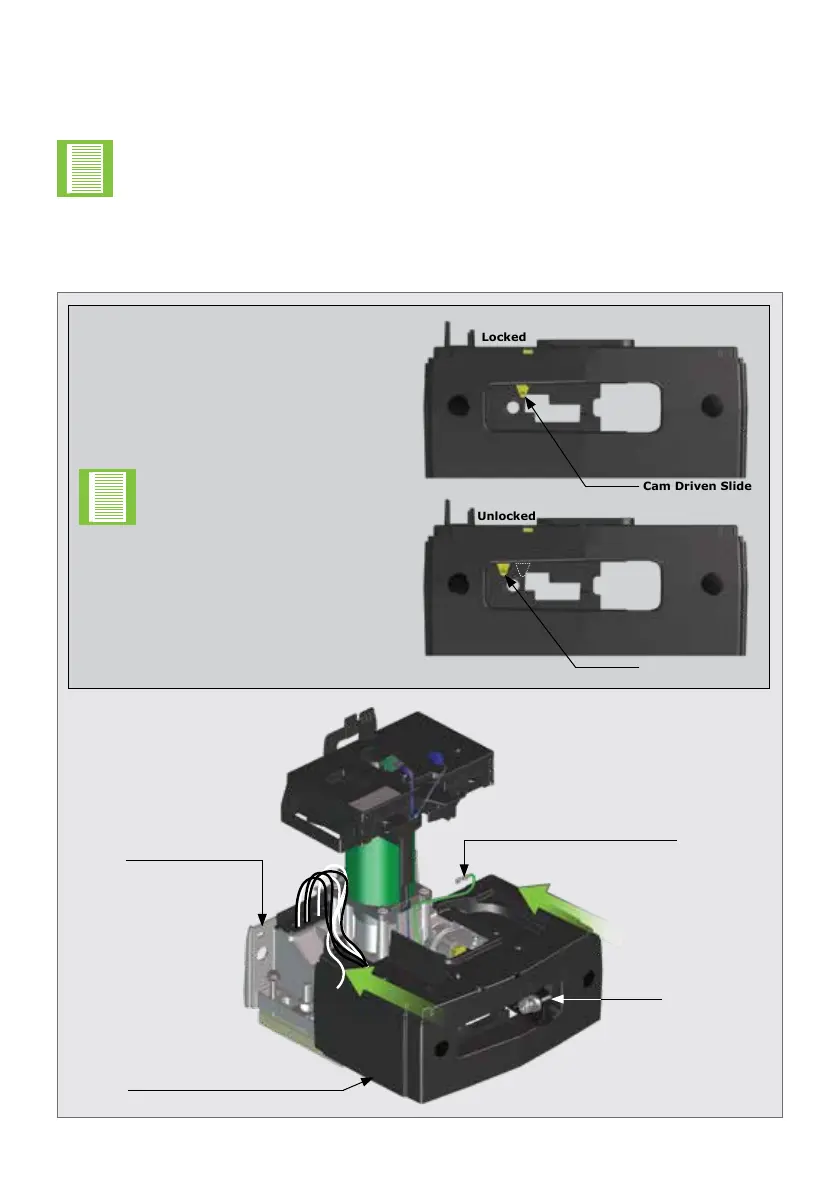

FIGURE 51. GEARBOX TRIM PLACEMENT
Gearbox
Trim
Manual Override
Lever
Earth Harness
Gearbox
Locked
Unlocked
Ensure that the Cam Driven
Slide is in the correct
position before placing the
Lower Battery Tray back into
the Gearbox.
i.e. Push it to the left.
Refer to Section 7.4 -
"Preparing the Operator
for Installation" for further
information on locked and
unlocked positions
Cam Driven Slide
Cam Driven Slide
