CENTURION SYSTEMS D20 SMART - Mounting the Origin Marker Onto the Steel Rack

page 42 www.centsys.com

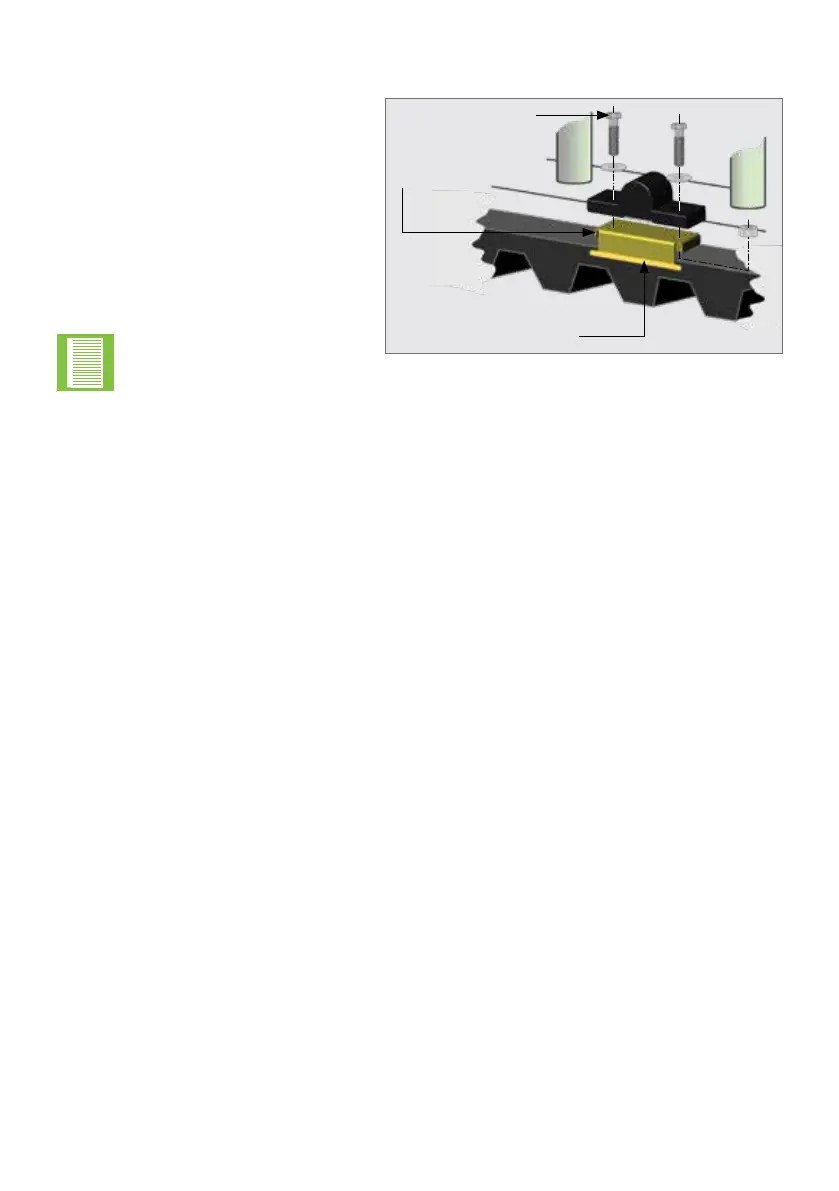

FIGURE 64
Weld Mounting Bracket
provided to the Steel Rack
Bolt using fasteners
provided
Origin Marker
Bracket
For Steel Rack, mount the Origin
Marker onto the Rack using the
bracket provided.
Weld the bracket to the Rack.
Bolt the Origin Marker onto the
Bracket using the fasteners
provided.
7.11.3. Mounting the Origin Marker onto the Steel Rack
OPERATOR INSTALLATIONSECTION 7
Ensure that the Origin
Marker is within +/- 10mm
of the Origin Sensor in the
vertical plane.
