CENTURION SYSTEMS D20 SMART - Removing the Control Card

page 29 www.centsys.com
OPERATOR INSTALLATIONSECTION 7

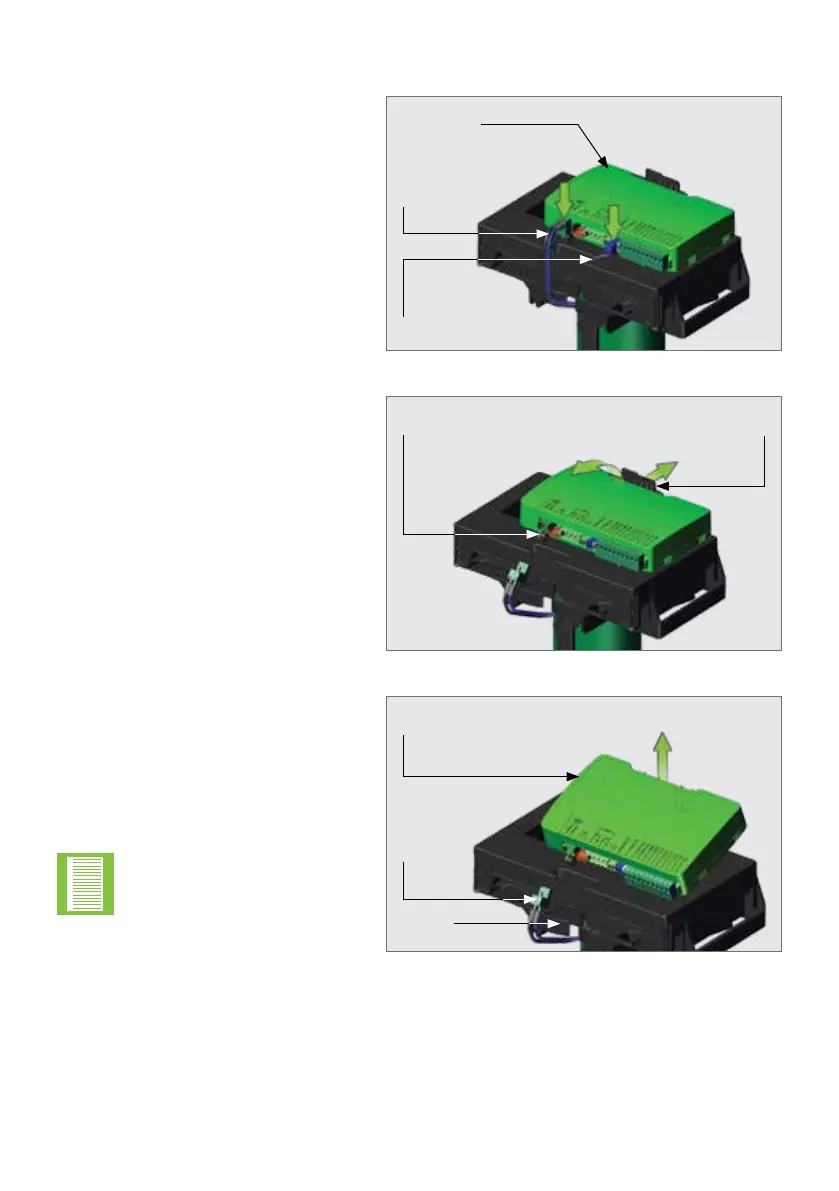

FIGURE 29
FIGURE 30
FIGURE 31
Remove the Control Card by pushing
the right tab behind the Control Card
backwards.
This will allow the Control Card to
hinge forward.
Disconnect the Motor Wires at
Point "D" and the Override Sensor
Harness at Point "E" from the Control
Card as Shown in Figure 29.
7.4.3. Removing the Control Card
EE
DD
Lift the Control Card upwards and
away form the D10 SMART / D10
Turbo SMART / D20 SMART,
which will unhinge it from the hinge
tabs found on the sides of the
Control Card.
Store the Control Card in a safe
place.
The D10 SMART / D10 Turbo
SMART / D20 SMART is now ready
to be mounted onto the Foundation
Plate.
Take care not to snag the
remaining harnesses in the
harness retainers when
removing the Control Card
from the platform.
Override Sensor
Harness
Motor
Wires
Harnesses
Harness
Retainer
D10 SMART
Control Card
Push the right tab
backwards
Hinge the Control
Card forward
D10 SMART
Control Card
