Centurion Vantage - Page 32

page 32 www.CentSys.com
SECTION 9

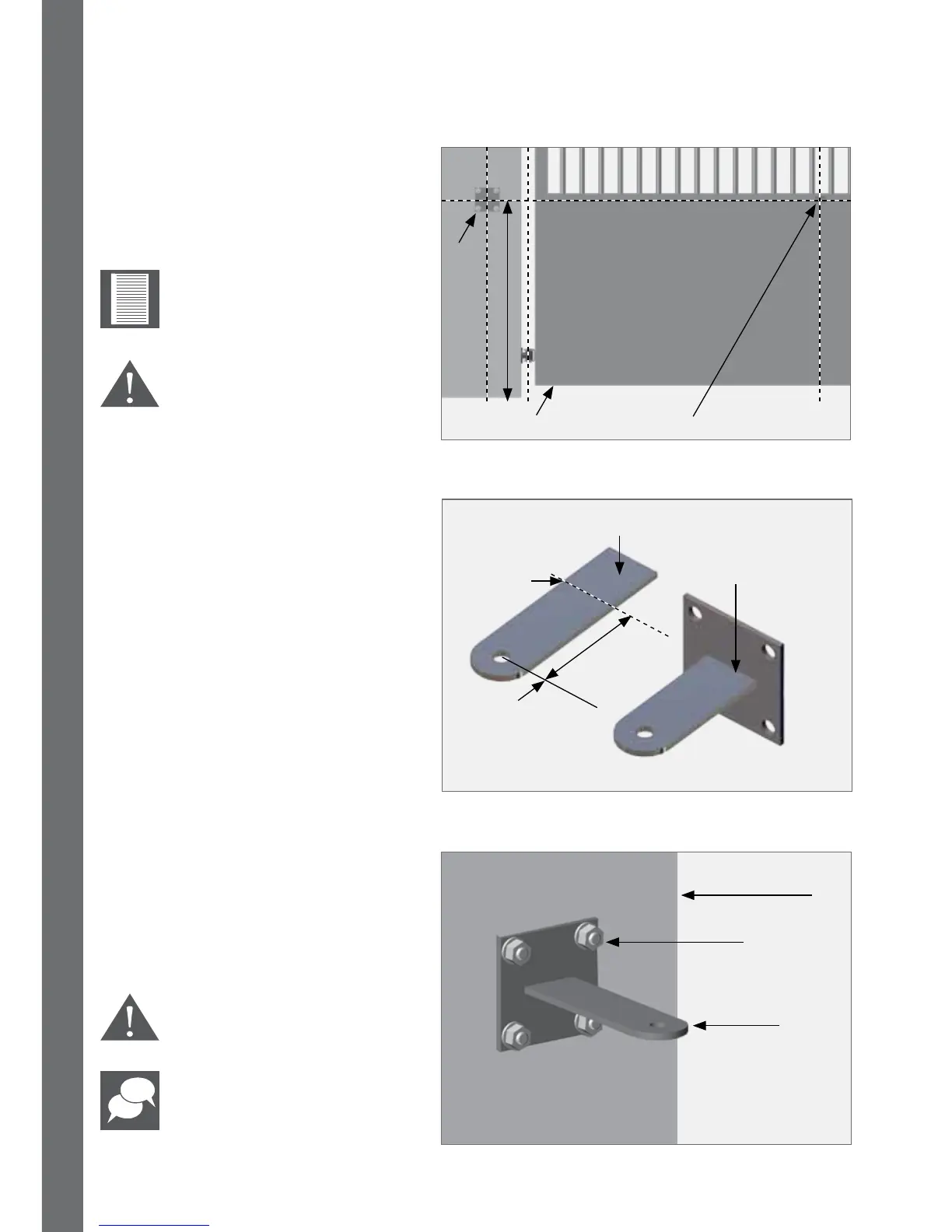

FIGURE 18. WALL BRACKET HEIGHT
Wall Bracket
Minimum 125mm
Gate
Gate Bracket position
9.2. Step 2
Determine a suitable height for the
Wall Bracket.
Ensure that this mounting
height will allow the Gate
Bracket to be securely
mounted to the Gate Leaf.
Take care to make sure
the operator is mounted
level.
9.3. Step 3
Mark the determined length on the
Wall Bracket.
Cut o excess length.
Insert the Wall Bracket into the
mounting plate.
Weld the brackets together.
FIGURE 19. CUT AND WELD WALL BRACKET
Mark length
on bracket
Weld plates
together
Cut o
excess length
Wall Bracket
length
FIGURE 20
Wall
Mounting bolt
Wall
Bracket
It is critical that the
Wall Bracket is securely
mounted.
See page 18 for Site
Considerations.
9.4. Step 4
Mount the Wall Bracket according to
the A- and B-Values obtained in
Step 1 on page 27.
OPERATOR INSTALLATION - INWARD OPENING GATES
