SECTION 9

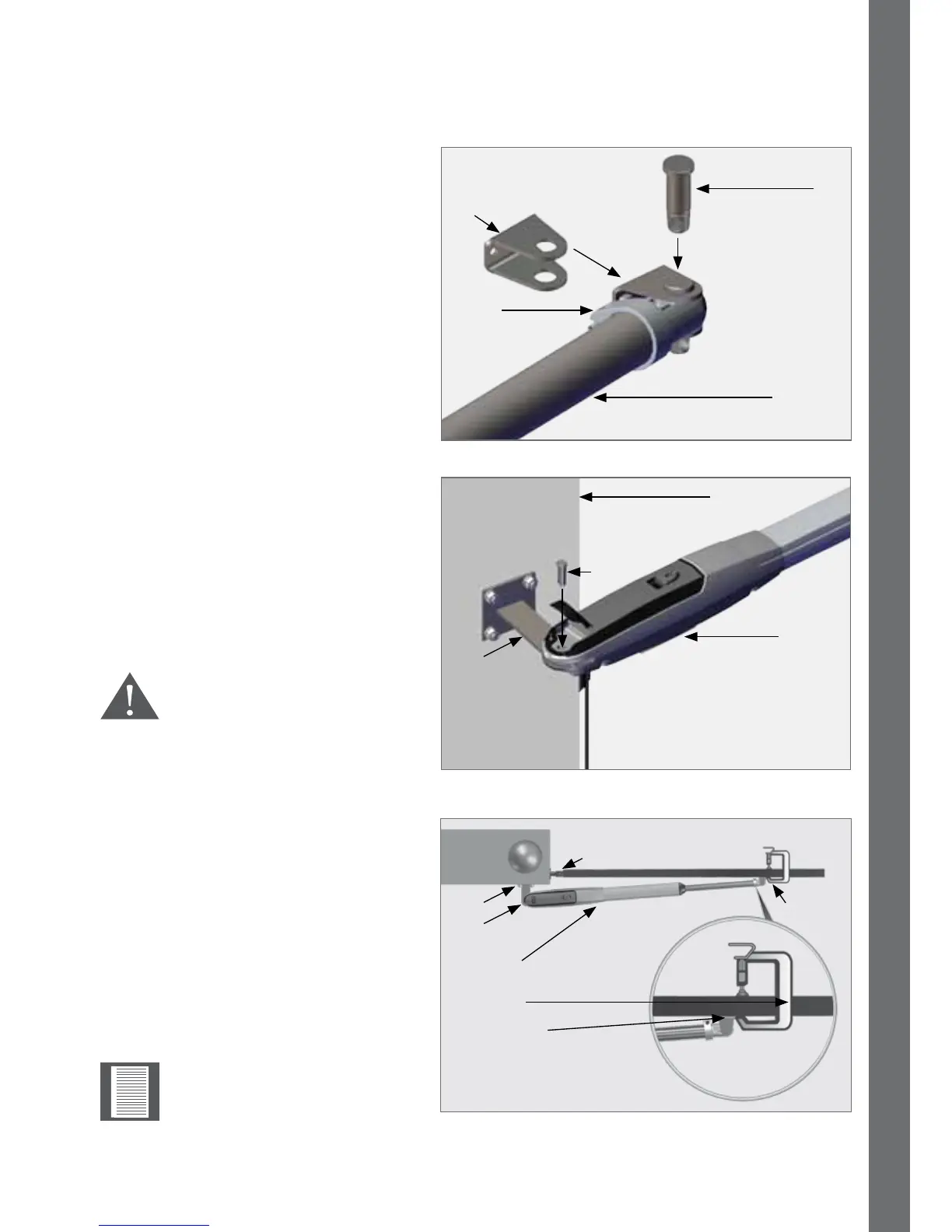

9.5. Step 5
Fit the Gate Bracket to the
VANTAGE.
FIGURE 21
Pin
Gate
Bracket
Origin
clamp
VANTAGE
operator
G-clamp
Gate in closed position
G-clamp or
spot weld
Gate Bracket
VANTAGE
operator
Wall
Wall
Bracket
FIGURE 23
VANTAGE
operator
Wall
Bracket
FIGURE 22
Wall
Pin
9.6. Step 6
Fit the motor end of the operator to
the Wall Bracket.
Support the operator to
prevent damage
OPERATOR INSTALLATION - INWARD OPENING GATES
9.7. Step 7
Manually rotate the piston to the fully
extended position, and then retract it
by half to one full turn.
With the gate in the closed position,
use a G-clamp or spot weld the Gate
Bracket in position to temporarily
hold the Gate Bracket in place.
The G-clamp should only
be used to secure the Gate
Bracket in place, and should
never be used as a means of
securing the operator piston
arm as this could result in
damage.
