Cessna Skylane 182T Operating Handbook

CESSNA SECTION 6
MODEL 182T NAV
Ill WEIGHT AhlD BALANCE/EQUIPMENT LlST

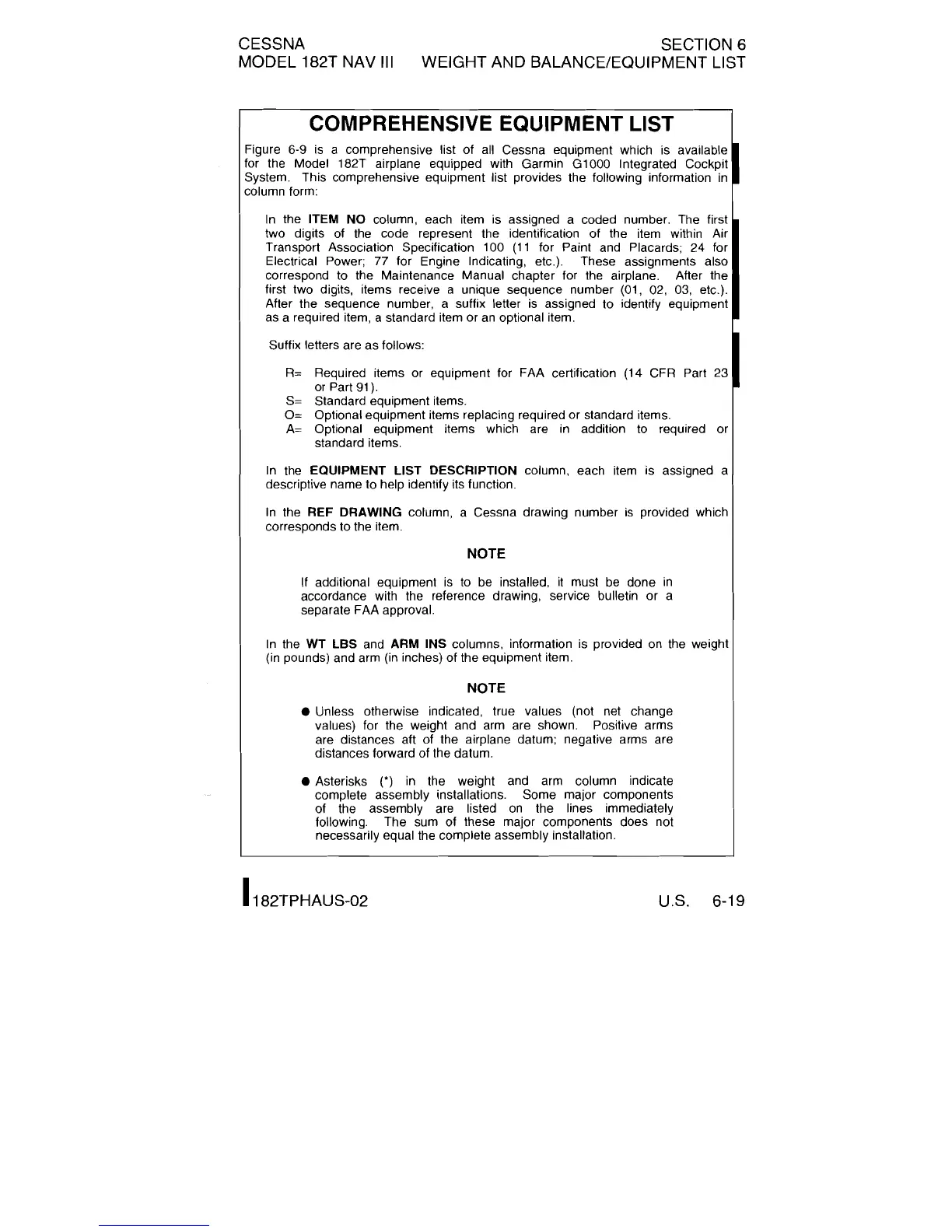

COMPREHENSIVE EQUIPMENT LlST
Figure 6-9 is a comprehensive list of all Cessna equipment which is available
for the Model 182T airplane equipped with
Garmin GlOOO Integrated Cockpit
System. This comprehensive equipment list provides the following information in
column form:
In the
ITEM NO column, each
item is assigned a coded number. The first
two digits of the code represent the identification of the item within Air
Transport Association Specification 100 (1 1 for Paint and Placards; 24 for
Electrical Power;
77 for Engine Indicating, etc.). These assignments also
correspond to the Maintenance Manual chapter for the airplane. After the
first two digits, items receive a unique sequence number (01, 02, 03, etc.).
After the sequence number, a suffix letter is assigned to identify equipment
as a required item, a standard item or an optional item.
Suffix letters are as follows:
R= Required items or equipment for FAA certification (14 CFR Part 23
or Part 91).
S= Standard equipment items.
O= Optional equipment items replacing required or standard items.
A= Optional equipment items which are in addition to required or
standard items.
In the
EQUIPMENT LlST DESCRIPTION column, each item is assigned a
descriptive name to help identify its function.
In the
REF DRAWING column, a Cessna drawing number is provided which
corresponds to the item.
NOTE
I
If additional equipment is to be installed, it must be done in
accordance with the reference drawing, service bulletin or a
separate FAA approval.
In the
WT LBS and ARM INS columns, information is provided on the weight
(in pounds) and arm (in inches) of the equipment item.
NOTE
Unless otherwise indicated, true values (not net change
values) for the weight and arm are shown. Positive arms
are distances aft of the airplane datum; negative arms are
distances forward of the datum.
.Asterisks (*) in the weight and arm column indicate
complete assembly installations. Some major components
of the assembly are listed on the lines immediately
following.
The sum of these major components does not
necessarily equal the complete assembly installation.
U.S. 6-19

Cessna Skylane 182T Specifications

General

Manufacturer	Cessna
Model	Skylane 182T
Type	Single-engine piston
Engine	Lycoming IO-540-AB1A5
Horsepower	230 hp
Maximum Takeoff Weight	3, 100 lb (1, 406 kg)
Wingspan	36 ft (11.0 m)
Length	29 ft (8.8 m)
Seating Capacity	4
Category	Aircraft
Maximum Speed	148 knots
Stall Speed (with flaps)	49 knots
Rate of Climb	924 feet per minute
Empty Weight	1, 970 pounds
Fuel Capacity	87 gallons
Height	9 feet 4 inches
Maximum Cruise Speed	145 knots
Service Ceiling	18, 100 feet
