Cessna Skylane 182T Operating Handbook

SECTION 7 CESSNA
AIRPLANE AND SYSTEMS
DESCRIPTIOIV MODEL 182T NAV Ill

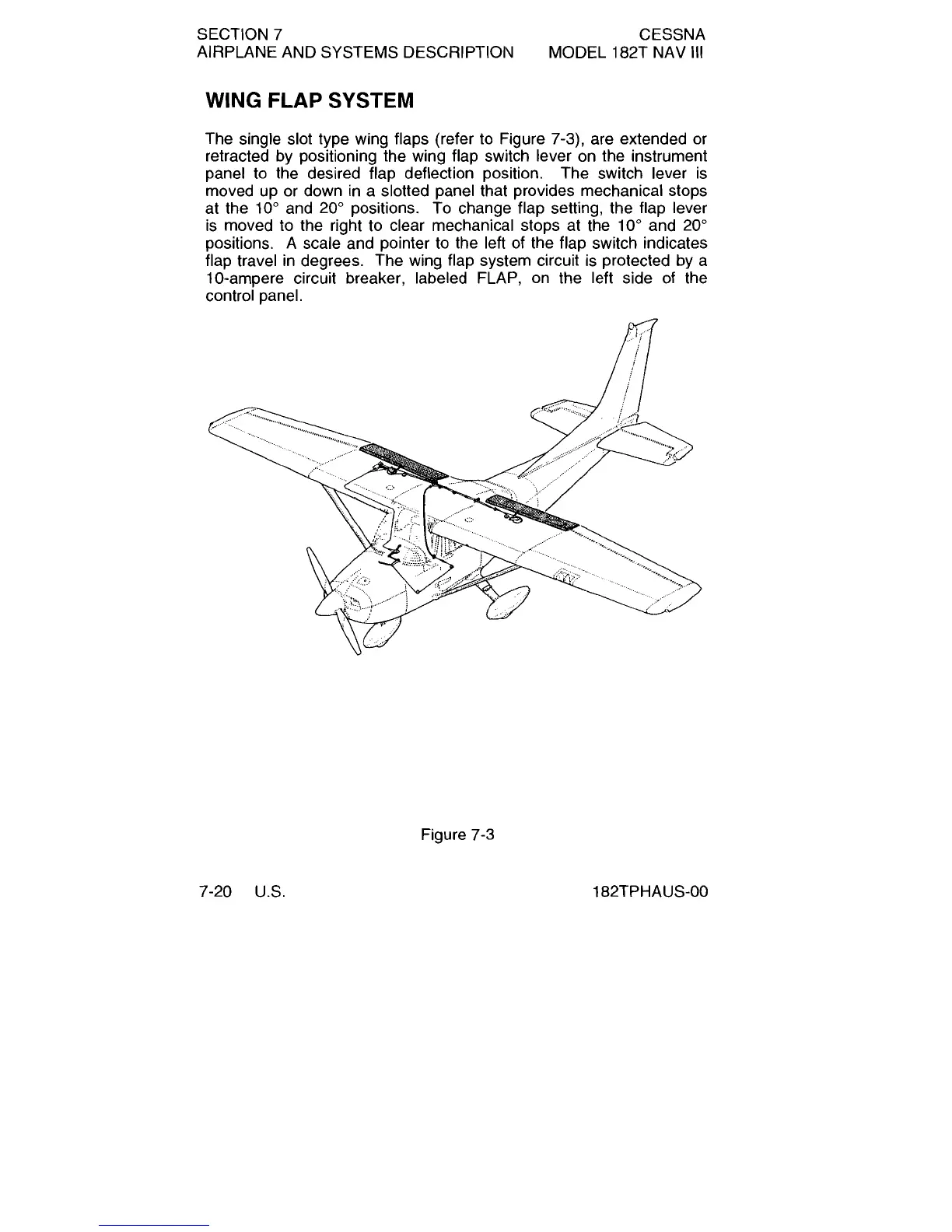

WING FLAP SYSTEM
The single slot type wing flaps (refer to Figure 7-3), are extended or
retracted by positioning the wing flap switch lever on the instrument
panel to the desired flap deflection position. The switch lever is
moved up or down in a slotted panel that provides mechanical stops
at the 10" and 20" positions. To change flap setting, the flap lever
is moved to the right to clear mechanical stops at the 10" and 20"
positions. A scale and pointer to the left of the flap switch indicates
flap travel in degrees. The wing flap system circuit is protected by a
10-ampere circuit breaker, labeled FLAP, on the left side of the
control panel.
Figure 7-3
7-20 U.S.

Cessna Skylane 182T Specifications

General

Manufacturer	Cessna
Model	Skylane 182T
Type	Single-engine piston
Engine	Lycoming IO-540-AB1A5
Horsepower	230 hp
Maximum Takeoff Weight	3, 100 lb (1, 406 kg)
Wingspan	36 ft (11.0 m)
Length	29 ft (8.8 m)
Seating Capacity	4
Category	Aircraft
Maximum Speed	148 knots
Stall Speed (with flaps)	49 knots
Rate of Climb	924 feet per minute
Empty Weight	1, 970 pounds
Fuel Capacity	87 gallons
Height	9 feet 4 inches
Maximum Cruise Speed	145 knots
Service Ceiling	18, 100 feet
