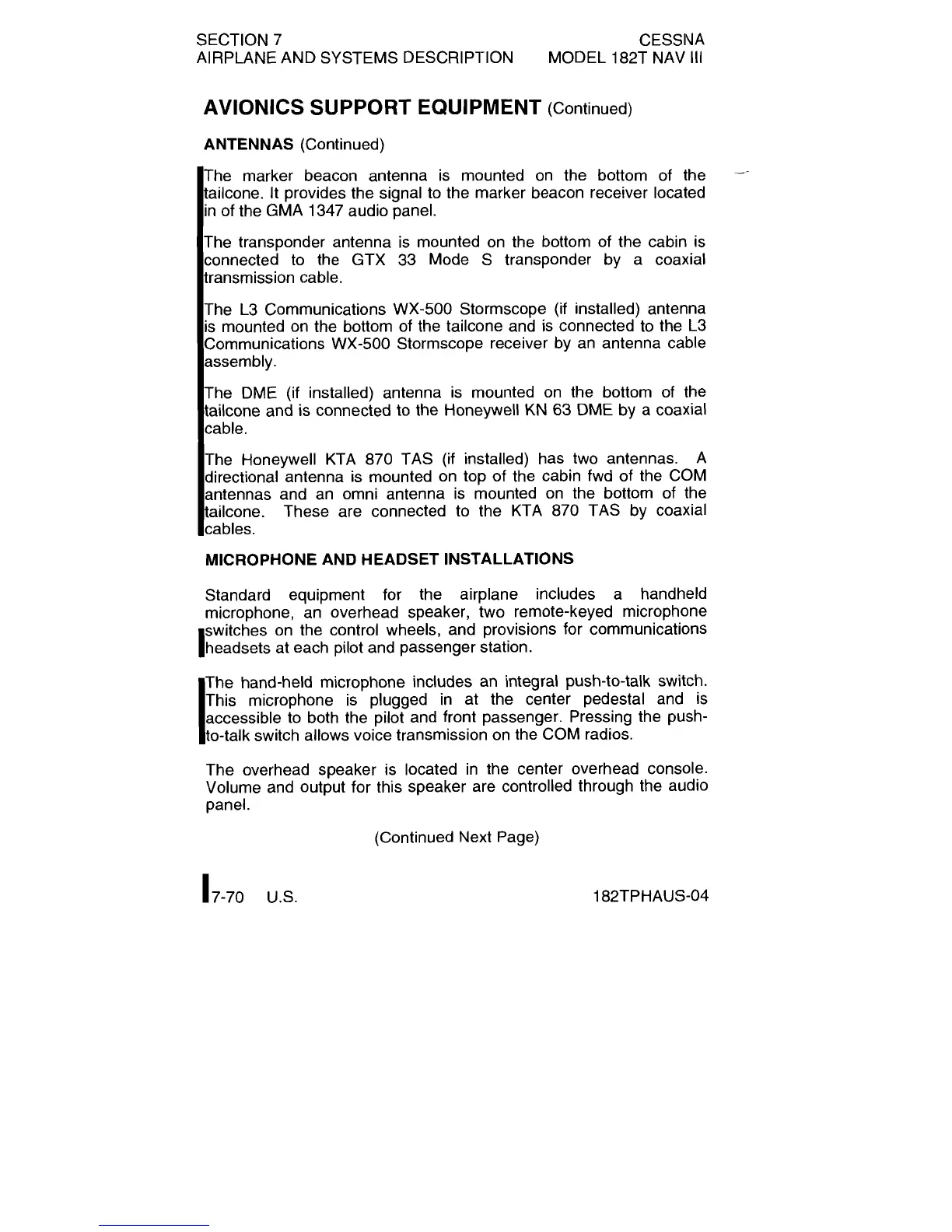

SECTION
7
CESSIVA
AIRPLANE AND SYSTEMS DESCRIPTION
MODEL 182T NAV
Ill
AVIONICS SUPPORT EQUIPMENT
(Continued)
ANTENNAS
(Continued)
I
The marker beacon antenna is mounted on the bottom of the
--
tailcone. It provides the signal to the marker beacon receiver located
in of the GMA 1347 audio panel.
I
The transponder antenna is mounted on the bottom of the cabin is
connected to the GTX 33 Mode S transponder by a coaxial
transmission cable.
I
The L3 Communications WX-500 Stormscope (if installed) antenna
is mounted on the bottom of the
tailcone and is connected to the L3
Communications WX-500 Stormscope receiver by an antenna cable
assembly.
I
The DME (if installed) antenna is mounted on the bottom of the
tailcone and is connected to the Honeywell
KN
63 DME by a coaxial
cable.
I
The Honeywell KTA 870 TAS (if installed) has two antennas.
A
directional antenna is mounted on top of the cabin fwd of the COM
antennas and an omni antenna is mounted on the bottom of the
tailcone. These are connected to the KTA 870 TAS by coaxial
cables.
MICROPHONE AND HEADSET INSTALLATIONS
Standard equipment for the airplane includes a handheld
microphone, an overhead speaker, two remote-keyed microphone
I
switches on the control wheels, and provisions for communications
headsets at each pilot and passenger station.
I
The hand-held microphone includes an integral push-to-talk switch.
This microphone is plugged in at the center pedestal and is
accessible to both the pilot and front passenger. Pressing the push-
to-talk switch allows voice transmission on the COM radios.
The overhead speaker is located in the center overhead console.
Volume and output for this speaker are controlled through the audio
panel.
(Continued Next Page)
