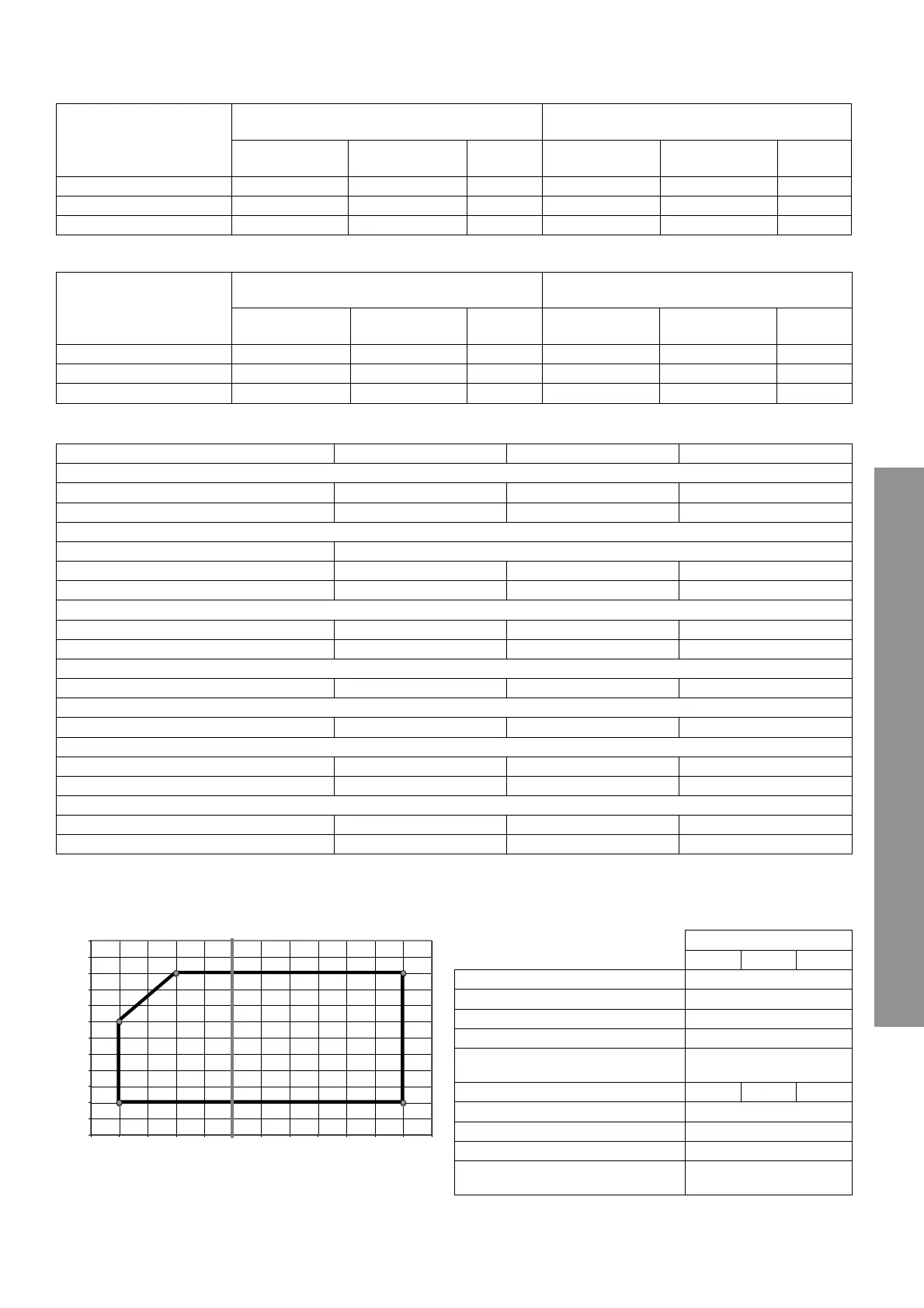

CHAFFOTEAUX ARIANEXT COMPACT - External unit thermodynamic performances; Application 30;35; Application 40;45; External unit technical data

89
Regulation
ARIANEXT COMPACT
External unit thermodynamic performances
Application 30/35
ARIANEXT
EXTERNALUNIT
Temperature conditions °C
7/6_30/35°C
Temperature conditions °C
-7/-8_ */35°C
Rated power
kW
Power
consumption kW
COP Rated power
kW
Power
consumption kW
COP
04 kW 4,08 0,99 4,12 2,78 1,19 2,34
06 kW 5,76 1,34 4,30 3,46 1,42 2,44
08 kW 7,16 1,80 3,98 4,16 1,96 2,12
Application 40/45
ARIANEXT
EXTERNALUNIT
Temperature conditions °C
7/6_30/35°C
Temperature conditions °C
-7/-8_ */35°C
Rated power
kW
Power
consumption kW
COP Rated power
kW
Power
consumption kW
COP
04 kW 3,88 1,19 3,26 2,58 1,28 2,02
06 kW 5,76 1,88 3,06 3,46 1,62 2,14
08 kW 7,36 2,30 3,20 3,96 2,31 1,71
External unit technical data
EXTERNALUNIT 04 kW EXTERNALUNIT 06 kW EXTERNALUNIT 08 kW
Refrigerant
Type R410A R410A R410A
Charge (1) (kg) 1,195 1,350 1,810
Compressor
Type Rotary DC Inverter Technology
Number 1 1 1
Tipo di avviamento Progressive Progressive Progressive
Condenser
Type Plate heat exchanger Plate heat exchanger Plate heat exchanger
Number 1 1 1
Evaporator
Type Finned tubes Finned tubes Finned tubes
Weights
Expedition weight (kg) 60,6 65,7 71,4
Working range
T° heating water min/max °C 20/60°C 20/60°C 20/60°C
T° external air min/max -20/30°C -20/30°C -20/30°C
Hydraulics
Water volume (l) 0,8 0,8 1,0
Max water pressure ( kPa) 300 300 300
(1) (1) Approximate values. Always refer to the specifi c value indicated on the data plate of the unit.
Working limits Performances domestic hot water (DHW)
10
15
20
25
30
35
40
45
50
55
60
65
70
-25 -20 -15 -10 -5 0 5 10 15 20 25 30 35
B
A
A - External air temperature (°C)
B - Flow water temperature (°C)
ARIANEXT EXTERNAL UNIT
04kW 06kW 08kW
Tapping profi le following EN16147 XL
DHW set point (°C) 52
Heat Pump function mode Alternate
Nominal stocking volume (liters) 180
DHW performance certifi ed with
or without electrical resistance
without electrical resistance
Heating up time (th) 2h13min 2h05min 2h02min
Back-up power (Pes) (W) 45
Coeffi cient of performance (COPDHW) 2,50
Reference hot water temperature ('wh) (°C) 53,0
Maximum quantity of usable hot water (VMAX) (l)
240
