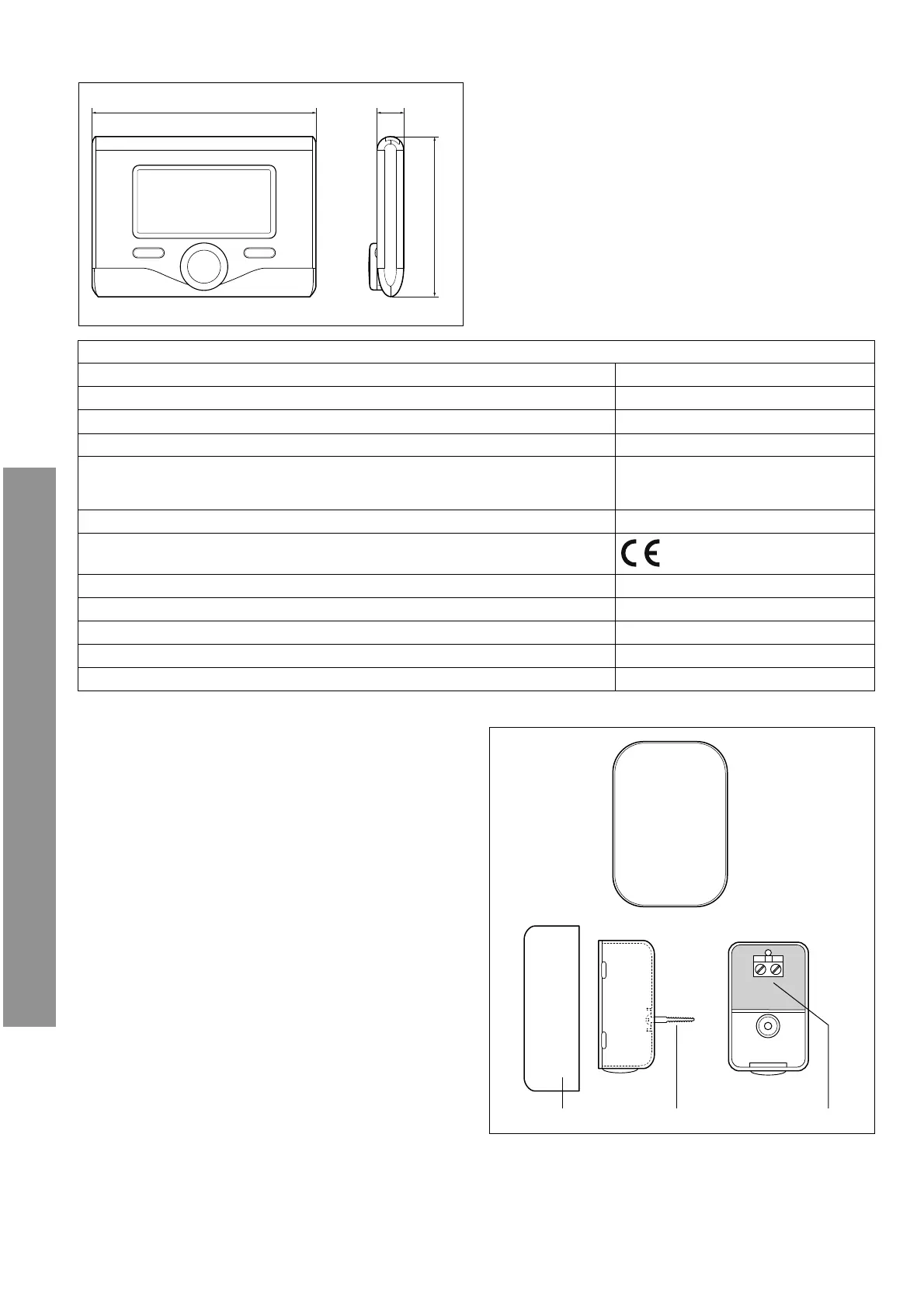

Technical data
ARIANEXT COMPACT
Technical data
Power supply BUS
Electrical absorption max. < 0,5W
Operating temperature -10 ÷ 60°C
Storage temperature -20 ÷ 70°C
Bus wire length and cross-sectional area
NOTE:
TO AVOID INTERFERENCE PROBLEMS, USE A SHIELDED CABLE OR TWISTED PAIR CABLE.
max. 50 m - min. 0.5 mm²
Buffer memory 2 h
Conformity
LVD 2006/95/EC - EMC 2004/108/EC
Electromagnetic interference EN 60730-1
Electromagnetic emissions EN 60730-1
Conformity to standards EN 60730-1
Temperature sensor NTC 5 k 1%
Resolution degree: 0,1°C
134 mm 16 mm
96 mm
System interface
Outdoor sensor
Position the outdoor sensor on the north-facing wall of the building,
at least 2.5 m from the ground and away from direct sunlight.
Remove the cover and install the sensor using the rawl plug and screw
provided. Perform connection using a 2x0.5 mm2 wire.
Maximum connection length 50 m. Connect the wire to the terminal
by introducing it from the lower part after creating a suitable passage.
Place the sensor cover back in the correct position..
AB
C
