1 Install the door control
Install the Door Control
To preventpossible SERIOUS INJURY or DEATHfrom electrocution:
• Be sure power is NOT connected BEFORE installing door control.
• ConnectONLY to 24 VOLTlow voltage wires.
To preventpossible SERIOUS INJURY or DEATHfrom a closing garage door:
• Install door control within sight of garage door, outof reach ofchildren ata minimum height of 5 feet
(1.5 m),and away from ALL moving partsof door.
• NEVER permit children to operate or play with door control push buttons or remote control
transmitters.
• Activate door ONLY when it can be seen clearly,is properly adjusted, and there are no
obstructions to door travel.
• ALWAYS keep garage door in sightuntil completely closed. NEVER permitanyone to cross path of
closing garage door.
INTRODUCTION
Compatible with MyQ™ and Security+
®
2.0
accessories.NOTE:Older LiftMaster
accessories and third party products are not
compatible.Your garage door opener is
compatible with up to 2 Smart Control Panels or
4 ofany other Security+
®
2.0 door controls.
Install the door control within sightof the door at
a minimum height of 5 feet (1.5 m) where small
children cannotreach,and away from the
moving parts ofthe door.
NOTE: Your product may look different than
moving parts of the door the illustrations.

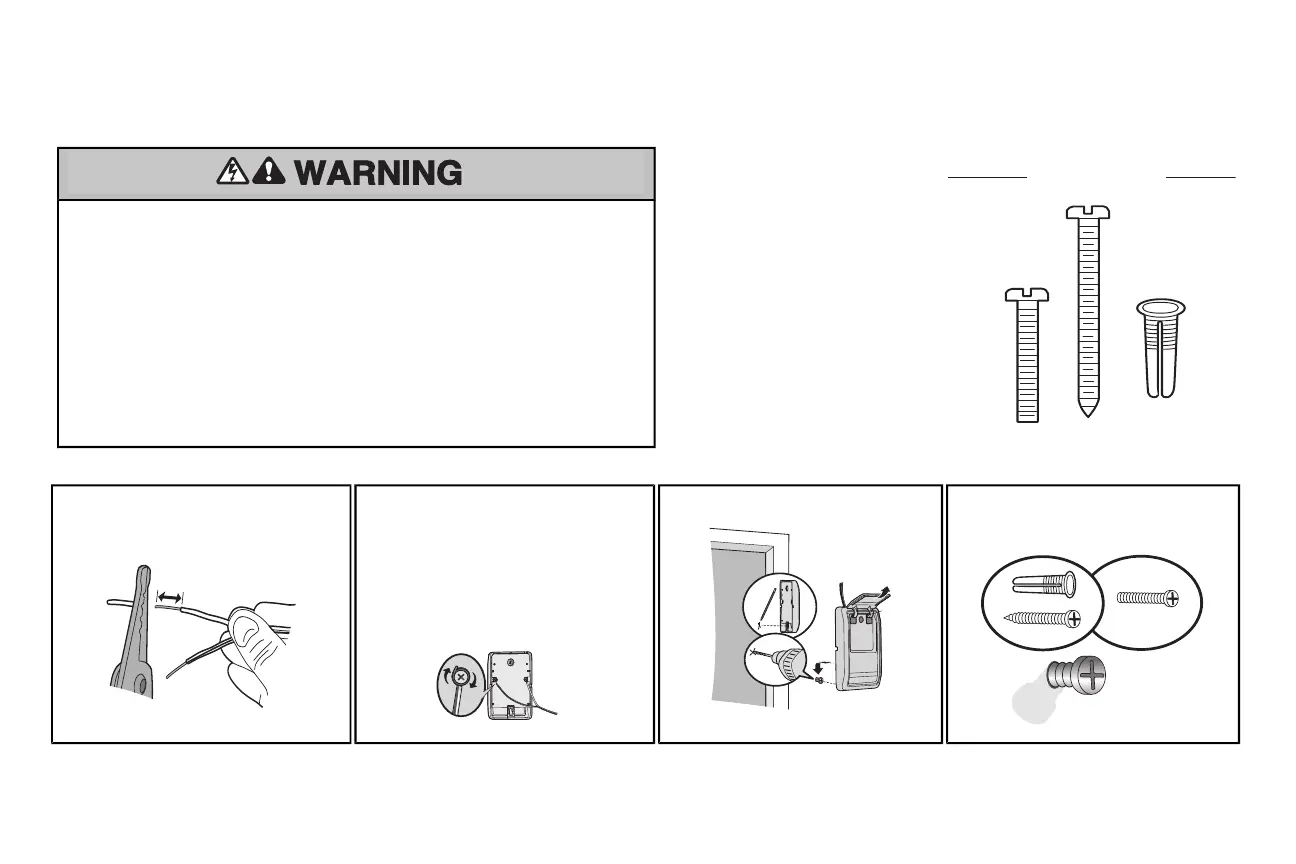

H14 (2)
Screw
6ABx1-1/4"
HARDWARE
H16 (2)
Drywall
Anchors
H15 (2)
Screw
6-32x1"
NOTE: For gang box installations it is not necessary to drill holes or install the drywall anchors. Use the existing holes in the gang box.
1.1 Strip 7/16 inch (11 mm) of insulation from
one end of the wire and separate the wires.
7/16"
(11 mm)
1.2 Connectone wire to each of the two screws
on the back of the door control. The wires
can be connected to either screw.
PRE-WIREDINSTALLATIONS:Choose
any two wires to connect,note which wires
are used so the correctwiresare connected
at the garage door opener in a later step.
1.3 Mark the location of the bottom mounting
hole and drill a 5/32 inch (4 mm) hole.
Wall
1.4 Install the bottom screw,allowing 1/8 inch
(3 mm) to protrude from the wall.
H15
DRYWALL
GANG BOX
H14
H16
