Chamberlain 8360 - Wire Safety Reversing Sensors (Pre-wired)

Install the Protector System
®

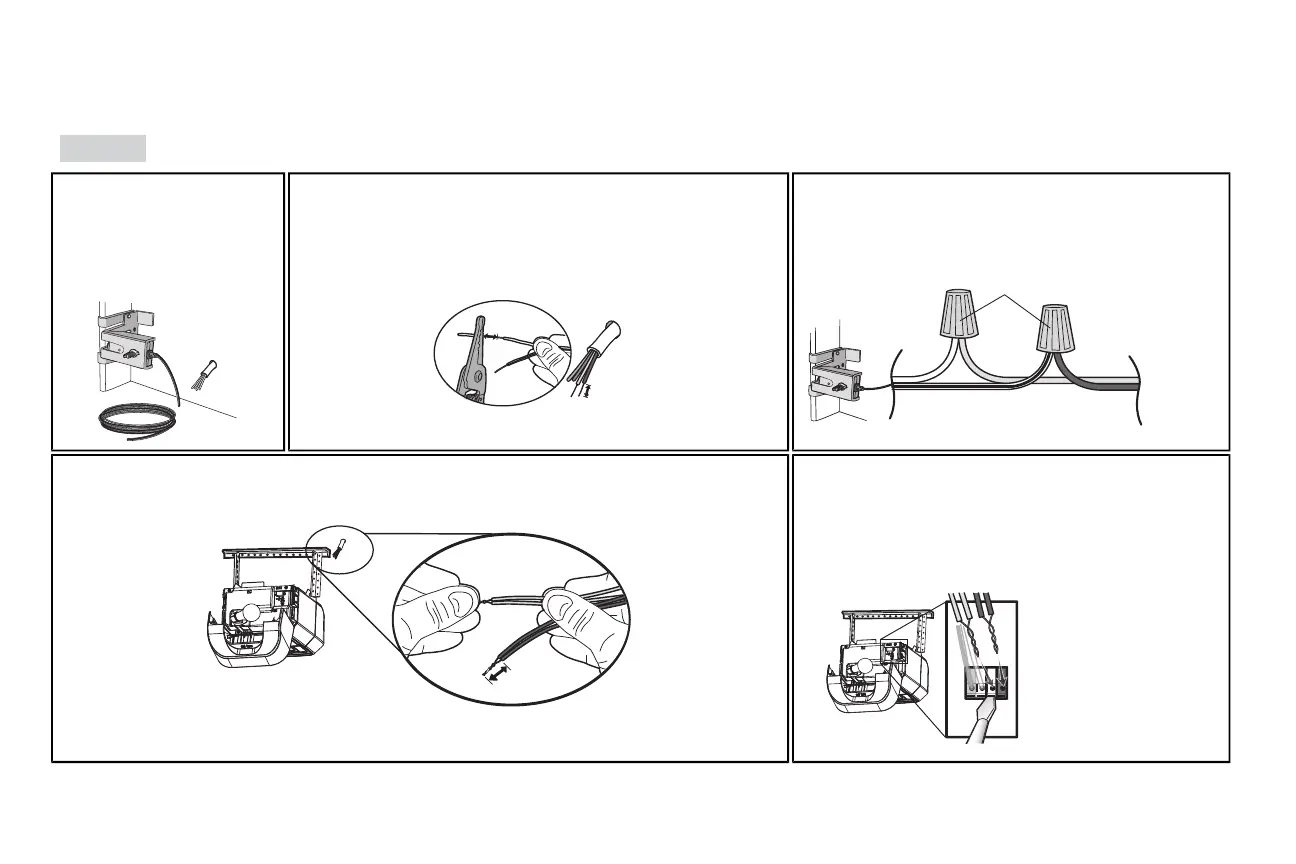

OPTION B PRE-WIRED INSTALLATION
2.1B Cut the end of the safety
reversing sensor wire, making
sure there is enough wire to
reach the pre-installed wires
from the wall.
2.2B Separate the safetyreversing sensor wires and strip 7/16 inch (11 mm) of
insulation from each end.Choose two of the pre-installed wiresand strip 7/16
inch (11 mm) of insulation from each end.Make sure thatyou choose the
same color pre-installed wires for each sensor.
7/16"
(11 mm)
7/16"
(11 mm)
Safety reversing sensor wires
Pre-installed
wires
2.3B Connectthe pre-installed wires to the sensor wires with wire nuts
making sure the colorscorrespond for each sensor. For example,
the white wire would connectto the yellow wire and the white/black
wire would connectto the purple wire.
White
White/Black
Yellow
(for example)
Purple
(for example)
Not Provided
Pre-installed
wires
Safety reversing sensor wires
2.4B At the garage door opener, strip 7/16 inch (11 mm) of insulation from each end of the wires previouslychosen for the
safety reversing sensors.Twistthe like-colored wires together.
7/16"
(11 mm)
Yellow
Purple
2.5B Insert the wires connected to the white safetysensor wiresto the
white terminal on the garage door opener. Insert the wires that are
connected to the white/blacksafetysensor wires to the grey
terminal on the garage door opener.
RED
WHITE
WHITE
GREY
D
W
RED
RE
GR
GREY
WH
WHIT
Purple
(for example)
Yellow
(for example)
To insert or remove the wires
from the terminal, push in the
tab with a screwdriver tip.
