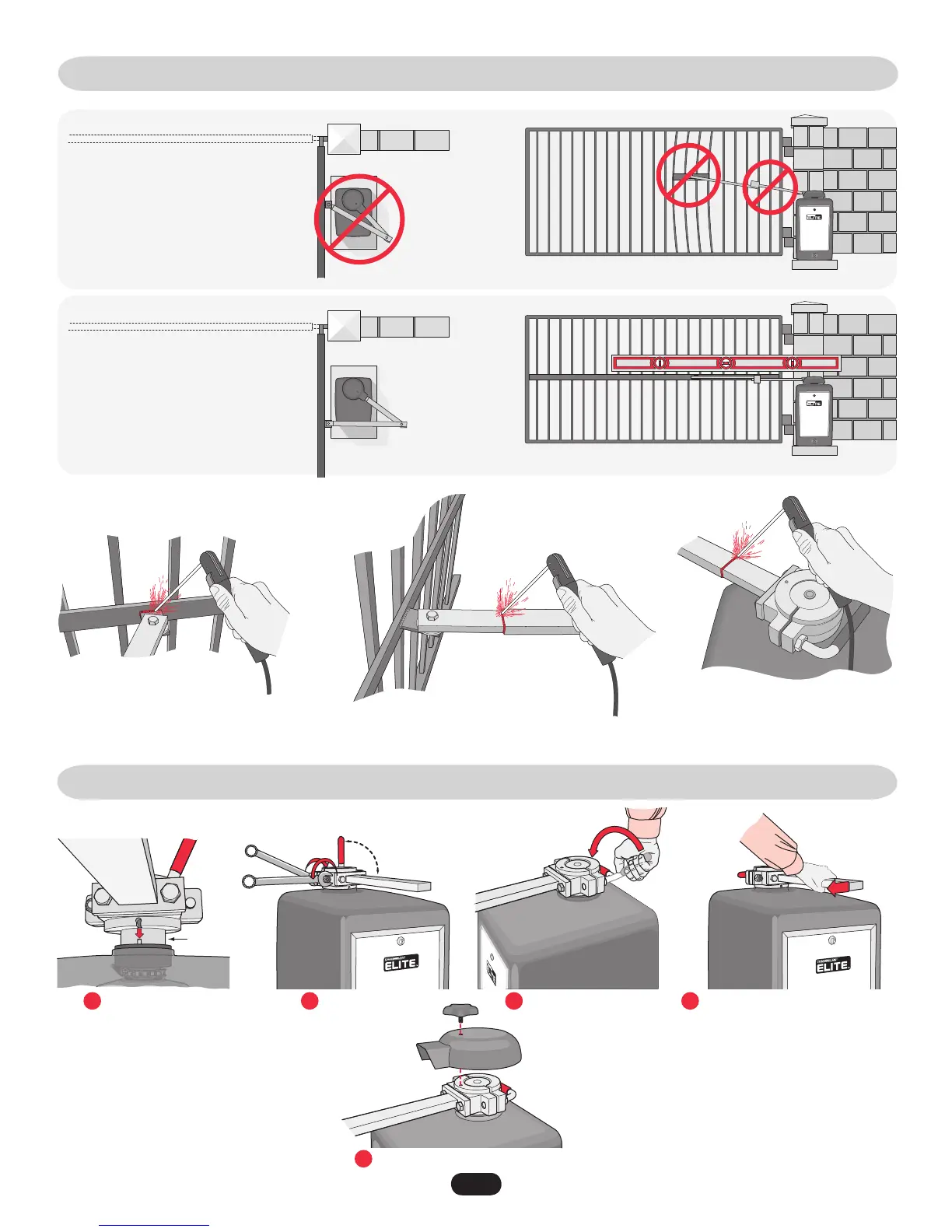

GATE ARM INSTALLATION
OUTPUT SHAFT ADJUSTMENT
Gate Closed
Incorrect
Installation!
Completely weld around the rectangular tubes and bracket!
Correct
Installation
Gate Open
Once the gate arm measurements are calculated:
Weld the bracket on the gate.
Fit pin in slot. Tighten the nut.




Tighten the handle.
Replace cover and star knob.
Pull the short arm away
from the gate.
NO slippage should occur.
If it does, go back and
tighten the nut.
Weld the longer arm.......... ........then weld the shorter arm.
Arm is on TOP
of bracket.
