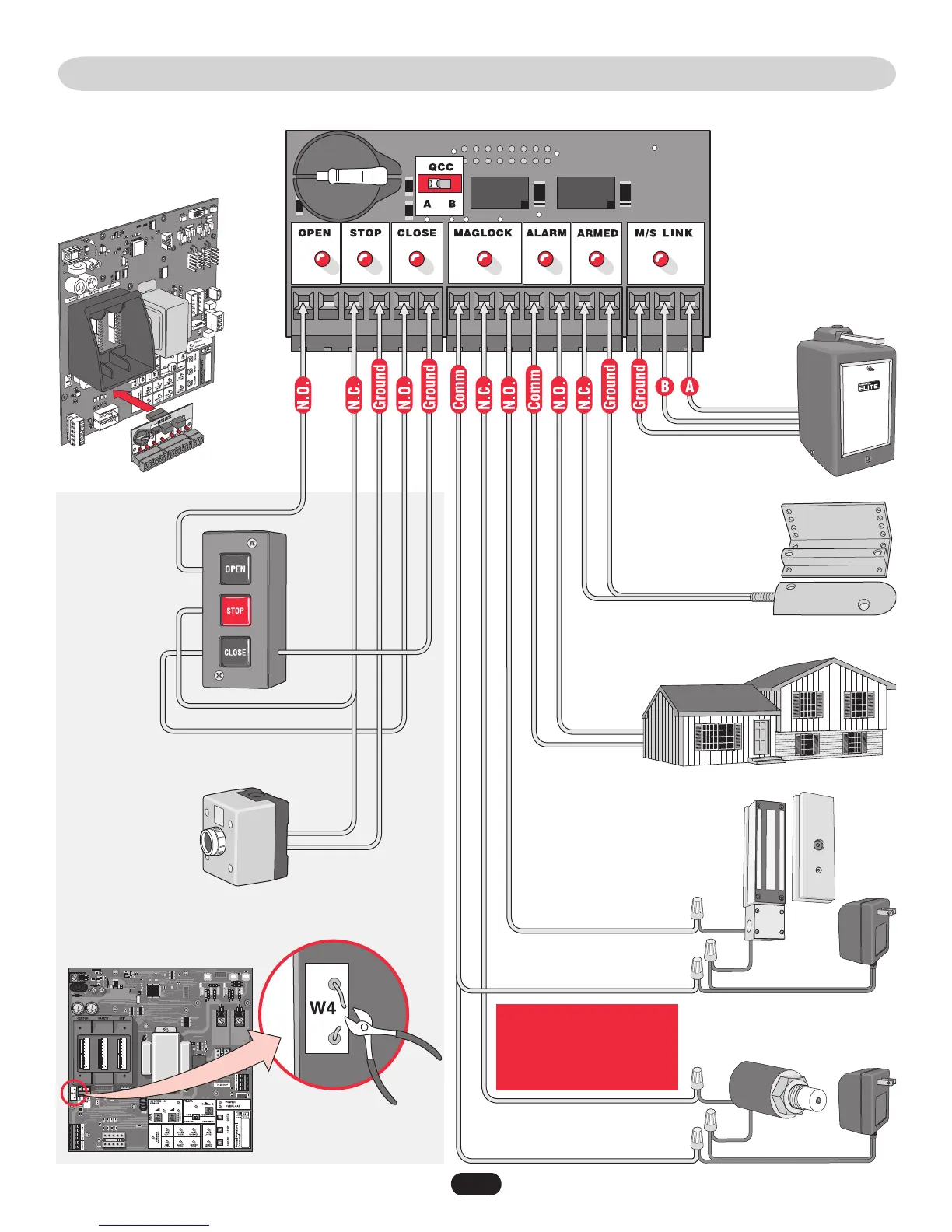

OMNI CONTROL™ BOARD CONNECTIONS

®

NOTE: Cut jumper W4 wire for 3 button station or
stop button.
Stop
Button

3 Button
Station

Second
Operator
Proximity
Switch
12Vdc House Alarm
Maglock
Solenoid Lock
Relay Contact Rating
0.5 Amp - 125Vac
1 Amp - 24Vdc
NOTE: Refer to the
OmniControl™ board manual
for more specific information.
