Chamberlain LA100 - Secure Brackets to Gate Post and Gate

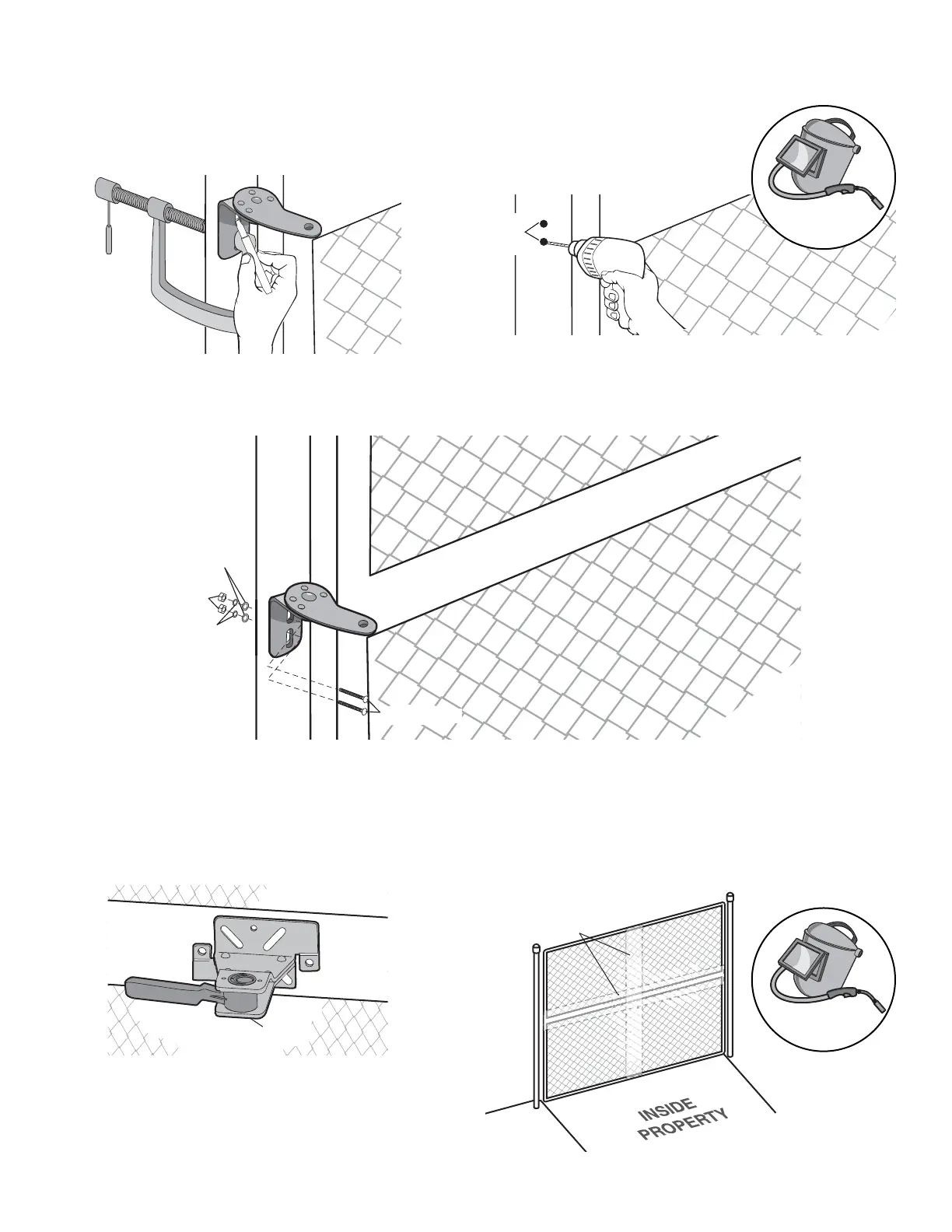

REMOVE THE OPERATOR AND MARK MOUNTING HOLES FOR DRILLING
Ensure gate operator is level by placing level under the gate operator. Remove gate operator
from brackets by removing the hair clips. Mark holes to be drilled. For the post bracket, mark
and drill holes in the middle of the slots to allow for minor adjustments if required. Remove
brackets and drill holes.
SECURE POST BRACKET TO GATE POST
Welder (Optional)
SECURE GATE BRACKET TO GATE
Mount gate bracket with appropriate hardware (not provided). If your gate is constructed of round tubular
framing, u-bolts can be used lieu of through bolt hardware.
NOTE: The gate bracket can be secured to the gate using a welder.
Welder (Optional)
NOTE: Some installations may require reinforcement of
existing gate structures for suitable support.
NOTE: Release lever must point toward the hinge post.
6
7
8
Installation 16
Hex Nuts
Gate Bracket
Flat Washers
HARDWARE
NOT PROVIDED
Lock Washers
Carriage Bolts
Reinforcement Area
1/2" holes required
for mounting
hardware provided.
