12

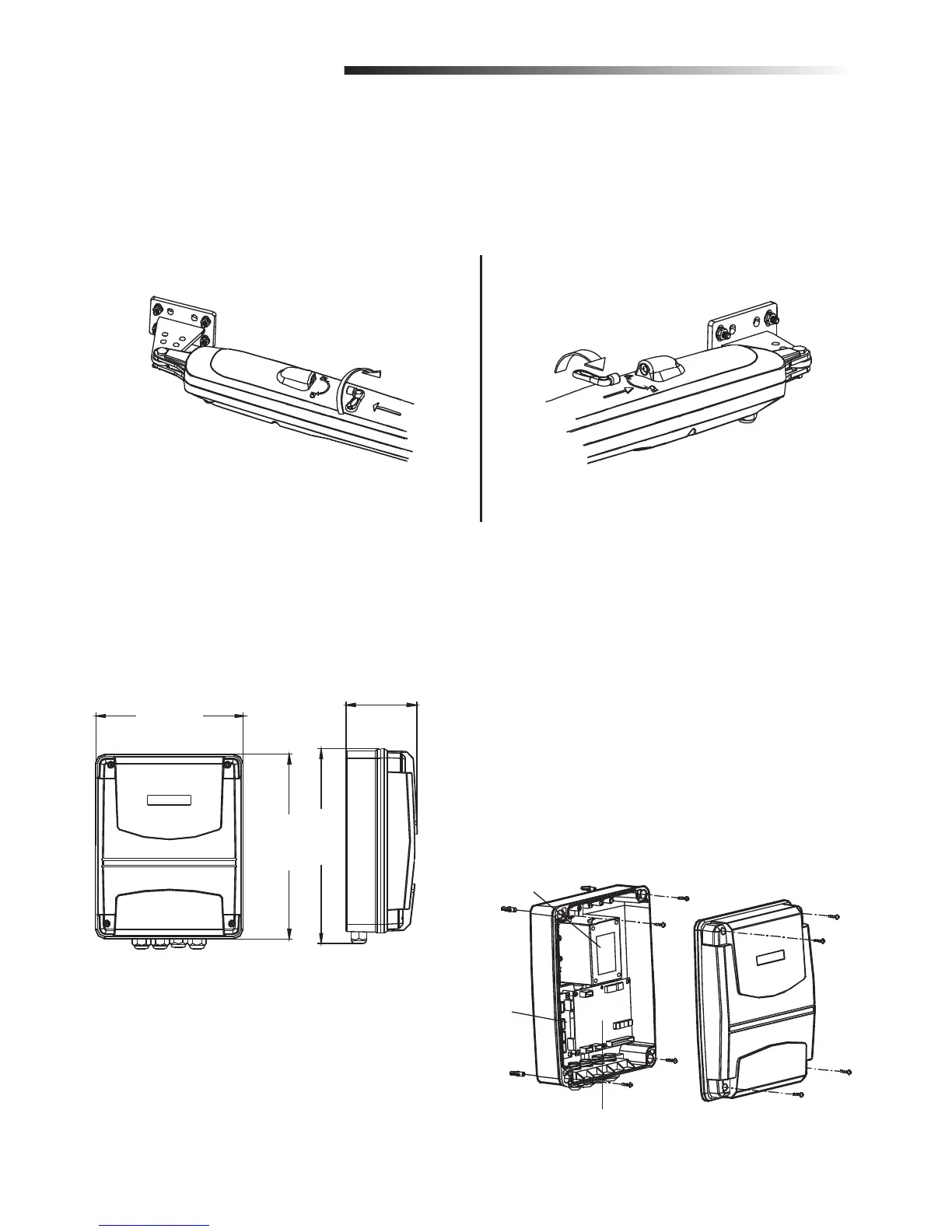

To release the clutch: Insert the release key and turn it 180 degrees clockwise. To engage the clutch:
Insert the release key and turn it 180 degrees counterclockwise.
Clutch Release
Release
Engage
Release
Engage
The clutch release for the left operator The clutch release for the right operator
INSTALLATION
1. Install the control box 1.7 m above the ground, see page 7. Use screws and anchors (provided)
to secure the control box.
24V Transformer
24V Control board
Power panel
Install the Control Box
226.5 mm
280 mm
108 mm
296 mm
To Next Page
