Chamberlain LA350 - Installation; Determine Post Bracket Position

8

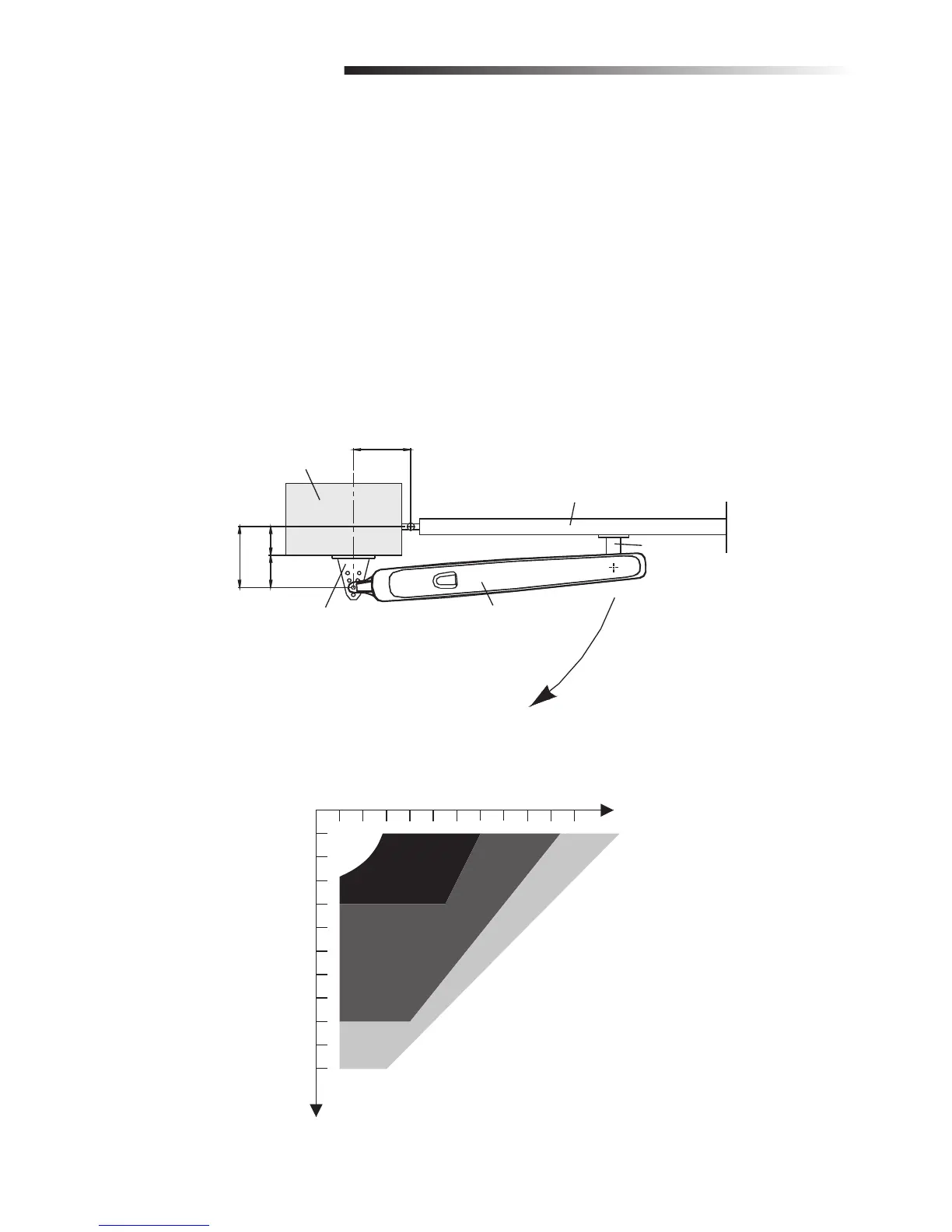

Determine the Position of the Post Bracket
1. Measure the Value C.
2. Value D will depend on the position where the post bracket is mounted.
3. Value A is the total length for both C and D.
4. Value B will depend on Value A and the maximum opening angle of the gate. Refer to
Table 1 below.
NOTE: For optimal mechanical advantage Value B must be close or equal to Value A.
5. Determine the A and B measurements provided in Table 1 to confi rm the position where the post
bracket will be mounted.
A
B
D
C
Gate
Gate Operator
Post Bracket
Gate Bracket
Gate Post
100 110 120 130 140 150 160 170 180 190 200
100
110
120
130
140
150
160
170
180
190
200
Max 120˚
Max 110˚
Max 100˚
Max 90˚
A
B
Unit = mm
Table 1
Maximum Gate Opening
INSTALLATION
