12

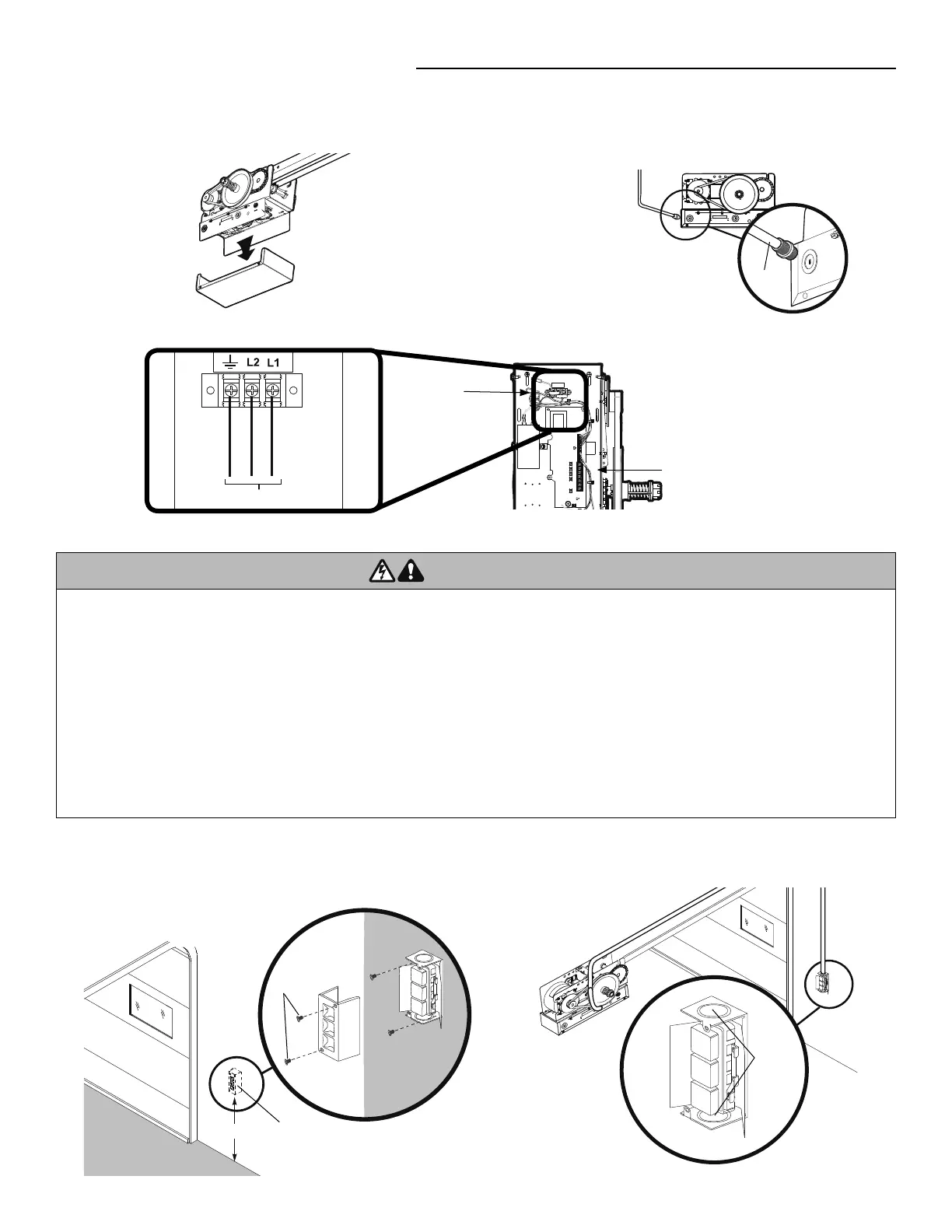

Remove cover.
Run power wires to electrical box according to national and
local electrical codes.
Conduit
Power
Control
Attach power and ground wires to high voltage terminal strip.
Line Power 115 Vac Single Phase
Hot
Neutral
Ground
TYPICAL INSTALLATION
POWER AND GROUND WIRING CONNECTIONS
1
2
3
INSTALL 3-BUTTON CONTROL STATION
3-Button
Control Station
5' (1.5 m)
Screws
Wall
Remove the control station cover.
Fasten the control station to the wall at least 5 feet above the
ground. The installation surface must be smooth and fl at.
1
^
O
OPEN
STOP
^
CLOSE
^
O
OPEN
STOP
^
CLOSE
Knockout
Select appropriate knockout and run the wires to the operator.
2
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing door control.
To prevent possible SERIOUS INJURY or DEATH from a closing
door:
• Install door control within sight of door, out of reach of children
at a minimum height of 5 feet (1.5 m) and away from ALL
moving parts of door.
• Install the control station far enough from the door to prevent
the user from coming in contact with the door while operating
the controls.
• Install the entrapment warning placard on wall next to the
control station in a prominent location that is visible from the
door.
• NEVER permit children to operate or play with door control push
buttons or remote controls.
• Activate door ONLY when it can be seen clearly, is properly
adjusted and there are no obstructions to door travel.
• ALWAYS keep door in sight until completely closed. NEVER
permit anyone to cross path of closing door.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNING WARNING
PRECAUCIÓN
ADVERTENCIA
ADVERTENCIA ADVERTENCIA
3
