Chamberlain MT5011U - Assembly: Track Components; Install Track Spacers; Install Front Idler Assembly; Assemble Trolley and Take-Up Bolt

6
ASSEMBLY

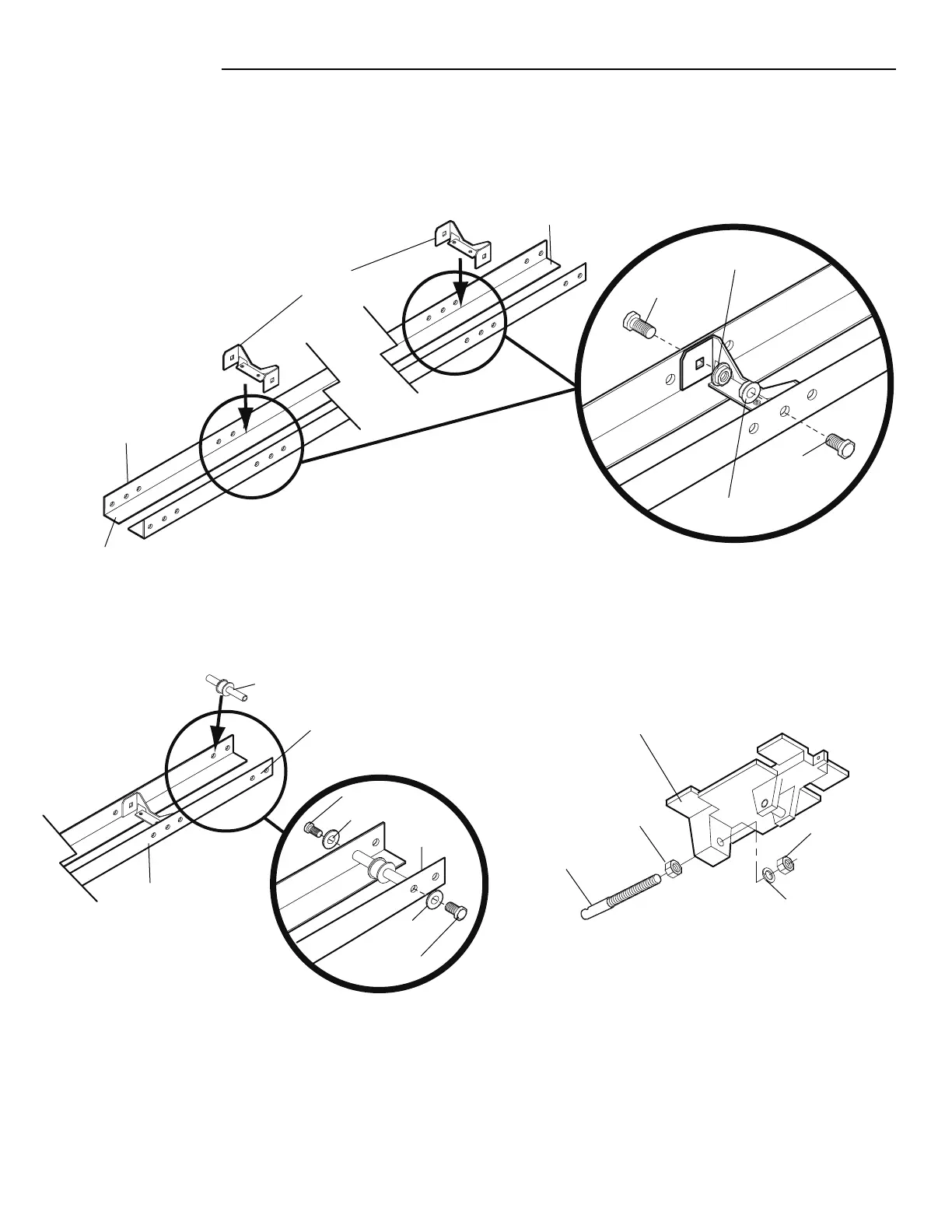

Install track spacers. Position the track spacers evenly over the length of the track using the pre-punched holes.
Install front idler.
Assemble trolley.
Track Spacers
Track
Bolt
3/8" - 16 x 3/4"
Flange Hex Nut
Bolt
3/8" - 16 x 3/4"
Flange Hex Nut
Trolley
Take-Up Bolt
Hex Nut
3/8" - 16
Hex Nut
3/8" - 16
Lock Washer
Operator End
Header End
Track
Bolt 3/8" - 16 x 1"
Bolt 3/8" - 16 x 1"
Lock Washer
Lock
Washer
Header End
Header End
Front Idler
1
2
3
