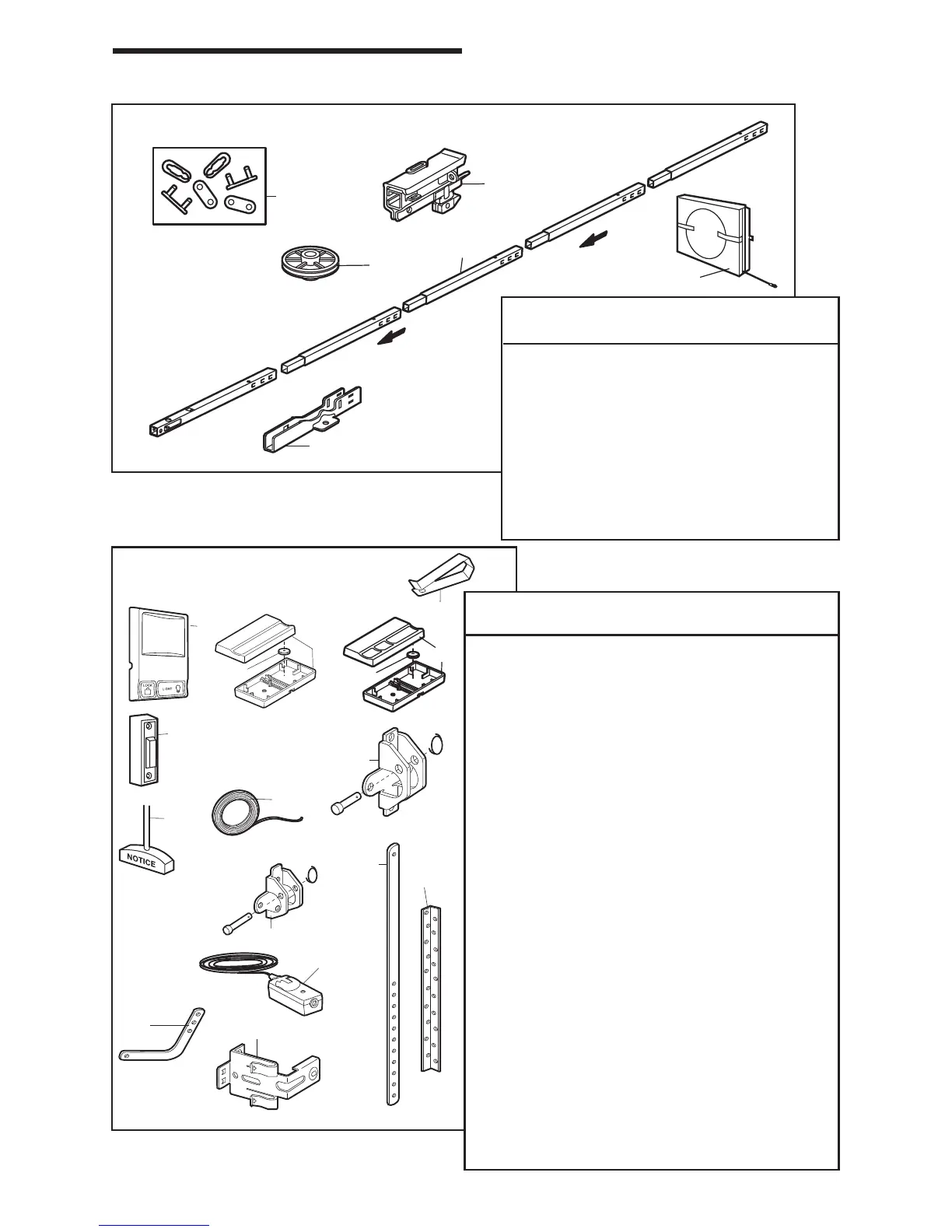

REPAIR PARTS
Rail Assembly Parts
2
1
4
3
5
6
Installation Parts
KEY PART
NO. NO. DESCRIPTION
1 41A5273-14 Multi-function door control panel
2 41A4166 Door control button
3 950CD Single-button remote control
4 10A20 3V2032 lithium battery
5 953CD 3-button remote control
6 29B137 Remote control visor clip
7 41A2828 Emergency release rope and handle
assembly
8 41B5141-1 2-Conductor bell wire, white and
white/red
9 41A5047 Door bracket w/clevis pin and fastener
10 41A5047-2 Header bracket w/clevis pin and
fastener
11 41A5034 Safety reversing sensor kit (receiving
and sending eyes) with 3’ (0.9 m)
2-conductor bell wire
12 178B34 Straight door arm section
13 12B776 Hanging bracket
14 178B35 Curved door arm section
15 041A5266-3 Safety reversing sensor brackets (2)
NOT SHOWN
041A7920-1 Installation hardware bag
(includes hardware listed on page 7)
114A4335 Owner’s manual
2
1
4
4
3
5
6
7
9
10
8
12
13
14 15
11
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41C5141-1 Complete trolley assembly
3 41A5665 Complete rail
4 144C56 Idler pulley
5 41A5807 Chain and cable
6 12D598-1 “U” bracket
NOT SHOWN
183A163 Wear pads
