Chamberlain Power Drive PD210CD - Motor Unit Assembly Parts

38

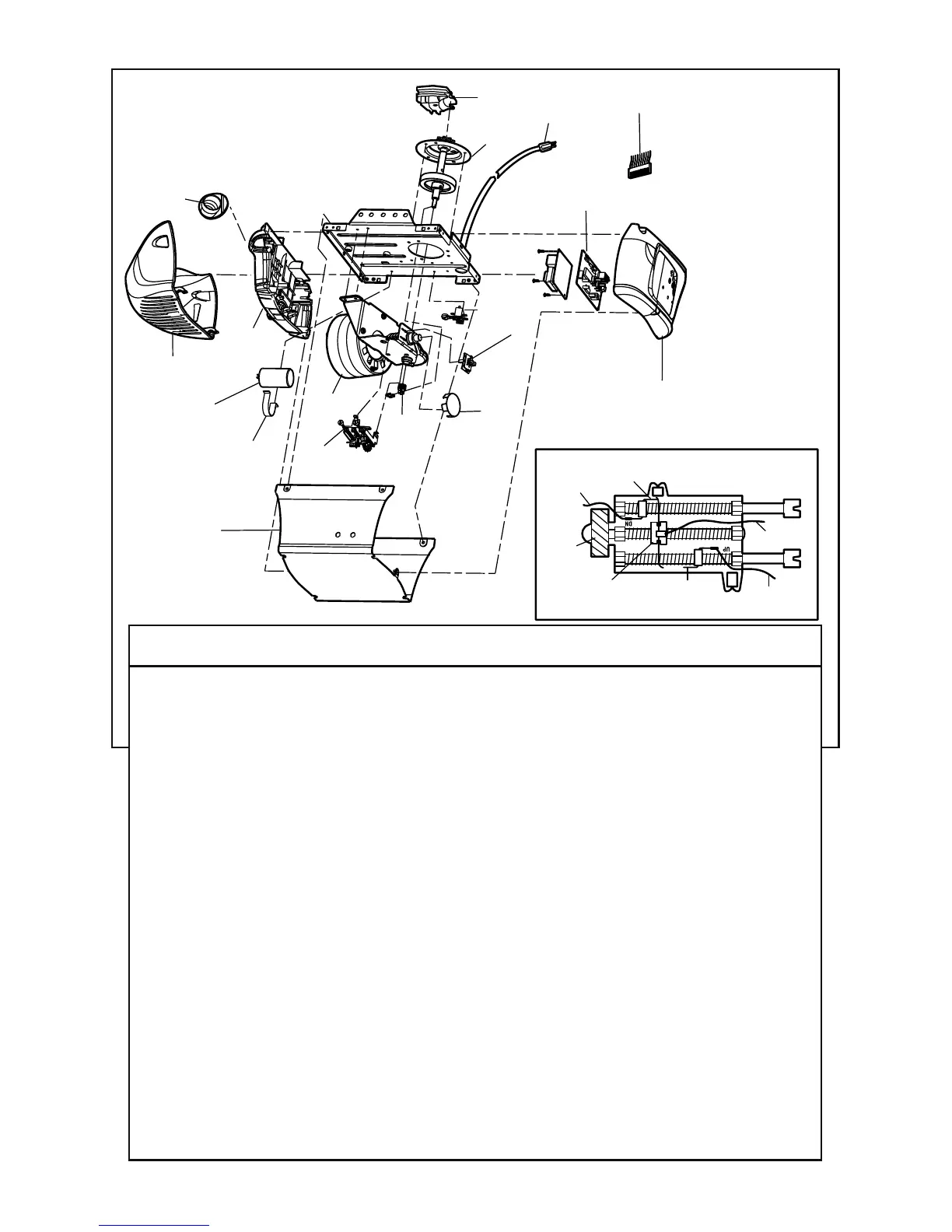

Motor Unit Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 41A5615 Chain Spreader
2 41C4220A Gear and sprocket assembly.
Complete with: Spring washer,
thrust washer, retaining ring,
bearing plate, roll pins (2),
drive gear and worm gear,
helical gear w/retainer and
grease
3 41B4245 Line cord
4 41D181 End panel
(PD210CD, PD210CDV,
PD212CD, LC250 & HD200CD)
41A5484-1 End panel
(PD612CD & LC500)
5 4A1344 Light socket
6 108D79 Lens
7 30B532 Capacitor - 1/2 HP
8 12A373 Capacitor bracket
9 41A3150 Terminal block w/screws
10 41D3058 Universal replacement motor &
bracket assembly.
Complete with: Motor, worm,
bracket, bearing assembly,
RPM sensor
11 41A5525-5 Cover
KEY PART
NO. NO. DESCRIPTION
12 41A2818 Limit switch drive & retainer
13 41D3452 Limit switch assembly
14 41A2822-1 Interrupter cup assembly
15 41C4398A RPM sensor assembly
16 41AC050-1M Receiver logic board assembly
(PD210CD, PD210CDV,
PD212CD, LC250 & HD200CD)
41AC050-2M Receiver logic board assembly
(PD612CD & LC500)
Complete with: Logic board,
end panel, light socket
17 41C5497 High voltage wire harness
41C5498 Low voltage wire harness
18 41A5484-1 End panel
(PD210CD, PD210CDV,
PD212CD, LC250 & HD200CD)
41D180-1 End panel
(PD612CD & LC500)
NOT SHOWN
41A2826 Motor shaft bearing kit
41A2825 Opener assembly hardware kit
(includes screws not designated
by a number in illustration)
2
1
3
4
5
6
8
9
7
11
12
13
14
15
16
17
18
10
LIMIT SWITCH ASSEMBLY
Brown Wire
(Down)
Contact
Grey Wire
Yellow Wire
(Up)
Contact
Center Limit
Contact
Drive
Gear
