D10.D15.DRS15-MANS
Apr ‘19
- 15

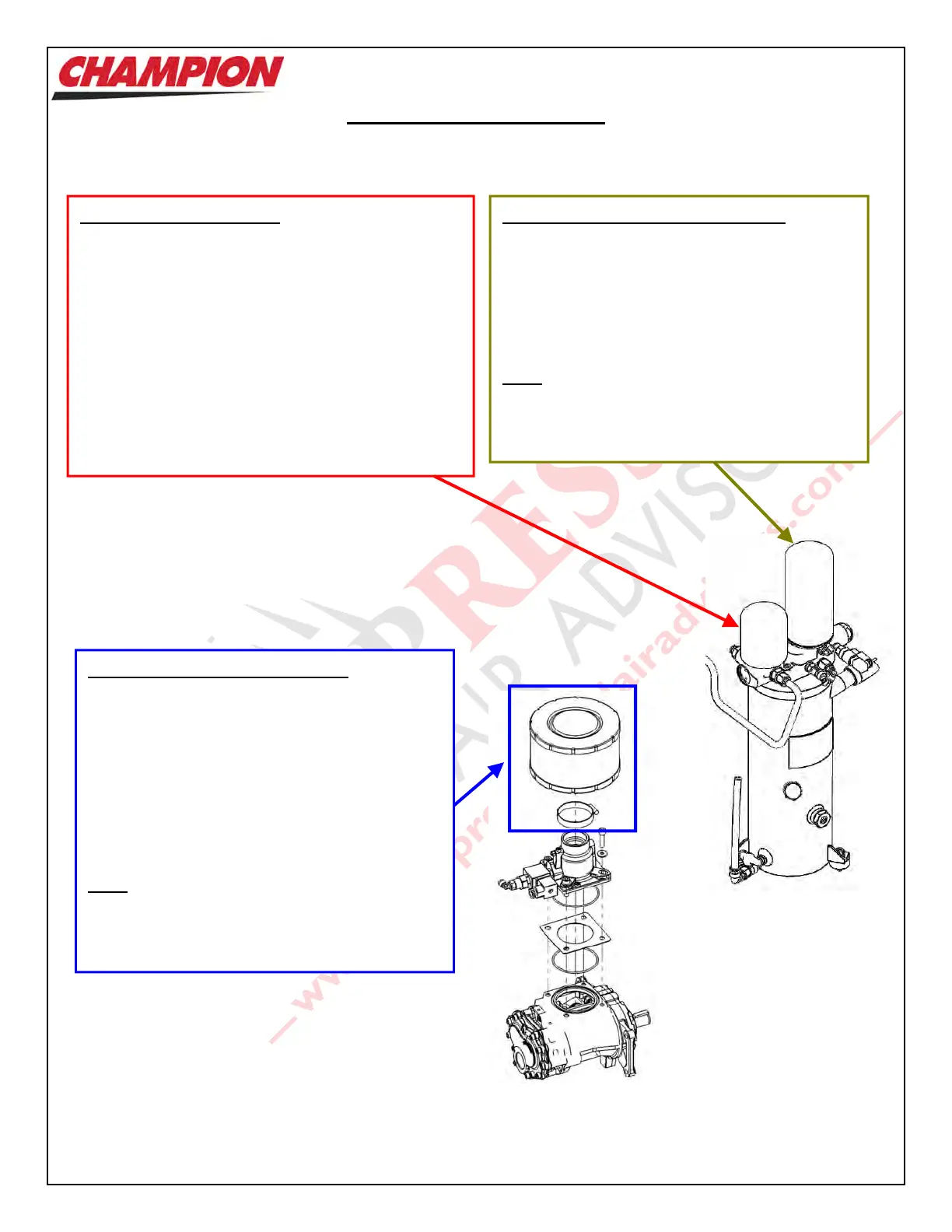

Maintenance Procedures
Changing the Air / Oil Separator
1) If necessary, use a strap wrench to turn the
original Separator counter-clockwise.
2) On the new ‘DSC-302-CH’ Air / Oil Separator,
lubricate the Separator Gasket with
Compressor Oil.
3) Hand tighten the new Air / Oil Separator snug
Note:
Do not over-tighten the Separator Filter on the
Unit, as it may become very difficult to remove at a
later date.
Changing the Oil Filter
The Oil Filter should be changed only after all of the oil
has been drained from the Unit.
1. Ensure that you have a bucket and strap wrench
available.
2. Holding the bucket under the original Oil Filter to
capture any spillage, use the strap wrench to turn
the Oil Filter counter-clockwise. The Oil may still
contain oil, so care must be taken.
3. On the replacement ‘DSC-603-CH’ Oil Filter,
lubricate the Filter Gasket with Compressor Oil.
4. Hand tighten the Oil Filter snug.
Changing the Air Intake Filter
1) Loosen the Filter Clamp at the base of the
Intake Filter.
2) Remove the Air Filter Element from the Unit.
3) Clean the Intake Valve area of any dust or
build-up.
4) Install a new Air Filter (Champion Part Number
‘DSC-001931-CH’), ensure it fits snugly on the
Intake Valve Assembly, and tighten the Filter
Clamp.
Note:
Depending on the quality of the air in the
compressor room, it may be necessary to check
and/or change the Air Filter more often than
indicated on the 'Maintenance Schedule'.
