Maintenance Procedures (cont’d)

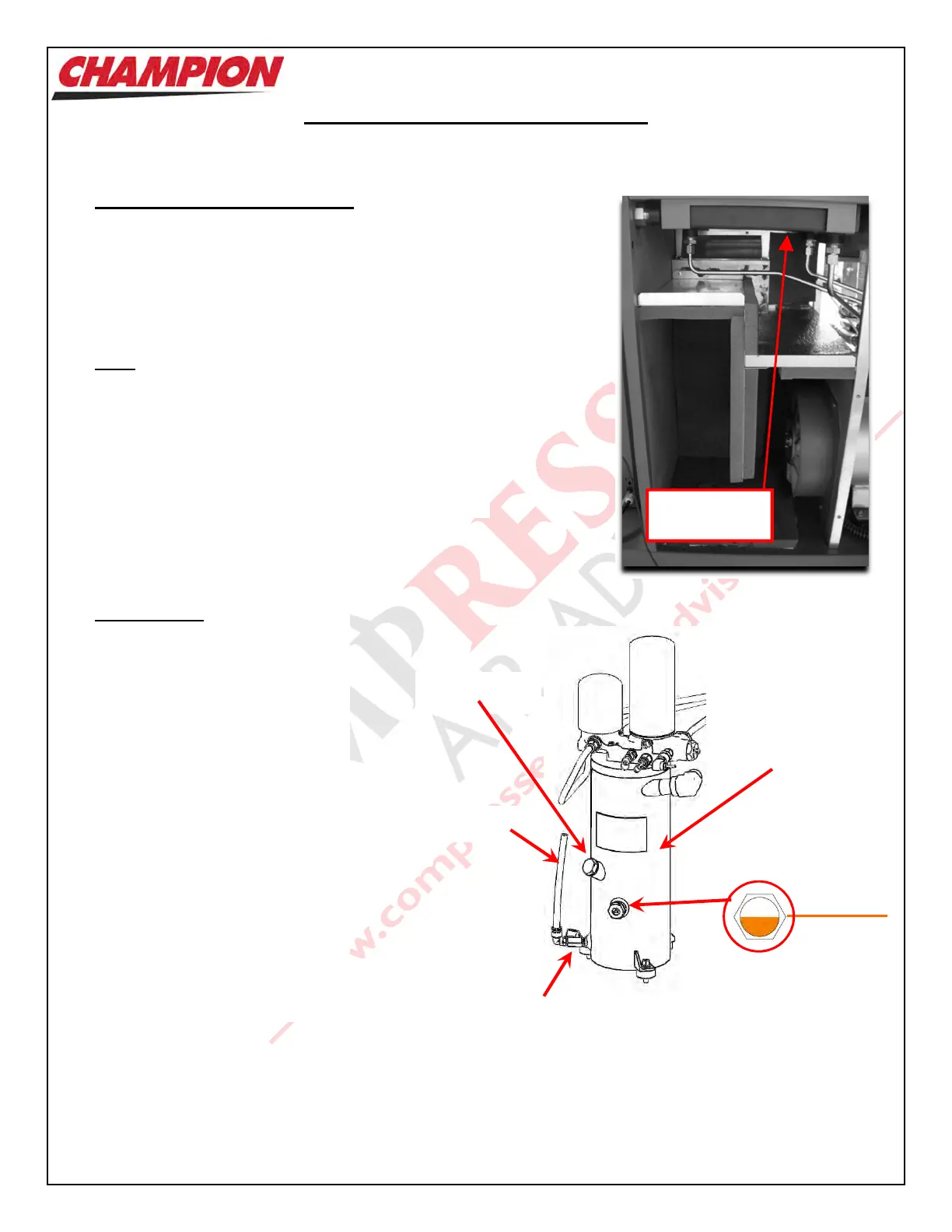

Cleaning the Heat Exchanger
The circulation of air through the Heat Exchanger is
critical to the correct operation of the Unit. Clean the
Heat Exchanger on a regular basis.
1. Remove the Back Panel.
2. Vacuum the Heat Exchanger as necessary.
Note:
When cleaning the Heat Exchanger, do not use sharp
objects or a wire brush. These items could damage the
cooling coils.
Oil Changes
Drain the existing oil by a) turning
th
e Oil Drain Tube downwards and
b) opening the Oil Drain Valve.
(Please be advised that the Unit
cannot be drained fully of oil, as
some oil may remain in various
components ie Cooler, Tubing,
etc.)
Close the Drain Valve and turn the
Drain Tube to face upwards.
Fill the Oil Reservoir to the center
of the Sight Glass, as indicated at
right. Do not under or overfill.
Use only Champion lubricant.
Oil Fill Port
Oil Drain Tube
Oil Drain Valve
Oil Reservoir
Correct
Oil Level
Heat
Exchanger
