24
2
31
4
6
7
8
9
10
11
12
14
14
17
18
20
22
21
19
4
23
13
M4
16
M3
5
M1
M2
15
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 DSC-002703 AIR END 1
2 DSC-001930 INTAKE VALVE 1
3 DSC-001951 SOLENOID VALVE 1
4 DSC-158 PNEUMATIC ELBOW 1/4"BSPP X 6MM 2
5 DSC-380 1/4"BSPP STRAIGHT X 6MM TUBE FITTING 1
6 DSC-482 PNEUMATIC TUBE BLACK 6MM OD 2'
7 DSC-263 1/8" BONDED WASHER 1
8 DSC-677 ORIFICE 1MM 1
9 DSC-001359 ELBOW 1/8"NPT(M) - 1/8"NPT(M) 1
10 DSC-612 INLINE FILTER 1
11 DSC-001358 CHECK VALVE 1/8"NPT(F) 1
12 DSC-175 PNEUMATIC STRAIGHT 1/8" X 6MM 1
13 DSC-382 PNEUMATIC TUBE NATURAL 6MM OD 2'
14 DSC-001217 BONDED WASHER 1/4" BSPP 2
15 DSC-001238 TEMPERATURE SENSOR CSC200300 1
16 DSC-002704 MANIFOLD ASSEMBLY 1
17 DSC-001564 ADAPTER 1/4"BSPPM - 1/4"NPTF 1
18 TIA-5165 SAFETY VALVE 1/4" 165 PSI 1
19 DSC-427 BONDED WASHER 3/8" 1
20 DSC-001568 ADAPTER 1/8"BSPPM - 1/4"BSPPF 1
21 DSC-278 ADAPTER 3/8"BSPM X 1/4"BSPF 1
22 DSC-001237 PRESSURE TRANSDUCER CSC200300 1
23 DSC-001366 PRESS. TRANSD. CABLE CSC200300 0.5'
24 DSC-002868 SOLENOID CABLE ASSY. 1
MAINTENANCE KITS
M1 DSC-002718 SHAFT SEAL KIT
M2 DSC-001950 INTAKE VALVE REPAIR KIT
M3 DSC-111-1 THERMAL VALVE REPAIR KIT
M4 DSC-410 MINIMUM PRESSURE VALVE REPAIR KIT
02/19/19 N.T.S

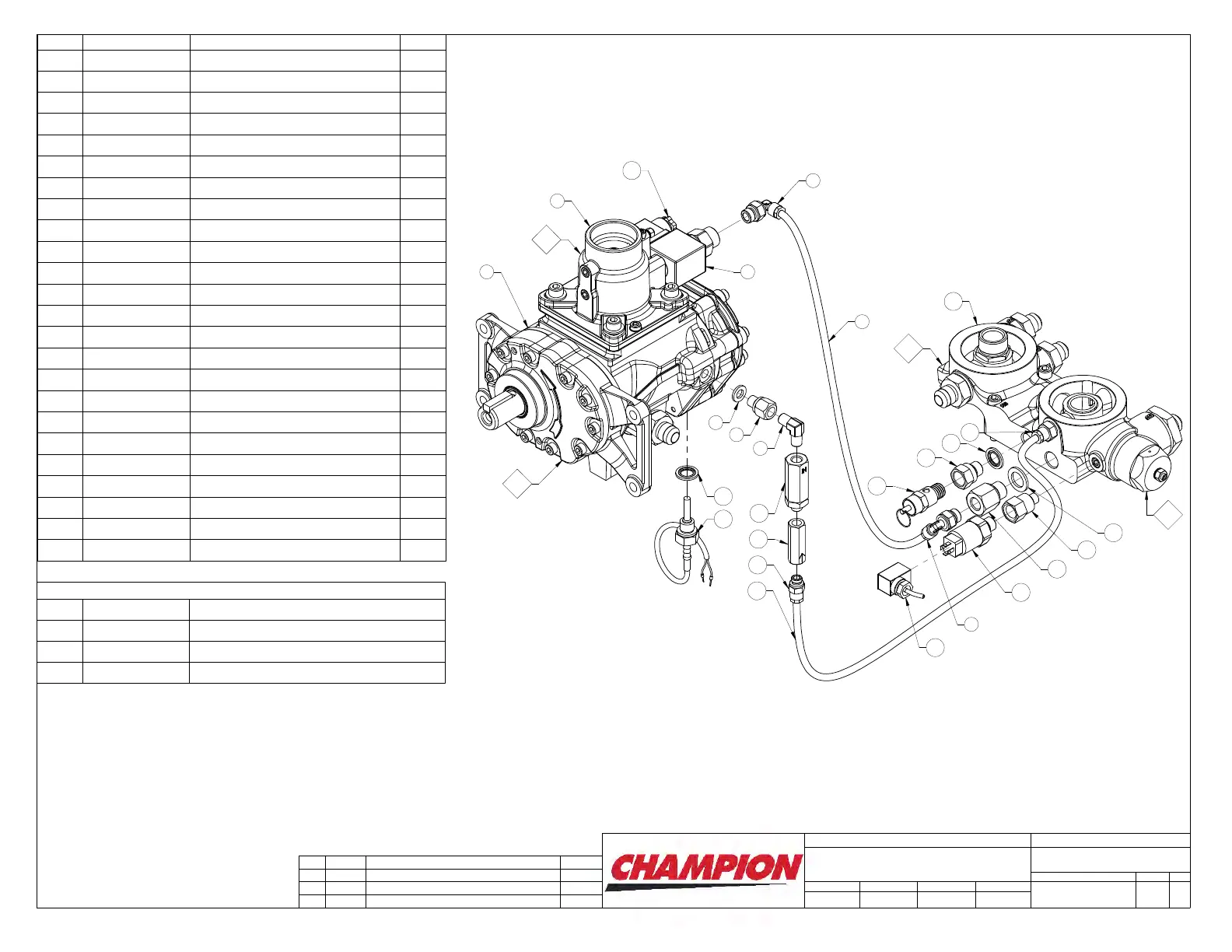

PNEUMATIC COMPONENTS
D1015-PNE
DM
D10-15 SCREW COMPRESSOR
SCALE
DATECHECKED BY
PCN NO.
1/1
LT
REV. DATE
REVISION DESCRIPTION
to change without notice.
DESCRIPTION OF DRAWING
DRAWING NO.
SHT NO
REV.
NAME OF PROJECT
DRAWN BY
IMPORTANT NOTE: This print is the confidential property of
GARDNER DENVER, INC. It is not to be used or reproduced in any
manner, nor submitted to other parties for examination without the
prior approval of GARDNER DENVER, INC. GARDNER DENVER, INC.
is continually trying to improve its products, specifications subject
00
