Chattanooga Intelect Mobile Ultrasound - Applicator Status Symbols

17
Intelect
®
Mobile Ultrasound
Applicator Symbols

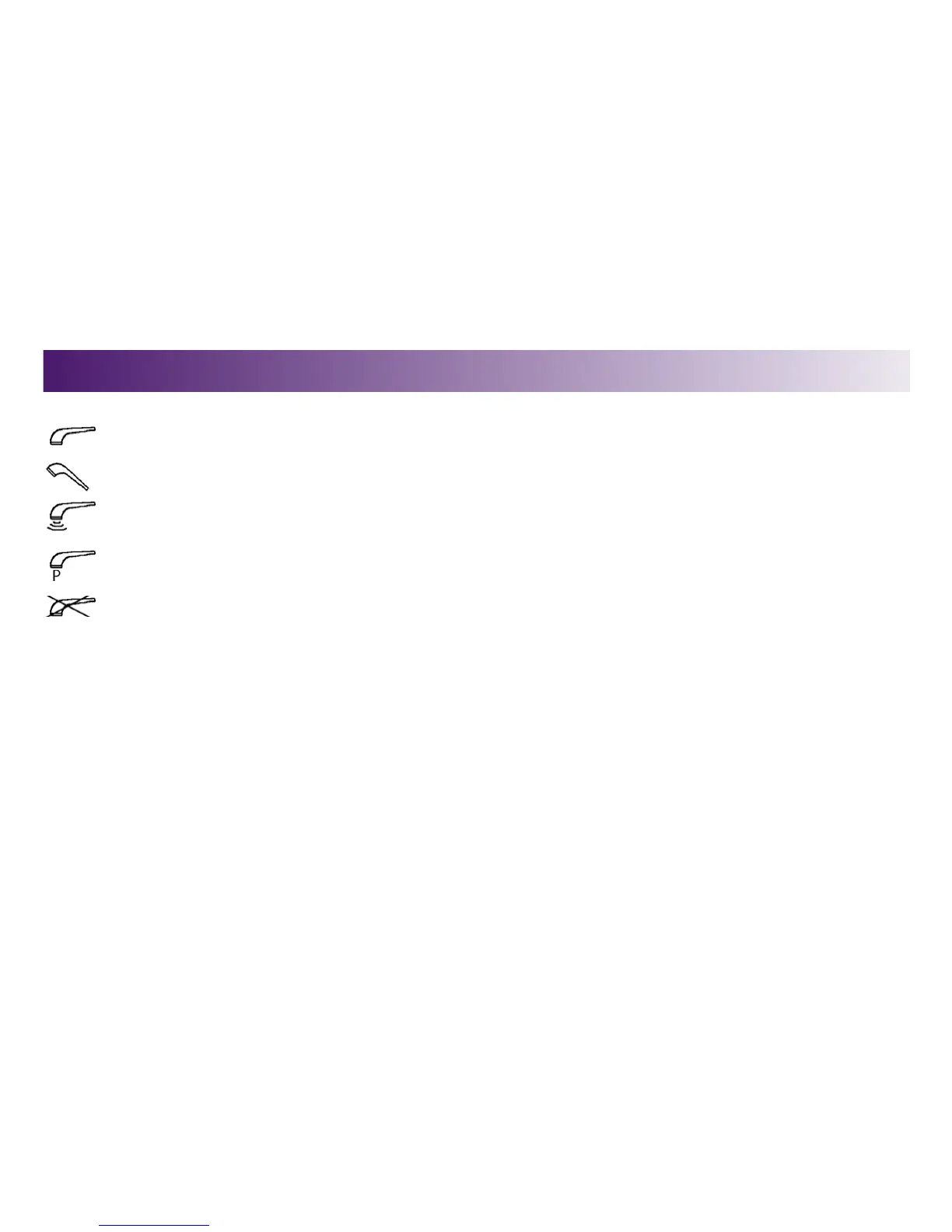

This symbol indicates that although the applicator is plugged in, no ultrasound energy (other than the ultrasound energy
required to warm the sound head) is being emitted from the applicator.
This symbol indicates that therapy has been started, but the sound head has become uncoupled with the patient’s skin.
This symbol indicates that therapy is in progress, the sound head is adequately coupled with the patient’s skin, output is being
distributed to the patient, and the applicator is functioning normally.
This symbol indicates that the Pause button has been pressed, and no output is being emitted from the applicator.
This symbol indicates that the applicator has been unplugged from the unit.
NOMENCLATURE
