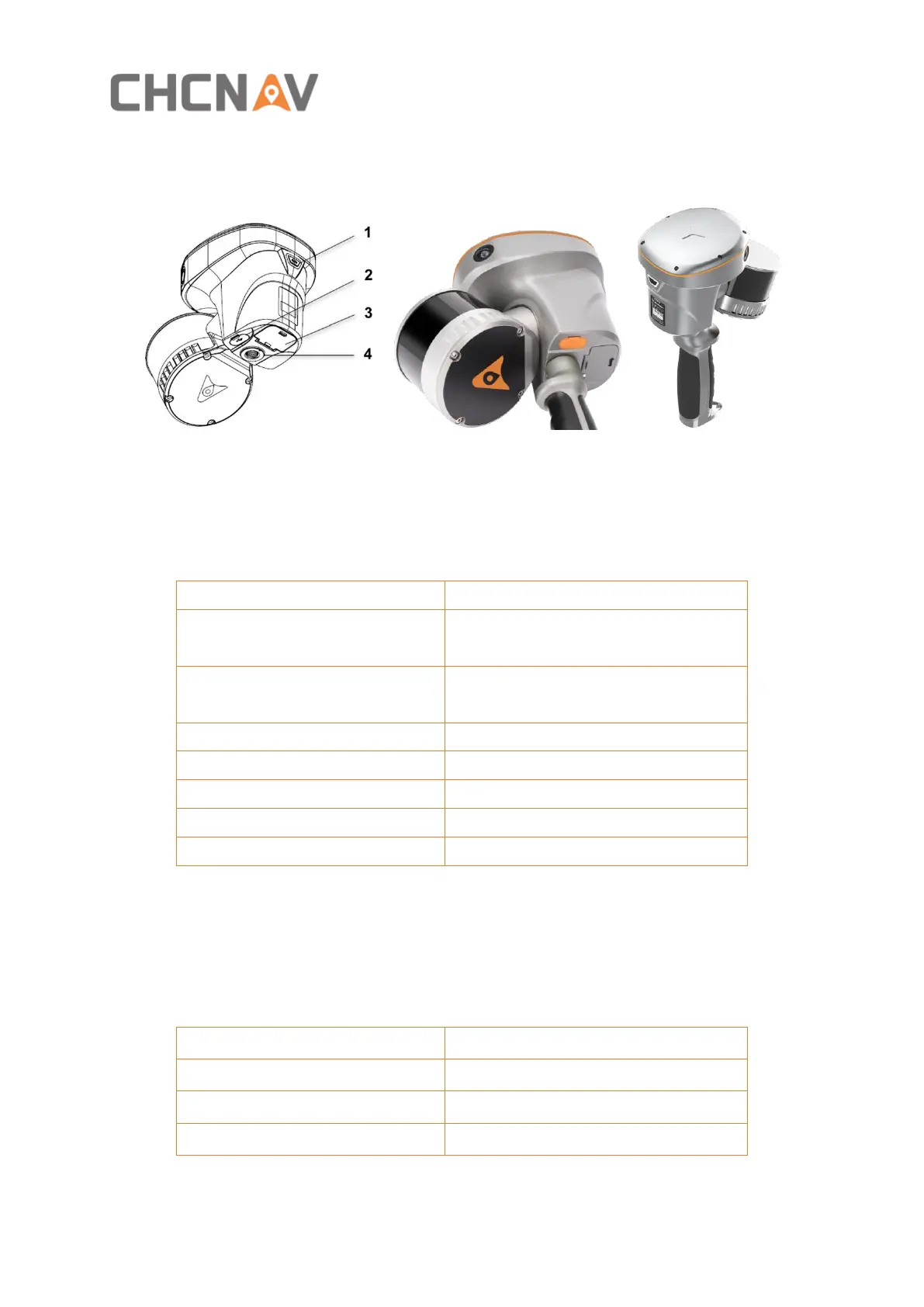

3.3.2 Interface Definition
1. Turn on/off button
2. Type-C port for data copy
3. Battery compartment
4. Handle/ Range pole hole
LED indicator
Device status
red and green lights flash alternately
at 1hz frequency
FW Upgrading…
device automatically restarts after
green light are steady on
FW Upgraded successfully
the green light flashing rapidly at 2Hz
Device diagnostics
green light is steady on
Device ready
green light blinks at 0.5hz
Collecting…
red light is steady on
Error
red light blinks every 5 seconds
Low battery
3.4 Power Supply and Physical Characteristics
Input voltage
9-20V DC
Power consumption
< 30W
Operating temperature
-20 °C to +50 °C
Storage temperature
-20 °C to +60 °C
