UTM-1 Getting Started Guide | 31
Chapter 3
UTM-1 Hardware
In This Chapter
UTM-1 130 Ports 31
LEDs on the UTM-1 130 32
LEDs on all other UTM-1 Models 33
Managing UTM-1 Using the LCD Panel 33
This chapter contains information relating to the UTM-1 appliance LEDs, ports and LCD panel.

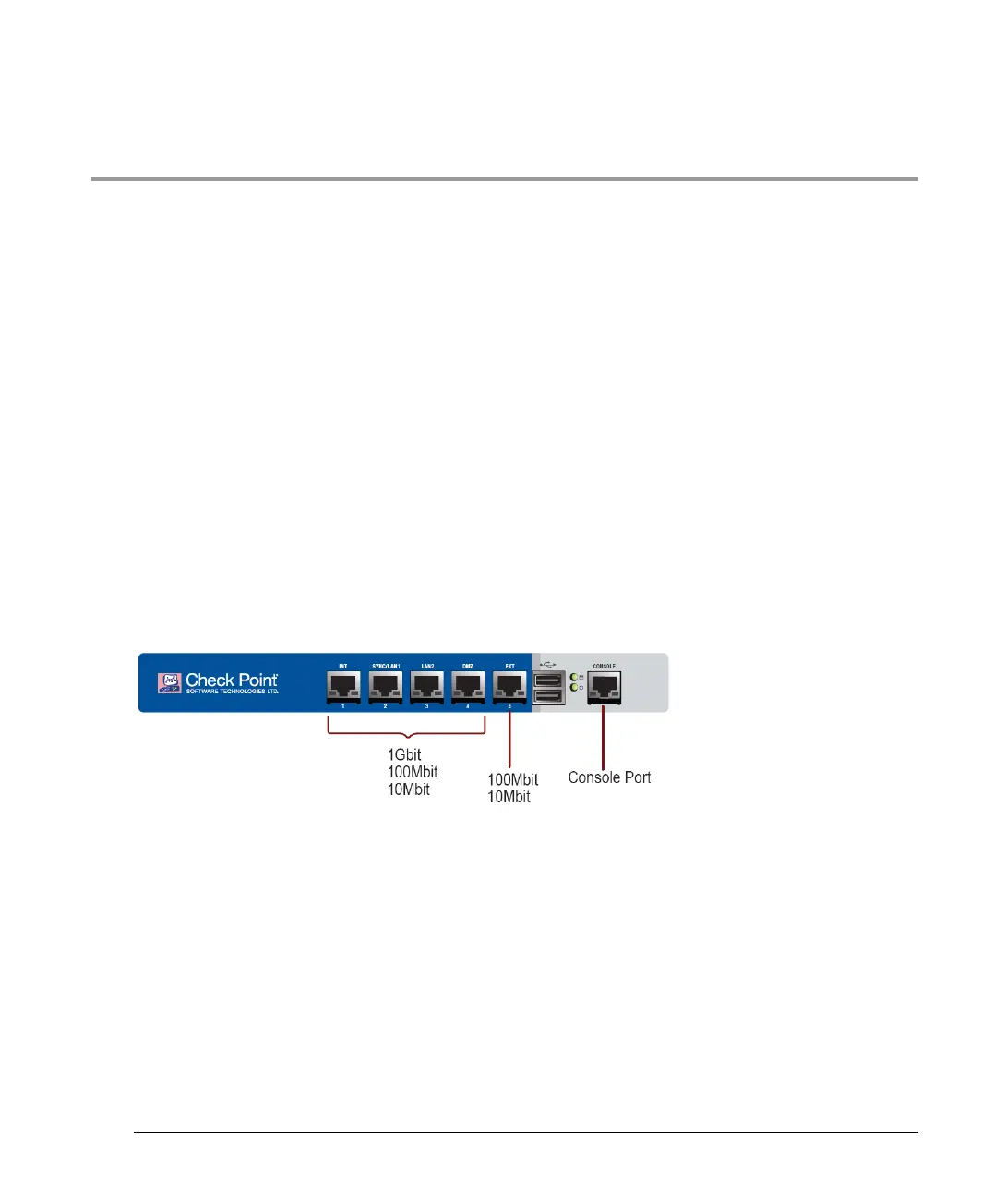

UTM-1 130 Ports
At the front of the appliance, UTM-1 130 has the following ports:
1 Gigabit Ethernet ports
The INT, SYNC/LAN1,LAN2 and DMZ ports support:
1Gbit, 100Mbit and 10Mbit speeds.
Auto MDI-X, to automatically detect the required cable connection type (straight-
through or crossover) and configure the connection appropriately.
100 Megabit Ethernet port
The EXT port supports 100Mbit and 10Mbit speed, but does not support the Auto MDI-
X standard.
When connecting this port, use the appropriate cable type: straight-through or
crossover.
