2. System Components Installation and Removal
SR301 Plus supports up to 4 x 3.5” hot-swap SAS/SATA HDD. Support for different storage and peripheral options will vary depending
on the system model and/or available accessory options installed.
2-1 Side Cover Installation

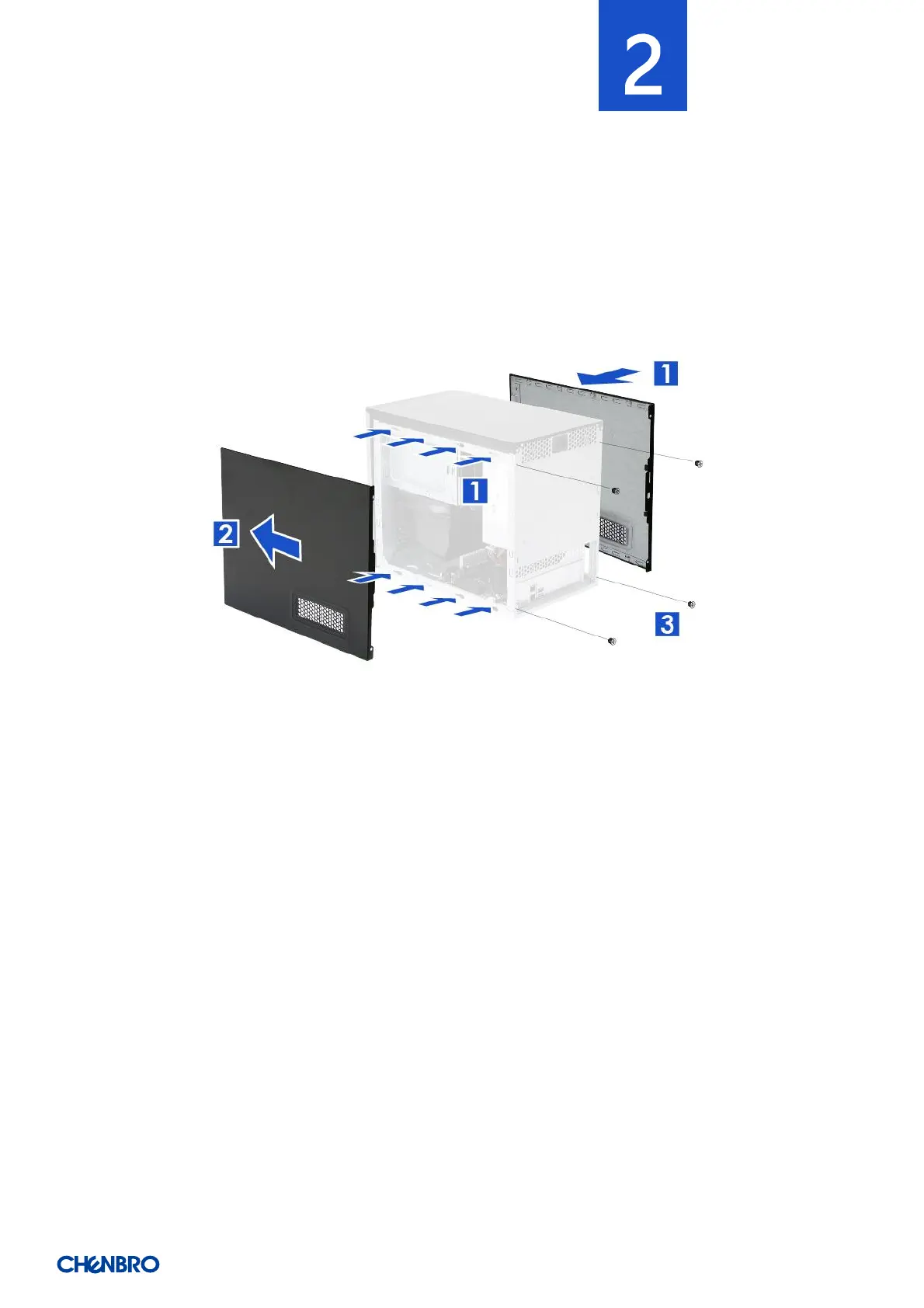

Figure 9 Side cover installation
1. Align eight latches on the top & bottom of each cover with eight grooves on both sides of the chassis as shown.
2. Slide the cover toward the front panel.
3. Secure each cover with two thumb screws as shown.
