SR301 Plus Series
│ 17
2-3 HDD Tray Installation & Removal

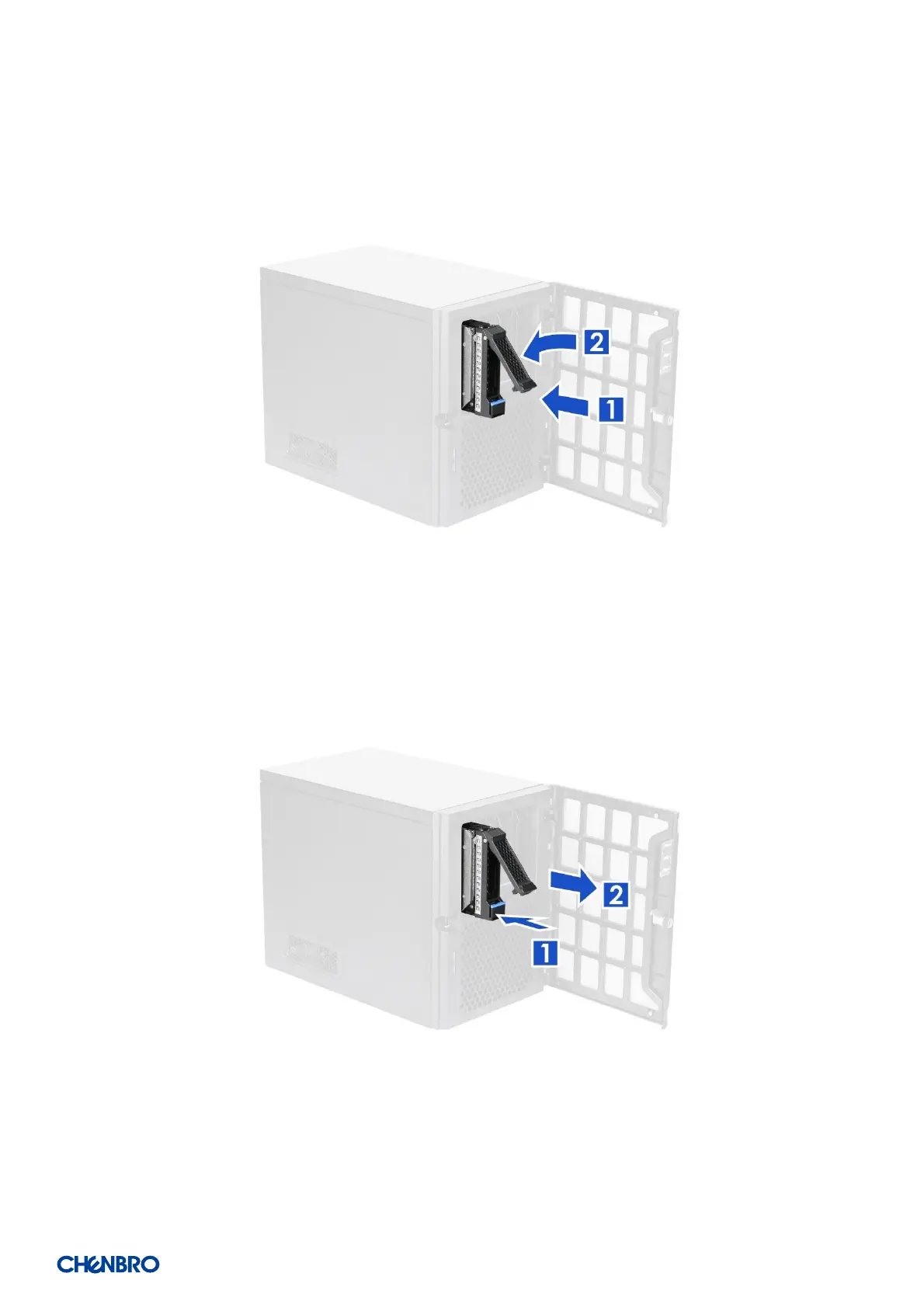

Figure 12 3.5” Hot-swap HDD tray installation
1. Insert the HDD tray into the cage as shown.
2. Push down the lever to secure the HDD tray.
Figure 13 3.5” Hot-swap HDD tray removal
1. Press the tray button to release the tray.
2. Pull the lever to remove the tray from the HDD cage.
