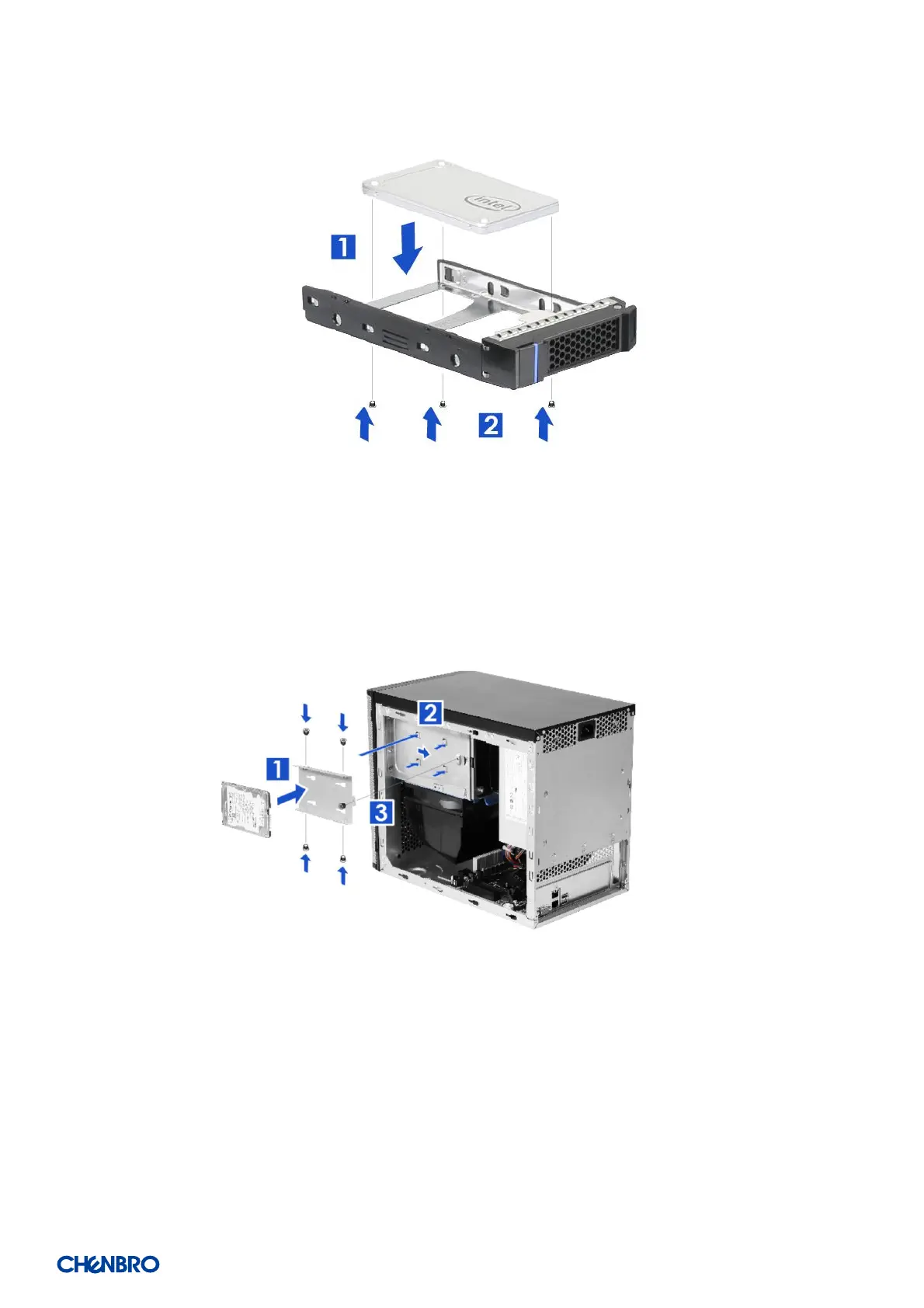

Figure 14 2.5” HDD/SSD installation (screw type)

1. Align the front of the HDD/SSD with the anchor point on the tray.

2. Secure 2.5” HDD/SSD with the tray by three screws from the tray bottom.

NOTE: Dedicated screw type is required for 2.5” HDD/SSD Installation, Chenbro P/N: 384-14602-3143A0.

Figure 15 Side 2.5” HDD/SSD installation (screw type)

1. Align the 2.5” HDD/SSD with the anchor point on the tray and secure the HDD/SSD by four designated screws.

2. Place the HDD/SSD assembly on the side of the storage cage as shown, and slide toward the rear of chassis.

3. Secure the screw on the storage cage to engage the HDD/SSD assembly.
