SR301 Plus Series
│ 18

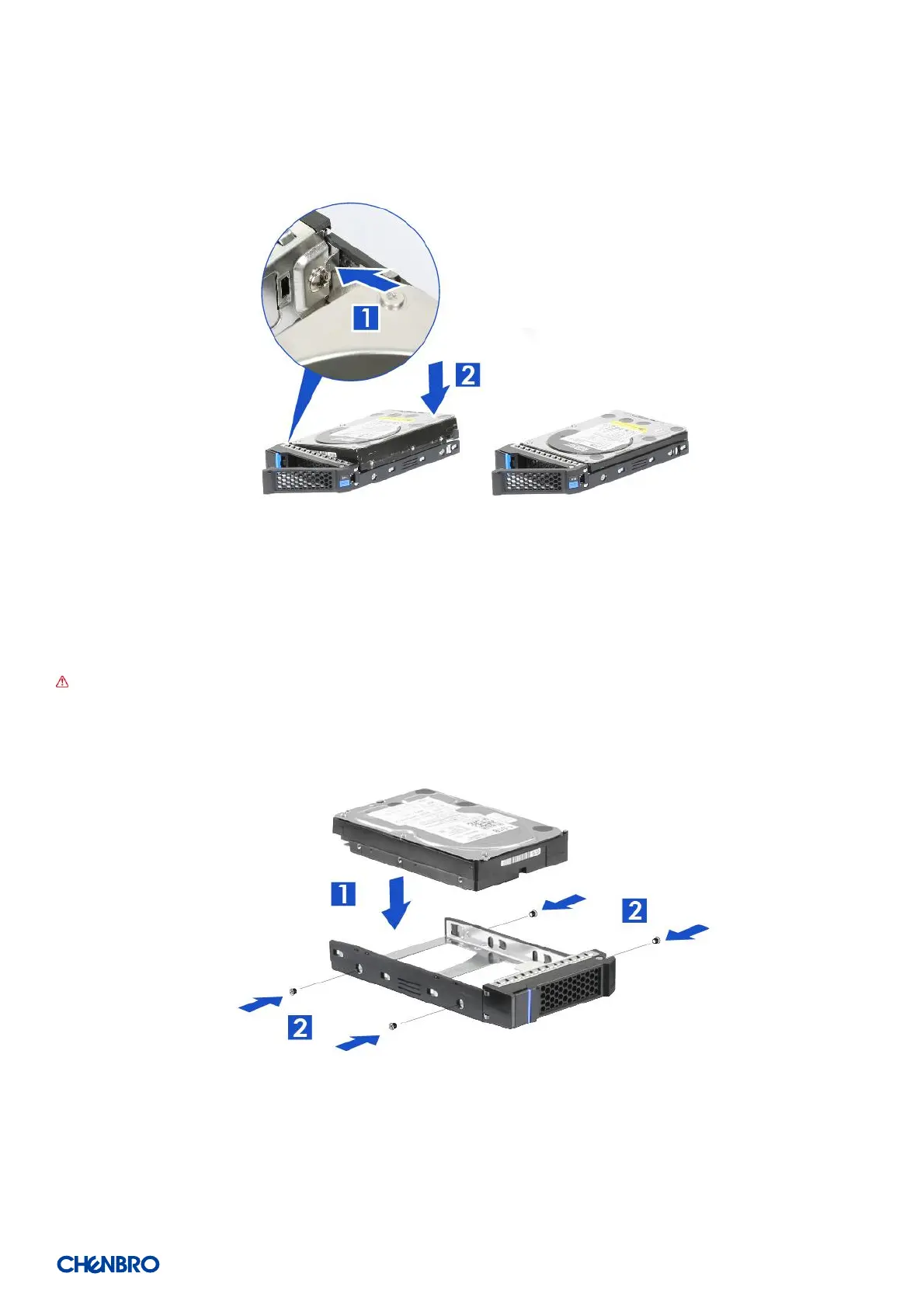

Figure 12 3.5” HDD installation (tool-less type)
1. Engage two embossed pins with the side dimples on the HDD as shown.
2. Carefully push down the other side of the HDD until another two embossed pins and side dimples lock into place.
NOTE: Due to degraded performance and reliability concerns, the use of the 3.5” drive tray as a 2.5” drive tray is intended to
support SSD type storage devices only. Installing a 2.5” hard disk drive into the 3.5” drive tray cannot be supported.
Figure 13 3.5” HDD installation (screw type)
1. Align the front of the HDD with the anchor point on the tray.
2. Secure 3.5” HDD with the tray by four screws as shown.
