2-4 HDD Fan (below Storage Cage) Maintenance

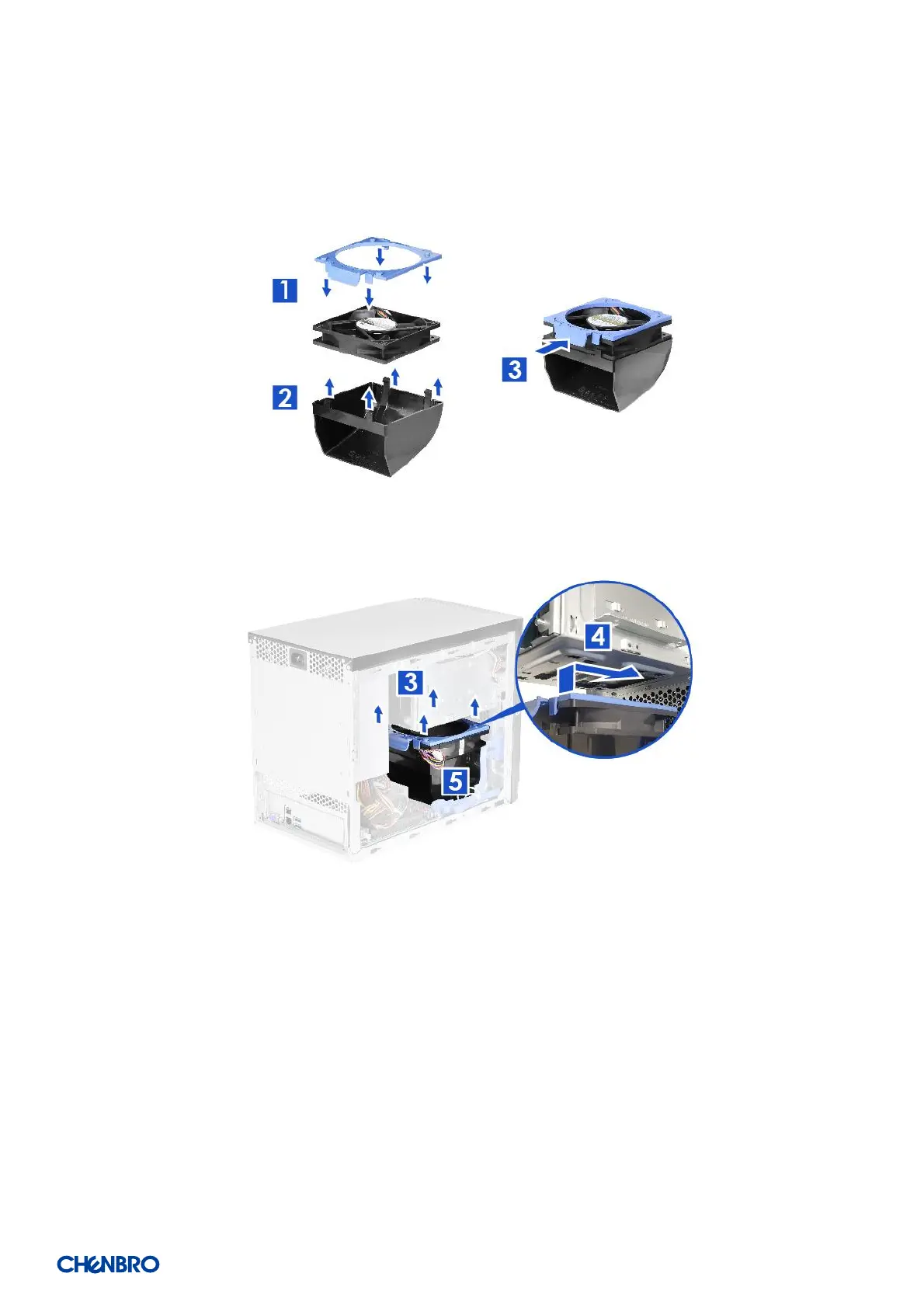

Figure 16 HDD fan installation (fan assembly)
Figure 17 HDD fan installation (chassis)
1. Attach the fan with the tool-less fan holder as a fan module.
2. Attach the fan module with the tool-less air duct as a fan assembly.
3. Align the four hooks on the fan holder with four holes on the storage cage as shown.
4. Push the fan assembly toward the front panel until it is locked into place.
5. Plug the fan power connector in the backplane.
