Chery A11 2003 - Page 109

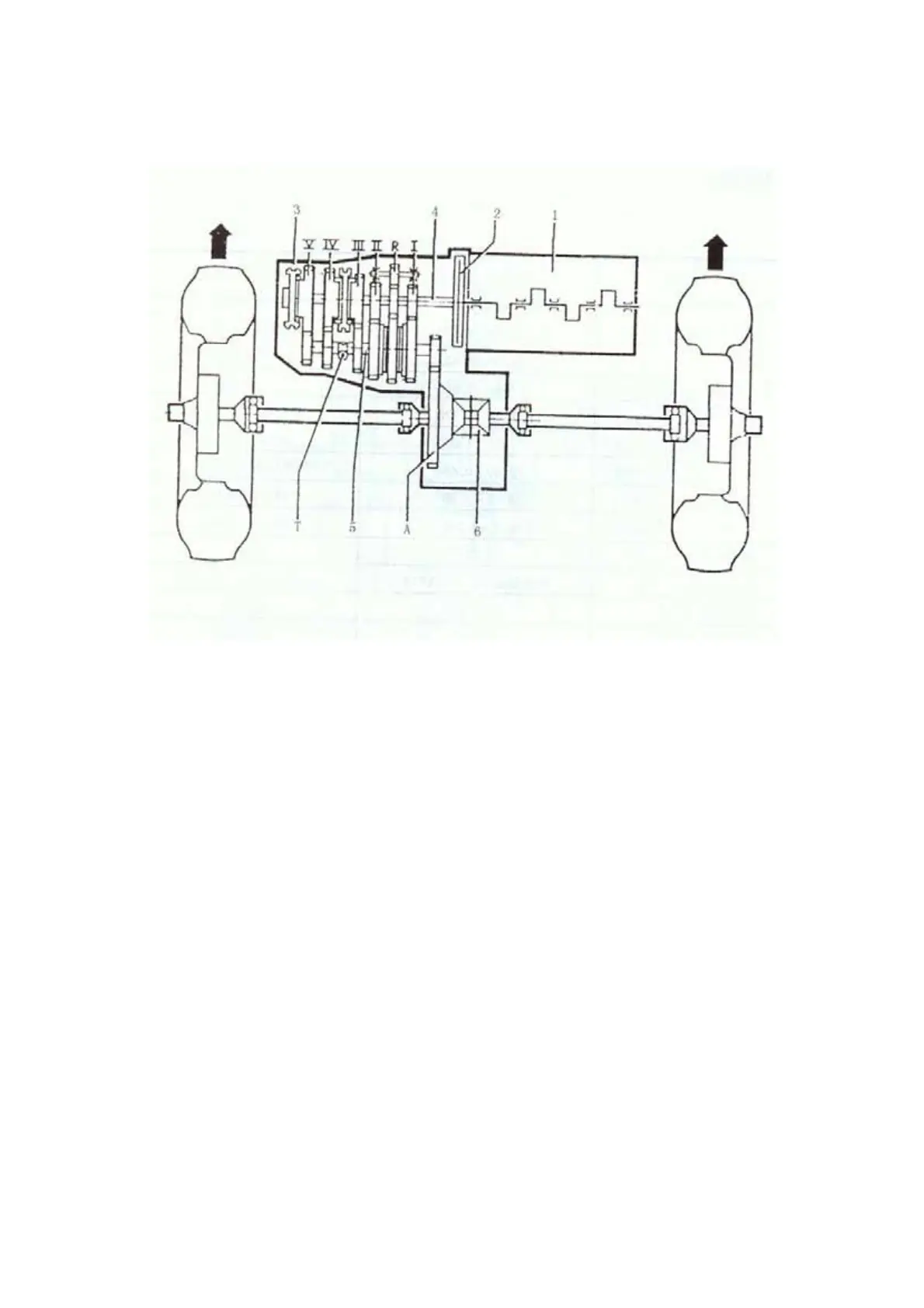

Sketch of Transmission System
Name:
1. Engine 2. Clutch 3.Transmission 4. Input shaft 5. Output shaft 6. Differential gear
Transmission Ratio:
I-gear 1 II-gear2 III-gear 3 IV-gear 4 V-gear 5 R-reverse gear
A. Master drive T. transmission of speedometer
·The arrow in the above drawing indicates running direction of the car
3
