9. ELECTRICAL CIRCUIT

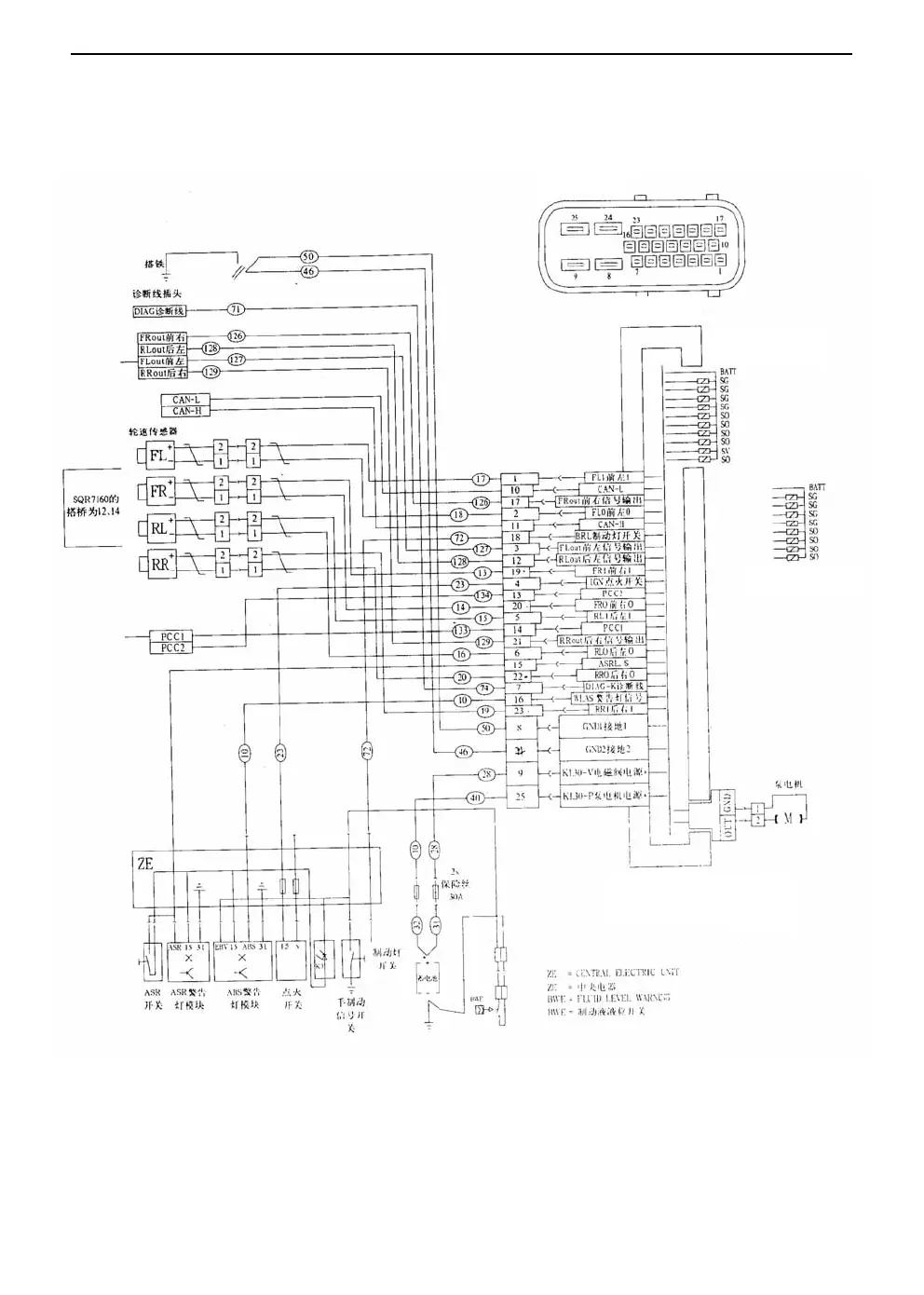

MK20-I/EABS，EDS And ASR Electrical Circuit
PIN
ECU
Valve coil(EDS)
Onl
y
for ABS
Pin 8,9,21,25:4.8mm width
Other pins:1.5mm width
9
Chery SQR7160 series sedan ABS system－fault diagnostic and repairing
